SDO HMI 2014-01-12 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 336.55 | 1829.07 | 306.97 | 1644.28 | -9.82 | 100.16 | 56.65 | 260.89 | 0.8327 | 345.3 | 171.5 | |
|
previous
or next observation for the same group /

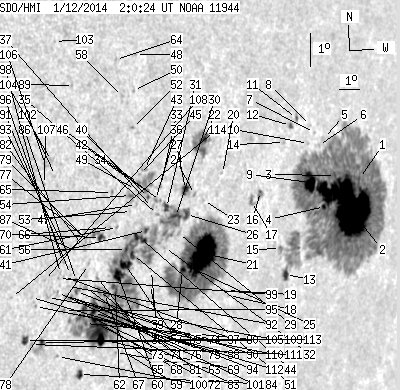

back to the solar disc SDO HMI 2014-01-12 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 902.90 | 1.23 | 908.63 | -8.05 | 105.26 | 61.75 | 263.14 | 0.8805 | 1.1 | 230.8 | |
| 155.61 | -1.00 | 158.81 | -1.00 | -8.89 | 104.74 | 61.22 | 262.19 | 0.8761 | 706.8 | 999999 | |
| 1.02 | -1.00 | 1.01 | -1.00 | -8.05 | 103.78 | 60.26 | 263.14 | 0.8680 | 648.8 | 999999 | |
| 2.04 | -1.00 | 1.99 | -1.00 | -9.00 | 103.36 | 59.85 | 262.05 | 0.8644 | 777.8 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.96 | -7.01 | 102.83 | 59.31 | 264.36 | 0.8598 | 218.0 | 223.0 | |
| 0.00 | 1.53 | 0.00 | 1.46 | -7.24 | 102.58 | 59.07 | 264.10 | 0.8575 | 313.0 | 366.4 | |
| 0.00 | 0.76 | 0.00 | 0.73 | -6.87 | 102.27 | 58.76 | 264.54 | 0.8548 | 394.0 | 390.0 | |
| 0.00 | 0.59 | 0.00 | 0.56 | -6.68 | 102.01 | 58.49 | 264.77 | 0.8524 | 422.0 | 422.4 | |
| 16.32 | -1.00 | 15.49 | -1.00 | -8.35 | 102.31 | 58.80 | 262.80 | 0.8551 | 972.2 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.88 | -7.21 | 102.00 | 58.48 | 264.14 | 0.8523 | 509.0 | 434.2 | |
| 0.93 | 2.55 | 0.86 | 2.35 | -6.52 | 101.18 | 57.67 | 264.97 | 0.8449 | 422.4 | 345.3 | |
| 1.44 | 2.55 | 1.32 | 2.33 | -6.75 | 100.89 | 57.38 | 264.70 | 0.8422 | 687.8 | 621.5 | |
| 4.25 | -1.00 | 3.97 | -1.00 | -11.14 | 101.70 | 58.19 | 259.51 | 0.8501 | -478.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.23 | -7.27 | 100.66 | 57.14 | 264.09 | 0.8399 | 648.0 | 491.6 | |
| 1.61 | -1.00 | 1.49 | -1.00 | -10.39 | 101.19 | 57.68 | 260.38 | 0.8452 | 365.5 | 999999 | |
| 0.68 | 4.50 | 0.60 | 3.98 | -8.78 | 99.67 | 56.16 | 262.26 | 0.8306 | 535.1 | 473.6 | |
| 1.53 | 4.93 | 1.34 | 4.32 | -9.11 | 99.26 | 55.75 | 261.86 | 0.8267 | 680.1 | 585.7 | |
| 0.00 | 1.02 | 0.00 | 0.88 | -11.94 | 98.80 | 55.29 | 258.40 | 0.8232 | 226.0 | 174.8 | |
| 0.00 | 0.59 | 0.00 | 0.51 | -11.80 | 98.65 | 55.14 | 258.56 | 0.8217 | 371.0 | 363.6 | |
| 0.00 | 0.85 | 0.00 | 0.71 | -8.37 | 97.59 | 54.07 | 262.73 | 0.8099 | -400.0 | -352.4 | |
| 48.53 | 307.57 | 40.46 | 255.62 | -10.78 | 97.17 | 53.66 | 259.73 | 0.8064 | 876.2 | 280.0 | |
| 4.84 | 31.53 | 3.96 | 25.74 | -7.43 | 96.46 | 52.94 | 263.89 | 0.7981 | 758.7 | 447.5 | |
| 0.00 | 1.10 | 0.00 | 0.91 | -9.22 | 96.80 | 53.29 | 261.65 | 0.8021 | 498.0 | 388.3 | |
| 0.00 | 1.53 | 0.00 | 1.25 | -9.07 | 96.32 | 52.81 | 261.82 | 0.7970 | 588.0 | 453.9 | |
| 1.36 | -21.00 | 1.12 | -21.00 | -11.23 | 96.63 | 53.12 | 259.13 | 0.8012 | 941.4 | 999999 | |
| 3.82 | 52.78 | 3.10 | 42.25 | -9.68 | 96.06 | 52.54 | 261.04 | 0.7944 | 723.6 | 508.6 | |
| 4.59 | 9.26 | 3.70 | 7.49 | -8.95 | 95.85 | 52.34 | 261.96 | 0.7920 | -622.6 | -249.4 | |
| 2.55 | -21.00 | 2.08 | -21.00 | -11.31 | 96.25 | 52.74 | 259.00 | 0.7973 | 876.6 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.65 | -10.26 | 95.79 | 52.28 | 260.30 | 0.7919 | 222.0 | 255.5 | |
| 4.16 | -26.00 | 3.34 | -26.00 | -9.77 | 95.53 | 52.02 | 260.91 | 0.7890 | 829.0 | 999999 | |
| 3.31 | -26.00 | 2.63 | -26.00 | -9.53 | 95.05 | 51.53 | 261.19 | 0.7837 | -443.6 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.41 | -10.71 | 95.21 | 51.70 | 259.69 | 0.7861 | 533.0 | 442.8 | |
| 0.00 | 1.10 | 0.00 | 0.87 | -8.93 | 94.64 | 51.12 | 261.94 | 0.7790 | -371.0 | -273.1 | |
| 0.00 | 0.93 | 0.00 | 0.74 | -9.34 | 94.72 | 51.20 | 261.42 | 0.7801 | -415.0 | -356.9 | |
| 0.00 | 1.10 | 0.00 | 0.87 | -9.76 | 94.66 | 51.15 | 260.87 | 0.7796 | -419.0 | -327.6 | |
| 0.00 | 2.29 | 0.00 | 1.80 | -9.32 | 94.48 | 50.96 | 261.43 | 0.7774 | -550.0 | -495.8 | |
| 0.00 | 1.95 | 0.00 | 1.53 | -9.57 | 94.38 | 50.87 | 261.11 | 0.7765 | -683.0 | -561.7 | |
| 0.00 | 0.93 | 0.00 | 0.74 | -11.43 | 94.76 | 51.24 | 258.74 | 0.7817 | -230.0 | -133.5 | |
| 0.00 | 0.85 | 0.00 | 0.67 | -11.84 | 94.82 | 51.30 | 258.22 | 0.7826 | 390.0 | 370.9 | |
| 0.76 | 20.99 | 0.60 | 16.27 | -9.28 | 94.13 | 50.62 | 261.46 | 0.7737 | -648.4 | -212.0 | |
| 1.78 | 366.38 | 1.39 | 281.40 | -10.26 | 94.24 | 50.73 | 260.20 | 0.7754 | -687.9 | 2.3 | |
| 1.19 | -40.00 | 0.92 | -40.00 | -9.08 | 94.00 | 50.49 | 261.72 | 0.7722 | -643.8 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.77 | -8.47 | 93.79 | 50.28 | 262.51 | 0.7697 | -120.0 | -103.1 | |
| 6.80 | -41.00 | 5.28 | -41.00 | -10.51 | 94.01 | 50.50 | 259.86 | 0.7730 | -43.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -8.63 | 93.59 | 50.07 | 262.29 | 0.7674 | -536.0 | -434.0 | |
| 1.27 | -40.00 | 0.98 | -40.00 | -8.90 | 93.59 | 50.08 | 261.94 | 0.7676 | -618.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.92 | -9.52 | 93.62 | 50.10 | 261.13 | 0.7681 | -537.0 | -529.0 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -5.11 | 92.91 | 49.39 | 266.91 | 0.7596 | -483.0 | -428.5 | |
| 0.00 | 0.25 | 0.00 | 0.20 | -9.08 | 93.48 | 49.97 | 261.69 | 0.7665 | -403.0 | -346.0 | |
| 0.00 | 1.19 | 0.00 | 0.90 | -6.17 | 92.94 | 49.42 | 265.50 | 0.7598 | -444.0 | -418.3 | |
| 3.06 | -41.00 | 2.37 | -41.00 | -11.00 | 93.75 | 50.24 | 259.21 | 0.7705 | -592.0 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.78 | -7.26 | 93.04 | 49.53 | 264.07 | 0.7610 | -598.0 | -563.1 | |
| 0.00 | 0.59 | 0.00 | 0.46 | -9.74 | 93.43 | 49.91 | 260.83 | 0.7661 | -498.0 | -453.1 | |
| 0.76 | 6.46 | 0.59 | 4.94 | -9.27 | 93.29 | 49.77 | 261.44 | 0.7644 | -736.1 | -475.4 | |
| 0.00 | 0.59 | 0.00 | 0.47 | -13.64 | 94.26 | 50.74 | 255.85 | 0.7783 | 646.0 | 573.6 | |
| 1.61 | -41.00 | 1.24 | -41.00 | -10.87 | 93.44 | 49.92 | 259.35 | 0.7669 | -369.3 | 999999 | |
| 8.33 | -41.00 | 6.41 | -41.00 | -11.32 | 93.49 | 49.98 | 258.78 | 0.7679 | -753.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.15 | -6.38 | 92.46 | 48.95 | 265.24 | 0.7544 | -547.0 | -484.6 | |
| 0.00 | 1.10 | 0.00 | 0.86 | -13.90 | 94.04 | 50.53 | 255.50 | 0.7763 | 627.0 | 536.8 | |
| 8.84 | -41.00 | 6.77 | -41.00 | -11.66 | 93.25 | 49.73 | 258.31 | 0.7655 | -773.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.10 | -10.25 | 92.88 | 49.37 | 260.13 | 0.7604 | -389.0 | -327.2 | |
| 4.84 | -41.00 | 3.71 | -41.00 | -12.08 | 93.21 | 49.70 | 257.75 | 0.7654 | -488.7 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.66 | -13.94 | 93.72 | 50.21 | 255.39 | 0.7730 | 650.0 | 595.4 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -5.31 | 92.02 | 48.51 | 266.67 | 0.7494 | -376.0 | -414.9 | |
| 0.00 | 1.44 | 0.00 | 1.09 | -9.23 | 92.45 | 48.94 | 261.45 | 0.7549 | -722.0 | -652.9 | |
| 0.00 | 0.93 | 0.00 | 0.71 | -10.26 | 92.56 | 49.05 | 260.08 | 0.7568 | -509.0 | -333.5 | |
| 1.19 | -41.00 | 0.90 | -41.00 | -12.23 | 92.73 | 49.22 | 257.51 | 0.7603 | -419.4 | 999999 | |
| 2.46 | -41.00 | 1.88 | -41.00 | -13.15 | 92.84 | 49.32 | 256.31 | 0.7624 | -209.2 | 999999 | |
| 6.63 | -41.00 | 5.07 | -41.00 | -13.60 | 92.91 | 49.40 | 255.73 | 0.7638 | 856.2 | 999999 | |
| 2.89 | 9.52 | 2.17 | 7.12 | -10.58 | 92.17 | 48.66 | 259.63 | 0.7526 | -641.6 | -576.5 | |
| 1.19 | -41.00 | 0.90 | -41.00 | -12.15 | 92.44 | 48.92 | 257.57 | 0.7570 | -580.4 | 999999 | |
| 0.76 | -41.00 | 0.58 | -41.00 | -13.16 | 92.65 | 49.14 | 256.27 | 0.7604 | -165.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.15 | -11.77 | 92.30 | 48.79 | 258.06 | 0.7551 | -403.0 | -323.4 | |
| 2.97 | -41.00 | 2.25 | -41.00 | -13.02 | 92.48 | 48.96 | 256.43 | 0.7583 | -346.7 | 999999 | |
| 1.61 | -41.00 | 1.22 | -41.00 | -12.82 | 92.38 | 48.86 | 256.69 | 0.7570 | -547.3 | 999999 | |
| 1.02 | -41.00 | 0.77 | -41.00 | -12.58 | 92.31 | 48.80 | 257.00 | 0.7560 | -699.2 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.57 | -10.73 | 91.70 | 48.19 | 259.39 | 0.7474 | -533.0 | -626.8 | |
| 0.00 | 1.10 | 0.00 | 0.82 | -11.41 | 91.80 | 48.29 | 258.49 | 0.7491 | -706.0 | -464.8 | |
| 0.00 | 1.95 | 0.00 | 1.45 | -10.68 | 91.56 | 48.04 | 259.45 | 0.7457 | -819.0 | -651.2 | |
| 1.02 | -41.00 | 0.77 | -41.00 | -13.16 | 92.10 | 48.58 | 256.20 | 0.7543 | -212.3 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.65 | -12.10 | 91.83 | 48.31 | 257.58 | 0.7501 | -583.0 | -531.0 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -10.89 | 91.46 | 47.95 | 259.16 | 0.7448 | -677.0 | -611.1 | |
| 5.78 | -41.00 | 4.32 | -41.00 | -12.87 | 91.88 | 48.37 | 256.55 | 0.7516 | -631.7 | 999999 | |
| 3.40 | 4.93 | 2.57 | 3.73 | -14.69 | 92.25 | 48.74 | 254.21 | 0.7580 | 665.3 | 484.5 | |
| 0.93 | 3.14 | 0.69 | 2.33 | -12.23 | 91.45 | 47.94 | 257.35 | 0.7460 | -704.6 | -601.2 | |
| 0.59 | 1.53 | 0.44 | 1.13 | -11.91 | 91.38 | 47.86 | 257.78 | 0.7448 | -642.0 | -538.4 | |
| 0.00 | 0.59 | 0.00 | 0.44 | -11.03 | 91.09 | 47.58 | 258.93 | 0.7406 | -614.0 | -478.3 | |
| 0.00 | 1.70 | 0.00 | 1.26 | -12.89 | 91.52 | 48.01 | 256.48 | 0.7475 | -646.0 | -596.8 | |
| 0.00 | 0.93 | 0.00 | 0.67 | -6.17 | 90.26 | 46.75 | 265.52 | 0.7287 | -418.0 | -429.2 | |
| 0.00 | 2.89 | 0.00 | 2.13 | -12.43 | 91.23 | 47.71 | 257.06 | 0.7436 | -649.0 | -541.5 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -11.75 | 91.07 | 47.56 | 257.96 | 0.7411 | -445.0 | -385.3 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -12.11 | 91.06 | 47.55 | 257.47 | 0.7414 | -658.0 | -529.6 | |
| 0.00 | 1.44 | 0.00 | 1.05 | -11.02 | 90.69 | 47.17 | 258.90 | 0.7360 | -700.0 | -628.5 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -12.38 | 90.99 | 47.48 | 257.10 | 0.7409 | -508.0 | -538.8 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -12.83 | 91.06 | 47.54 | 256.50 | 0.7422 | -658.0 | -562.0 | |
| 0.00 | 1.10 | 0.00 | 0.81 | -11.41 | 90.68 | 47.17 | 258.37 | 0.7363 | -623.0 | -578.0 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -11.82 | 90.77 | 47.26 | 257.82 | 0.7378 | -529.0 | -484.5 | |
| 0.00 | 0.76 | 0.00 | 0.56 | -11.74 | 90.62 | 47.11 | 257.91 | 0.7359 | -670.0 | -636.4 | |
| 0.00 | 0.93 | 0.00 | 0.68 | -11.89 | 90.57 | 47.05 | 257.70 | 0.7355 | -758.0 | -616.9 | |
| 0.00 | 1.10 | 0.00 | 0.82 | -14.21 | 91.10 | 47.59 | 254.66 | 0.7445 | -512.0 | -443.0 | |
| 0.00 | 1.61 | 0.00 | 1.18 | -12.31 | 90.62 | 47.10 | 257.14 | 0.7365 | -625.0 | -563.1 | |
| 0.00 | 0.59 | 0.00 | 0.43 | -8.86 | 89.85 | 46.33 | 261.79 | 0.7245 | -472.0 | -463.1 | |
| 0.00 | 0.59 | 0.00 | 0.42 | -4.92 | 89.32 | 45.80 | 267.27 | 0.7175 | -625.0 | -639.6 | |
| 0.00 | 2.46 | 0.00 | 1.76 | -8.43 | 89.61 | 46.09 | 262.38 | 0.7214 | -685.0 | -604.7 | |
| 0.00 | 1.78 | 0.00 | 1.29 | -12.48 | 90.21 | 46.70 | 256.86 | 0.7321 | -591.0 | -516.2 | |
| 0.00 | 2.63 | 0.00 | 1.87 | -8.56 | 89.37 | 45.85 | 262.18 | 0.7186 | -770.0 | -659.1 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -9.15 | 89.42 | 45.91 | 261.36 | 0.7196 | -665.0 | -533.4 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -11.98 | 89.97 | 46.45 | 257.50 | 0.7286 | -502.0 | -469.8 | |
| 1.78 | 8.92 | 1.30 | 6.49 | -13.83 | 90.28 | 46.77 | 255.03 | 0.7347 | -416.9 | -23.6 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -12.77 | 89.75 | 46.24 | 256.39 | 0.7271 | -680.0 | -634.9 | |
| 0.00 | 1.53 | 0.00 | 1.10 | -13.91 | 89.86 | 46.35 | 254.85 | 0.7299 | -480.0 | -380.6 | |
| 0.00 | 0.93 | 0.00 | 0.67 | -12.52 | 89.52 | 46.01 | 256.71 | 0.7240 | -574.0 | -490.2 | |
| 3.31 | 5.18 | 2.38 | 3.72 | -13.80 | 89.57 | 46.05 | 254.95 | 0.7264 | -732.8 | -549.5 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -12.56 | 88.66 | 45.15 | 256.52 | 0.7140 | -710.0 | -648.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
