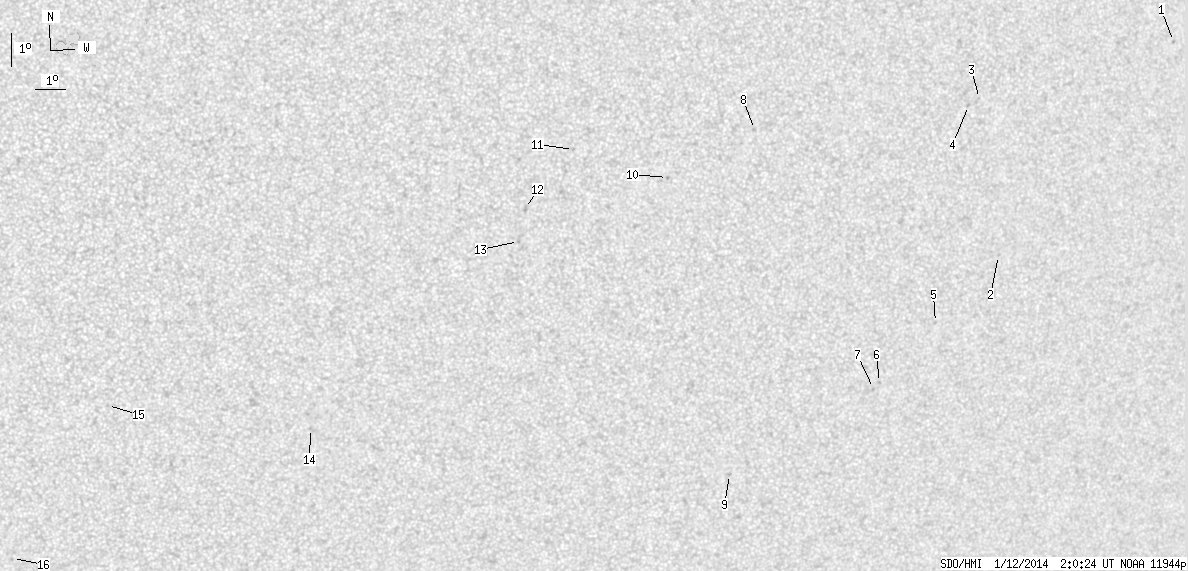

SDO HMI 2014-01-12 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.49 | 0.00 | 10.32 | -19.55 | 64.18 | 20.66 | 228.24 | 0.4516 | -266.3 | -247.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.68 | -12.35 | 79.67 | 36.16 | 254.96 | 0.5991 | -745.0 | -620.5 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -19.01 | 74.45 | 30.94 | 241.41 | 0.5557 | 711.0 | 571.3 | |
| 0.00 | 0.76 | 0.00 | 0.44 | -14.31 | 72.96 | 29.44 | 248.88 | 0.5127 | -646.0 | -537.7 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -14.53 | 72.61 | 29.09 | 248.27 | 0.5088 | -780.0 | -550.7 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -21.14 | 72.61 | 29.10 | 236.58 | 0.5456 | 760.0 | 546.7 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -23.06 | 71.00 | 27.49 | 232.14 | 0.5401 | 767.0 | 581.3 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -23.25 | 70.83 | 27.32 | 231.68 | 0.5396 | 705.0 | 606.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -15.47 | 65.48 | 21.96 | 241.00 | 0.4139 | -765.0 | -686.9 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -26.10 | 66.27 | 22.76 | 222.64 | 0.5150 | 624.0 | 542.9 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -16.98 | 62.78 | 19.27 | 234.59 | 0.3890 | -765.0 | -595.5 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -16.20 | 59.67 | 16.16 | 231.85 | 0.3414 | -726.0 | -562.0 | |
| 0.00 | 2.38 | 0.00 | 1.25 | -18.01 | 58.29 | 14.78 | 225.27 | 0.3429 | -850.0 | -646.2 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -19.02 | 58.15 | 14.64 | 222.89 | 0.3526 | -752.0 | -571.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -24.89 | 51.87 | 8.35 | 200.46 | 0.3788 | -703.0 | -528.2 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -24.20 | 45.23 | 1.72 | 184.59 | 0.3440 | -689.0 | -498.4 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -29.08 | 42.10 | -1.42 | 177.06 | 0.4224 | -407.0 | -406.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
