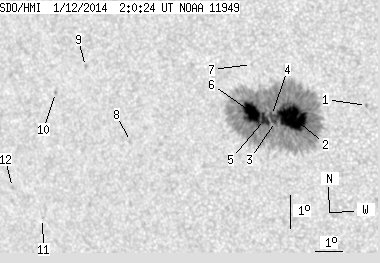

SDO HMI 2014-01-12 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.63 | 481.68 | 43.99 | 280.67 | -16.36 | 13.66 | -29.85 | 114.68 | 0.5277 | 1013.7 | 353.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.58 | -16.15 | 16.89 | -26.62 | 116.41 | 0.4826 | -758.0 | -633.7 | |
| 44.19 | 474.48 | 25.58 | 276.17 | -16.42 | 14.27 | -29.24 | 115.14 | 0.5197 | 1347.0 | 369.7 | |
| 1.44 | -2.00 | 0.84 | -2.00 | -16.52 | 13.65 | -29.86 | 114.94 | 0.5285 | 844.9 | 999999 | |
| 2.21 | -2.00 | 1.29 | -2.00 | -16.33 | 13.54 | -29.97 | 114.54 | 0.5291 | 1038.1 | 999999 | |
| 6.71 | -2.00 | 3.92 | -2.00 | -16.44 | 13.28 | -30.24 | 114.58 | 0.5333 | 1158.3 | 999999 | |
| 21.08 | -2.00 | 12.36 | -2.00 | -16.22 | 12.85 | -30.66 | 113.93 | 0.5379 | 1177.1 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.45 | -14.78 | 13.09 | -30.42 | 111.48 | 0.5283 | 549.0 | 356.0 | |
| 0.00 | 1.19 | 0.00 | 0.74 | -16.91 | 8.27 | -35.24 | 112.81 | 0.6012 | -674.0 | -582.9 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -14.59 | 7.04 | -36.47 | 108.60 | 0.6092 | -816.0 | -714.1 | |
| 0.00 | 1.10 | 0.00 | 0.70 | -15.32 | 5.75 | -37.77 | 109.31 | 0.6283 | -762.0 | -563.8 | |
| 0.00 | 0.25 | 0.00 | 0.17 | -19.09 | 4.29 | -39.22 | 114.46 | 0.6589 | -686.0 | -608.3 | |
| 0.00 | 1.61 | 0.00 | 1.07 | -18.09 | 3.36 | -40.16 | 112.66 | 0.6666 | -757.0 | -554.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
