SDO HMI 2014-01-12 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.70 | 57.44 | 12.44 | 30.14 | -17.83 | 29.57 | -13.94 | 136.00 | 0.3313 | 300.4 | 126.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

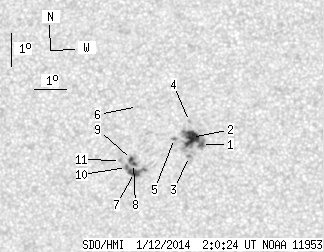

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.95 | 29.66 | 1.02 | 15.49 | -17.71 | 30.64 | -12.87 | 137.86 | 0.3177 | 977.4 | 655.7 | |
| 12.66 | -1.00 | 6.61 | -1.00 | -17.49 | 30.34 | -13.17 | 136.74 | 0.3186 | 1163.5 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -18.06 | 30.23 | -13.28 | 137.79 | 0.3265 | 862.0 | 649.1 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -17.00 | 30.31 | -13.20 | 135.57 | 0.3133 | 858.0 | 632.4 | |
| 0.34 | 2.04 | 0.18 | 1.07 | -17.51 | 29.80 | -13.71 | 135.67 | 0.3250 | 831.2 | 666.4 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -16.52 | 28.70 | -14.81 | 131.25 | 0.3275 | 723.0 | 587.4 | |
| 5.44 | 19.97 | 2.88 | 10.55 | -18.52 | 28.43 | -15.08 | 135.26 | 0.3520 | -1021.6 | -754.8 | |
| 1.10 | -7.00 | 0.58 | -7.00 | -18.24 | 28.43 | -15.09 | 134.66 | 0.3491 | -1108.7 | 999999 | |
| 1.53 | -7.00 | 0.81 | -7.00 | -18.12 | 28.37 | -15.14 | 134.30 | 0.3484 | -1095.7 | 999999 | |
| 0.68 | -7.00 | 0.36 | -7.00 | -18.36 | 28.19 | -15.32 | 134.49 | 0.3531 | -953.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -18.14 | 28.02 | -15.50 | 133.71 | 0.3528 | -802.0 | -687.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
