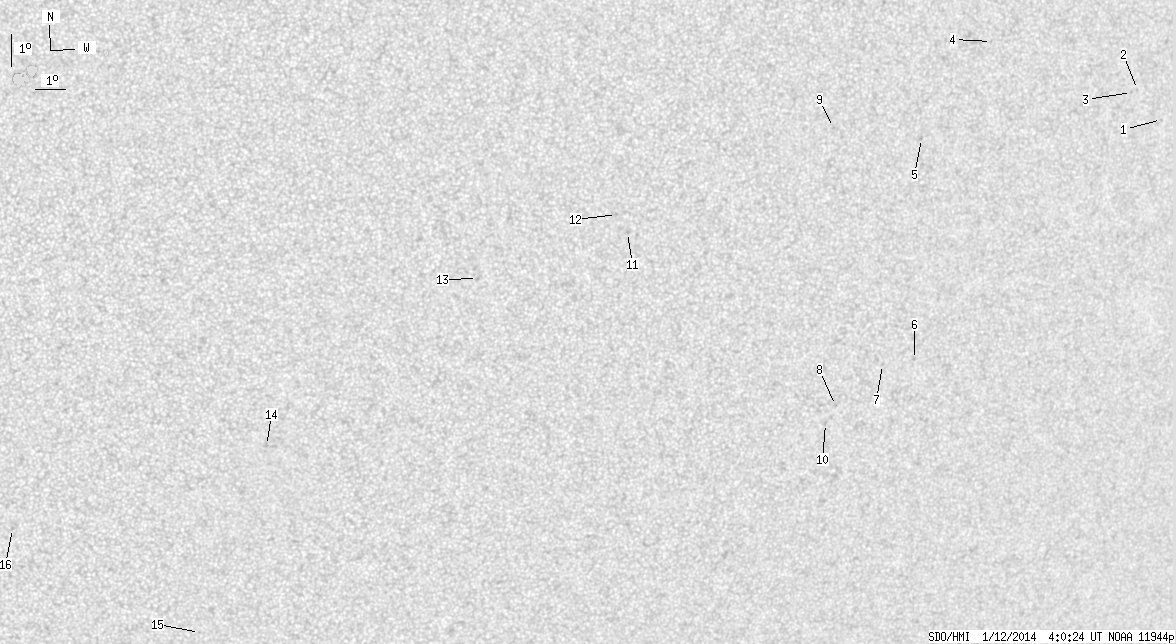

SDO HMI 2014-01-12 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.29 | 0.00 | 9.92 | -19.45 | 66.69 | 24.26 | 231.90 | 0.4980 | -327.1 | -227.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.55 | -13.59 | 81.36 | 38.94 | 253.75 | 0.6387 | -537.0 | -509.0 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -12.73 | 80.28 | 37.85 | 254.80 | 0.6226 | -574.0 | -473.9 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -12.83 | 80.06 | 37.64 | 254.58 | 0.6200 | -693.0 | -466.6 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -11.53 | 74.70 | 32.28 | 255.25 | 0.5433 | -573.0 | -491.8 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -14.51 | 72.63 | 30.21 | 248.93 | 0.5242 | -681.0 | -546.3 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -21.20 | 73.66 | 31.24 | 238.06 | 0.5720 | 739.0 | 514.9 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -21.40 | 72.52 | 30.10 | 236.94 | 0.5594 | 711.0 | 595.7 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -22.72 | 71.11 | 28.69 | 233.71 | 0.5515 | 667.0 | 585.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -14.28 | 69.54 | 27.12 | 247.62 | 0.4798 | -618.0 | -552.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -23.29 | 70.87 | 28.45 | 232.62 | 0.5529 | 781.0 | 574.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.63 | 63.05 | 20.62 | 234.91 | 0.4120 | -694.0 | -628.6 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.09 | 62.62 | 20.20 | 235.53 | 0.4020 | -893.0 | -730.3 | |
| 0.00 | 1.87 | 0.00 | 1.00 | -19.13 | 58.30 | 15.88 | 224.90 | 0.3678 | -652.0 | -562.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -24.39 | 51.89 | 9.47 | 203.46 | 0.3779 | -794.0 | -672.2 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -30.41 | 50.10 | 7.68 | 194.63 | 0.4581 | -671.0 | -542.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -27.07 | 43.65 | 1.23 | 182.81 | 0.3899 | -752.0 | -516.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
