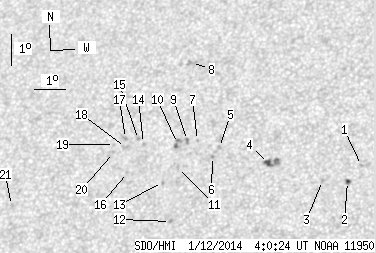

SDO HMI 2014-01-12 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.24 | 44.84 | 1.77 | 25.03 | 17.00 | 24.72 | -17.70 | 38.77 | 0.4649 | 386.0 | 247.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.69 | 16.42 | 29.96 | -12.46 | 30.49 | 0.4096 | -752.0 | -567.7 | |
| 1.11 | 2.64 | 0.60 | 1.43 | 15.92 | 29.55 | -12.87 | 31.96 | 0.4063 | -914.2 | -758.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 15.97 | 28.76 | -13.66 | 33.44 | 0.4137 | -796.0 | -595.4 | |
| 2.13 | 8.84 | 1.17 | 4.86 | 16.54 | 27.01 | -15.42 | 35.86 | 0.4369 | -864.7 | -798.9 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 17.08 | 25.39 | -17.04 | 37.82 | 0.4587 | 938.0 | 681.6 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 16.80 | 25.19 | -17.24 | 38.53 | 0.4573 | 966.0 | 720.1 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 17.32 | 24.65 | -17.77 | 38.64 | 0.4686 | 721.0 | 605.9 | |
| 0.00 | 4.25 | 0.00 | 2.43 | 19.83 | 24.18 | -18.24 | 36.04 | 0.5025 | 862.0 | 646.2 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 17.33 | 24.33 | -18.10 | 39.13 | 0.4718 | 830.0 | 733.7 | |
| 0.00 | 4.59 | 0.00 | 2.58 | 17.25 | 24.01 | -18.41 | 39.73 | 0.4739 | 650.0 | 711.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 16.49 | 24.08 | -18.34 | 40.71 | 0.4644 | 744.0 | 662.9 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 14.79 | 24.01 | -18.41 | 43.41 | 0.4462 | -729.0 | -590.1 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 16.02 | 23.64 | -18.78 | 42.06 | 0.4638 | 852.0 | 746.8 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 17.28 | 22.89 | -19.53 | 41.33 | 0.4853 | 732.0 | 629.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 17.41 | 22.72 | -19.71 | 41.39 | 0.4886 | 599.0 | 523.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 16.37 | 22.47 | -19.95 | 43.25 | 0.4798 | 609.0 | 536.4 | |
| 0.00 | 2.13 | 0.00 | 1.21 | 17.45 | 22.28 | -20.14 | 41.94 | 0.4934 | 736.0 | 613.4 | |
| 0.00 | 3.15 | 0.00 | 1.78 | 17.16 | 22.32 | -20.11 | 42.30 | 0.4900 | 811.0 | 681.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 17.27 | 21.94 | -20.48 | 42.67 | 0.4950 | 540.0 | 447.2 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 17.02 | 21.94 | -20.48 | 43.04 | 0.4923 | 682.0 | 615.2 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 15.45 | 18.74 | -23.68 | 49.46 | 0.5115 | 583.0 | 365.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
