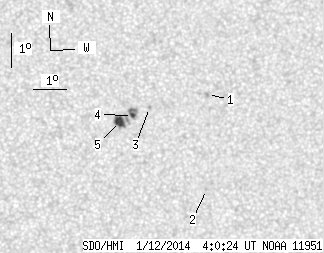

SDO HMI 2014-01-12 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.68 | 24.66 | 4.35 | 12.37 | -13.24 | 44.19 | 1.77 | 190.80 | 0.1603 | -518.1 | -544.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.81 | -12.46 | 46.40 | 3.98 | 205.36 | 0.1588 | 942.0 | 755.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -15.30 | 46.41 | 3.99 | 199.30 | 0.2040 | 852.0 | 561.8 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -12.85 | 44.65 | 2.23 | 194.21 | 0.1549 | -860.0 | -657.8 | |
| 1.79 | 6.97 | 0.90 | 3.49 | -13.09 | 44.13 | 1.71 | 190.73 | 0.1570 | -1138.3 | -912.0 | |
| 6.89 | 13.77 | 3.45 | 6.91 | -13.27 | 43.74 | 1.32 | 188.14 | 0.1590 | -1077.5 | -732.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
