SDO HMI 2014-01-12 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 300.93 | 1728.35 | 286.14 | 1628.37 | -9.85 | 100.28 | 58.41 | 260.91 | 0.8489 | 366.6 | 170.2 | |
|
previous
or next observation for the same group /

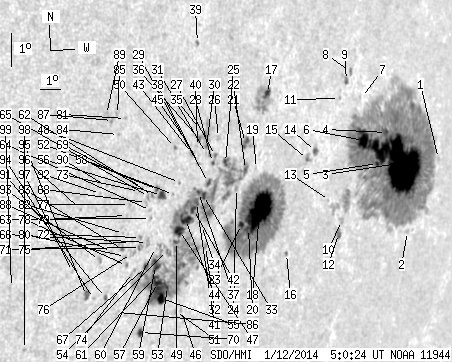

back to the solar disc SDO HMI 2014-01-12 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 2.01 | -8.62 | 107.40 | 65.52 | 262.47 | 0.9095 | -123.0 | -125.5 | |
| 0.00 | 2.21 | 0.00 | 2.48 | -10.89 | 106.03 | 64.15 | 259.95 | 0.8994 | -132.0 | -110.9 | |
| 136.45 | 847.07 | 146.76 | 899.83 | -8.94 | 104.73 | 62.86 | 262.13 | 0.8893 | 732.2 | 227.4 | |
| 1.87 | -3.00 | 1.94 | -3.00 | -8.08 | 103.71 | 61.83 | 263.11 | 0.8812 | 605.2 | 999999 | |
| 1.45 | -3.00 | 1.49 | -3.00 | -9.03 | 103.40 | 61.53 | 262.03 | 0.8786 | 895.6 | 999999 | |
| 10.97 | -3.00 | 10.94 | -3.00 | -8.41 | 102.36 | 60.49 | 262.74 | 0.8699 | 1011.7 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.67 | -7.16 | 101.94 | 60.07 | 264.19 | 0.8663 | 395.0 | 411.0 | |
| 1.19 | 2.81 | 1.15 | 2.70 | -6.43 | 101.14 | 59.27 | 265.05 | 0.8594 | 380.1 | 256.0 | |
| 1.87 | 4.93 | 1.79 | 4.71 | -6.71 | 100.96 | 59.09 | 264.73 | 0.8578 | 649.6 | 538.4 | |
| 0.00 | 3.15 | 0.00 | 3.08 | -10.84 | 101.74 | 59.87 | 259.93 | 0.8648 | 222.0 | 194.0 | |
| 0.00 | 1.19 | 0.00 | 1.13 | -7.27 | 100.67 | 58.79 | 264.08 | 0.8551 | 398.0 | 447.5 | |
| 3.23 | 5.95 | 3.16 | 5.82 | -11.23 | 101.69 | 59.82 | 259.47 | 0.8645 | -437.6 | -333.5 | |
| 0.00 | 0.43 | 0.00 | 0.41 | -10.29 | 100.86 | 58.98 | 260.54 | 0.8569 | 472.0 | 426.4 | |
| 2.38 | 4.00 | 2.20 | 3.69 | -8.90 | 99.67 | 57.80 | 262.15 | 0.8460 | 551.8 | 446.5 | |
| 1.11 | 4.51 | 1.01 | 4.12 | -9.17 | 99.29 | 57.41 | 261.84 | 0.8425 | 670.8 | 603.0 | |
| 0.68 | 1.62 | 0.62 | 1.47 | -12.00 | 98.94 | 57.06 | 258.45 | 0.8400 | 458.9 | 378.7 | |
| 4.59 | 29.41 | 3.93 | 25.06 | -7.36 | 96.74 | 54.87 | 264.00 | 0.8178 | 710.2 | 488.7 | |
| 51.69 | 295.59 | 44.74 | 255.45 | -10.82 | 97.11 | 55.24 | 259.77 | 0.8222 | 922.9 | 253.0 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -9.59 | 96.64 | 54.77 | 261.25 | 0.8171 | 596.0 | 448.1 | |
| 1.02 | -18.00 | 0.87 | -18.00 | -11.38 | 96.69 | 54.82 | 259.06 | 0.8183 | 800.8 | 999999 | |
| 4.42 | 10.37 | 3.71 | 8.73 | -8.86 | 95.91 | 54.03 | 262.13 | 0.8095 | -589.2 | 19.7 | |
| 1.87 | 376.52 | 1.58 | 301.35 | -9.66 | 96.09 | 54.21 | 261.16 | 0.8115 | 745.3 | 95.9 | |
| 2.72 | -18.00 | 2.31 | -18.00 | -11.29 | 96.30 | 54.42 | 259.16 | 0.8143 | 901.7 | 999999 | |
| 0.00 | 2.47 | 0.00 | 2.06 | -10.24 | 95.77 | 53.89 | 260.42 | 0.8085 | 346.0 | 393.5 | |
| 3.40 | -22.00 | 2.80 | -22.00 | -9.51 | 95.04 | 53.16 | 261.30 | 0.8008 | -444.3 | 999999 | |
| 0.00 | 2.55 | 0.00 | 2.07 | -8.79 | 94.54 | 52.66 | 262.18 | 0.7954 | -255.0 | -238.4 | |
| 0.68 | 7.06 | 0.55 | 5.72 | -9.33 | 94.50 | 52.62 | 261.50 | 0.7951 | -515.4 | -499.5 | |
| 1.02 | -27.00 | 0.83 | -27.00 | -9.55 | 94.40 | 52.52 | 261.23 | 0.7941 | -488.5 | 999999 | |
| 2.13 | -22.00 | 1.72 | -22.00 | -10.15 | 94.33 | 52.46 | 260.47 | 0.7937 | -601.6 | 999999 | |
| 1.02 | 19.21 | 0.82 | 15.41 | -9.06 | 94.00 | 52.12 | 261.82 | 0.7898 | -568.8 | -132.2 | |
| 0.00 | 1.19 | 0.00 | 0.96 | -9.30 | 94.05 | 52.17 | 261.53 | 0.7904 | -618.0 | -539.1 | |
| 0.00 | 2.47 | 0.00 | 2.02 | -12.04 | 94.67 | 52.79 | 258.11 | 0.7983 | 118.0 | 185.2 | |
| 2.30 | -22.00 | 1.86 | -22.00 | -10.54 | 94.18 | 52.31 | 259.96 | 0.7923 | -685.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -11.43 | 94.31 | 52.43 | 258.84 | 0.7941 | -179.0 | -152.3 | |
| 0.00 | 0.85 | 0.00 | 0.68 | -8.61 | 93.62 | 51.74 | 262.39 | 0.7856 | -457.0 | -330.6 | |
| 1.28 | -30.00 | 1.02 | -30.00 | -8.88 | 93.62 | 51.75 | 262.05 | 0.7857 | -639.1 | 999999 | |
| 1.53 | -22.00 | 1.23 | -22.00 | -10.47 | 93.92 | 52.04 | 260.03 | 0.7895 | 211.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -9.61 | 93.73 | 51.85 | 261.11 | 0.7871 | -615.0 | -533.4 | |
| 0.60 | 1.87 | 0.47 | 1.47 | -6.06 | 93.07 | 51.19 | 265.65 | 0.7794 | -498.3 | -403.1 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -9.12 | 93.57 | 51.70 | 261.74 | 0.7853 | -704.0 | -661.2 | |
| 2.47 | -22.00 | 1.98 | -22.00 | -10.77 | 93.89 | 52.02 | 259.65 | 0.7894 | 131.8 | 999999 | |
| 3.49 | -22.00 | 2.79 | -22.00 | -10.98 | 93.80 | 51.92 | 259.37 | 0.7885 | -567.7 | 999999 | |
| 0.00 | 3.40 | 0.00 | 2.70 | -9.34 | 93.38 | 51.50 | 261.45 | 0.7832 | -710.0 | -636.2 | |
| 7.99 | -22.00 | 6.37 | -22.00 | -11.30 | 93.49 | 51.61 | 258.95 | 0.7854 | -773.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -8.94 | 92.96 | 51.08 | 261.94 | 0.7786 | -569.0 | -386.0 | |
| 0.00 | 1.70 | 0.00 | 1.38 | -14.00 | 94.06 | 52.18 | 255.58 | 0.7937 | 605.0 | 482.7 | |
| 7.14 | -22.00 | 5.66 | -22.00 | -11.64 | 93.28 | 51.40 | 258.50 | 0.7835 | -790.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.67 | -10.23 | 92.94 | 51.06 | 260.28 | 0.7790 | -337.0 | -312.9 | |
| 1.79 | -22.00 | 1.41 | -22.00 | -11.97 | 93.22 | 51.35 | 258.07 | 0.7831 | -535.2 | 999999 | |
| 0.68 | 1.70 | 0.53 | 1.32 | -9.21 | 92.54 | 50.66 | 261.58 | 0.7741 | -696.9 | -566.3 | |
| 0.00 | 1.45 | 0.00 | 1.16 | -14.05 | 93.78 | 51.90 | 255.49 | 0.7909 | 691.0 | 525.4 | |
| 0.00 | 1.02 | 0.00 | 0.80 | -10.59 | 92.74 | 50.86 | 259.80 | 0.7770 | -412.0 | -296.0 | |
| 1.36 | -22.00 | 1.08 | -22.00 | -13.33 | 93.16 | 51.29 | 256.33 | 0.7837 | -44.1 | 999999 | |
| 0.00 | 5.70 | 0.00 | 4.49 | -12.26 | 92.86 | 50.99 | 257.66 | 0.7795 | -398.0 | -323.0 | |
| 6.55 | -22.00 | 5.18 | -22.00 | -13.70 | 92.98 | 51.11 | 255.84 | 0.7822 | 907.2 | 999999 | |
| 4.51 | 9.35 | 3.49 | 7.23 | -10.66 | 92.18 | 50.30 | 259.68 | 0.7710 | -648.9 | -507.1 | |
| 3.06 | -22.00 | 2.40 | -22.00 | -13.24 | 92.65 | 50.78 | 256.39 | 0.7782 | -225.8 | 999999 | |
| 1.28 | -56.00 | 0.98 | -56.00 | -10.49 | 91.96 | 50.08 | 259.88 | 0.7684 | -727.5 | 999999 | |
| 7.31 | -22.00 | 5.71 | -22.00 | -12.74 | 92.42 | 50.54 | 257.00 | 0.7752 | -549.1 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.40 | -12.21 | 92.27 | 50.40 | 257.68 | 0.7732 | -382.0 | -423.3 | |
| 1.19 | -22.00 | 0.93 | -22.00 | -13.10 | 92.47 | 50.59 | 256.55 | 0.7761 | -430.6 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.31 | -10.68 | 91.76 | 49.89 | 259.61 | 0.7664 | -698.0 | -632.0 | |
| 0.00 | 1.62 | 0.00 | 1.24 | -11.36 | 91.83 | 49.95 | 258.73 | 0.7676 | -544.0 | -416.6 | |
| 0.00 | 1.28 | 0.00 | 0.98 | -11.13 | 91.77 | 49.89 | 259.03 | 0.7668 | -536.0 | -427.3 | |
| 0.00 | 2.13 | 0.00 | 1.63 | -10.72 | 91.58 | 49.71 | 259.55 | 0.7644 | -805.0 | -655.1 | |
| 0.00 | 3.15 | 0.00 | 2.43 | -12.08 | 91.86 | 49.99 | 257.80 | 0.7686 | -570.0 | -521.5 | |
| 2.98 | -22.00 | 2.30 | -22.00 | -12.79 | 92.00 | 50.13 | 256.89 | 0.7708 | -679.7 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.75 | -10.90 | 91.53 | 49.66 | 259.31 | 0.7640 | -733.0 | -635.5 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -10.47 | 91.25 | 49.37 | 259.85 | 0.7606 | -648.0 | -586.6 | |
| 3.23 | 4.59 | 2.53 | 3.59 | -14.76 | 92.30 | 50.42 | 254.38 | 0.7762 | 673.9 | 465.9 | |
| 0.00 | 3.06 | 0.00 | 2.35 | -12.24 | 91.58 | 49.70 | 257.55 | 0.7656 | -704.0 | -623.8 | |
| 0.00 | 1.53 | 0.00 | 1.17 | -11.95 | 91.50 | 49.62 | 257.93 | 0.7645 | -671.0 | -562.5 | |
| 0.00 | 1.02 | 0.00 | 0.77 | -10.59 | 91.14 | 49.26 | 259.68 | 0.7594 | -682.0 | -574.3 | |
| 0.00 | 3.15 | 0.00 | 2.41 | -13.00 | 91.40 | 49.52 | 256.54 | 0.7644 | -515.0 | -424.7 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -12.09 | 91.16 | 49.29 | 257.71 | 0.7609 | -509.0 | -424.7 | |
| 0.00 | 4.85 | 0.00 | 3.69 | -12.44 | 91.21 | 49.33 | 257.25 | 0.7617 | -623.0 | -490.6 | |
| 0.00 | 1.19 | 0.00 | 0.90 | -11.00 | 90.77 | 48.89 | 259.11 | 0.7555 | -364.0 | -404.8 | |
| 0.00 | 1.87 | 0.00 | 1.42 | -12.81 | 91.07 | 49.19 | 256.75 | 0.7606 | -608.0 | -545.3 | |
| 0.00 | 1.11 | 0.00 | 0.83 | -11.33 | 90.71 | 48.83 | 258.66 | 0.7551 | -546.0 | -472.8 | |
| 0.00 | 1.19 | 0.00 | 0.90 | -12.55 | 90.95 | 49.08 | 257.08 | 0.7590 | -635.0 | -548.9 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -8.48 | 90.10 | 48.22 | 262.43 | 0.7464 | -665.0 | -575.5 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -11.87 | 90.69 | 48.82 | 257.95 | 0.7555 | -763.0 | -653.8 | |
| 0.77 | 3.74 | 0.58 | 2.82 | -12.35 | 90.76 | 48.89 | 257.33 | 0.7567 | -646.4 | -557.1 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -8.97 | 89.87 | 47.99 | 261.76 | 0.7440 | -533.0 | -489.7 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -8.38 | 89.72 | 47.85 | 262.55 | 0.7421 | -720.0 | -593.1 | |
| 0.00 | 1.70 | 0.00 | 1.30 | -14.23 | 91.04 | 49.17 | 254.89 | 0.7620 | -249.0 | -209.1 | |
| 0.00 | 2.21 | 0.00 | 1.62 | -8.57 | 89.53 | 47.66 | 262.28 | 0.7399 | -718.0 | -668.7 | |
| 0.00 | 1.02 | 0.00 | 0.76 | -12.43 | 90.28 | 48.40 | 257.15 | 0.7514 | -626.0 | -517.4 | |
| 0.00 | 3.06 | 0.00 | 2.23 | -8.40 | 89.24 | 47.36 | 262.49 | 0.7364 | -386.0 | -425.9 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -10.53 | 89.62 | 47.75 | 259.64 | 0.7422 | -489.0 | -452.7 | |
| 1.02 | 2.21 | 0.77 | 1.66 | -13.81 | 90.37 | 48.49 | 255.34 | 0.7540 | -507.5 | -360.9 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -10.75 | 89.40 | 47.52 | 259.32 | 0.7398 | -581.0 | -452.4 | |
| 0.00 | 1.87 | 0.00 | 1.39 | -12.73 | 89.81 | 47.93 | 256.70 | 0.7464 | -625.0 | -554.2 | |
| 0.00 | 1.19 | 0.00 | 0.88 | -13.87 | 89.83 | 47.96 | 255.18 | 0.7481 | -409.0 | -322.4 | |
| 2.64 | 4.76 | 1.95 | 3.52 | -13.80 | 89.50 | 47.62 | 255.23 | 0.7443 | -702.3 | -535.0 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -11.27 | 88.62 | 46.75 | 258.53 | 0.7312 | -612.0 | -517.0 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -13.12 | 88.69 | 46.82 | 256.02 | 0.7342 | -492.0 | -450.9 | |
| 0.00 | 1.28 | 0.00 | 0.91 | -15.55 | 87.22 | 45.34 | 252.43 | 0.7212 | -575.0 | -493.3 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -13.73 | 86.19 | 44.31 | 254.75 | 0.7057 | -534.0 | -495.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
