SDO HMI 2014-01-12 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.89 | 0.00 | 14.95 | -20.07 | 66.46 | 24.58 | 231.88 | 0.5072 | -252.6 | -213.5 | |
|
previous
or next observation for the same group /

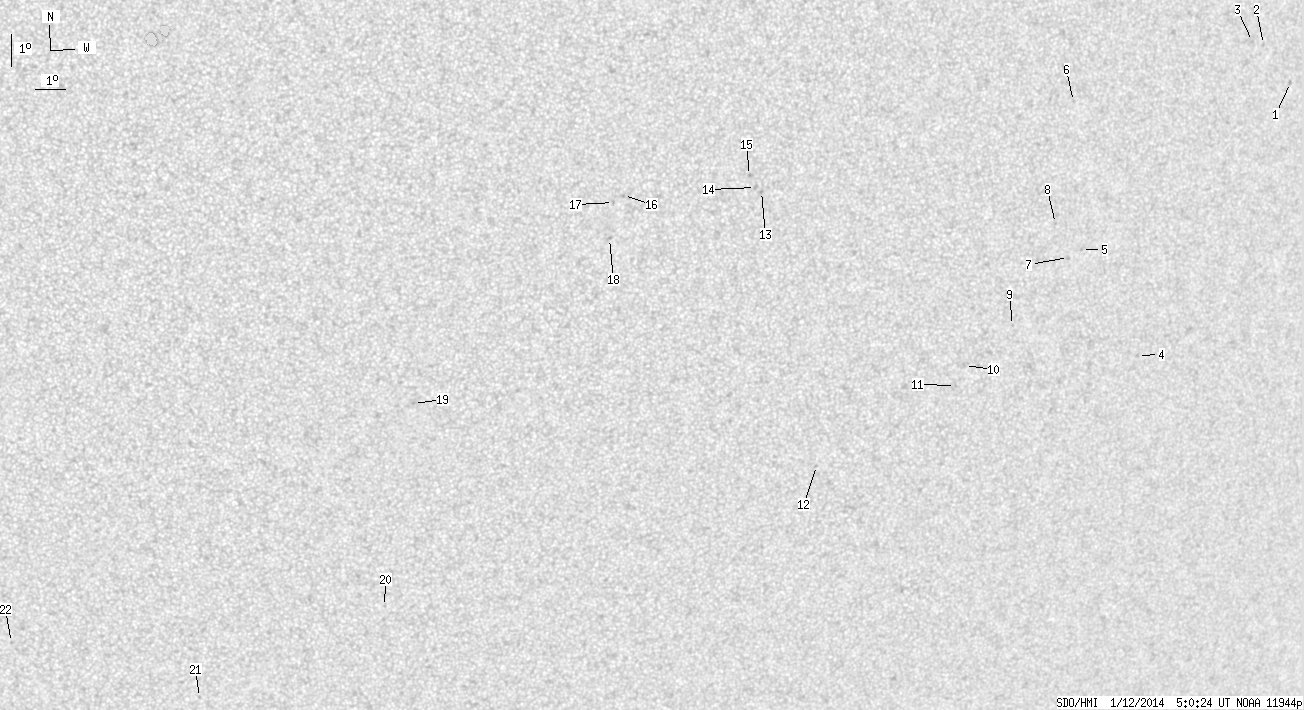

back to the solar disc SDO HMI 2014-01-12 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.99 | -13.66 | 81.38 | 39.51 | 253.79 | 0.6461 | -663.0 | -497.2 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -12.57 | 80.13 | 38.25 | 255.16 | 0.6274 | -465.0 | -363.6 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -12.50 | 79.69 | 37.82 | 255.16 | 0.6215 | -681.0 | -587.5 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -22.16 | 77.48 | 35.61 | 239.30 | 0.6294 | 297.0 | 331.3 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -19.00 | 74.54 | 32.67 | 242.51 | 0.5775 | 688.0 | 593.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -14.55 | 73.41 | 31.54 | 249.50 | 0.5426 | -605.0 | -493.8 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -19.26 | 74.12 | 32.24 | 241.84 | 0.5735 | 451.0 | 412.2 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -18.25 | 73.43 | 31.55 | 243.10 | 0.5594 | 623.0 | 556.1 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -21.41 | 72.54 | 30.66 | 237.32 | 0.5663 | 659.0 | 642.9 | |
| 0.00 | 1.70 | 0.00 | 1.01 | -22.71 | 71.07 | 29.20 | 234.15 | 0.5574 | 687.0 | 530.2 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -23.34 | 70.89 | 29.02 | 233.02 | 0.5597 | 683.0 | 660.6 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -26.00 | 66.45 | 24.57 | 224.79 | 0.5326 | 496.0 | 406.7 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -17.59 | 63.13 | 21.25 | 235.74 | 0.4198 | -703.0 | -565.7 | |
| 0.00 | 2.13 | 0.00 | 1.16 | -17.47 | 62.91 | 21.04 | 235.73 | 0.4161 | -651.0 | -472.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.12 | 62.67 | 20.80 | 236.21 | 0.4101 | -880.0 | -737.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -17.81 | 58.63 | 16.75 | 229.15 | 0.3644 | -903.0 | -785.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.03 | 58.33 | 16.45 | 228.19 | 0.3629 | -816.0 | -633.8 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -19.13 | 58.31 | 16.43 | 225.85 | 0.3741 | -730.0 | -646.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -24.33 | 52.39 | 10.51 | 205.78 | 0.3839 | -860.0 | -664.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -30.86 | 52.02 | 10.15 | 198.63 | 0.4755 | -713.0 | -534.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -33.95 | 45.75 | 3.87 | 186.45 | 0.5007 | -697.0 | -470.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -32.10 | 39.12 | -2.76 | 175.02 | 0.4707 | -775.0 | -598.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
