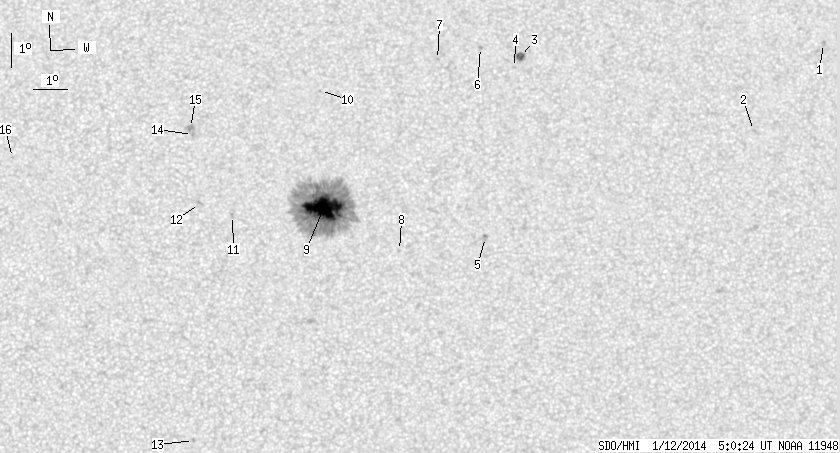

SDO HMI 2014-01-12 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.31 | 310.75 | 24.86 | 156.66 | 5.62 | 45.42 | 3.54 | 341.06 | 0.1847 | -1041.4 | -451.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.55 | 0.00 | 1.38 | 10.56 | 60.55 | 18.67 | 308.69 | 0.4049 | -459.0 | -386.9 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 7.87 | 58.21 | 16.33 | 306.65 | 0.3488 | -666.0 | -531.7 | |
| 3.15 | 5.44 | 1.63 | 2.82 | 10.00 | 51.15 | 9.28 | 327.11 | 0.2936 | -1051.9 | -816.7 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 9.67 | 50.96 | 9.08 | 327.01 | 0.2872 | -916.0 | -756.2 | |
| 0.00 | 2.81 | 0.00 | 1.42 | 4.54 | 49.98 | 8.11 | 317.29 | 0.2083 | -759.0 | -742.3 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 10.26 | 49.95 | 8.07 | 331.08 | 0.2870 | -904.0 | -690.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 9.89 | 48.64 | 6.76 | 334.56 | 0.2714 | -789.0 | -670.1 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.13 | 47.42 | 5.54 | 326.52 | 0.1755 | 894.0 | 667.3 | |
| 46.16 | 280.20 | 23.23 | 141.02 | 5.41 | 45.18 | 3.30 | 341.16 | 0.1782 | -1473.9 | -461.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 8.93 | 45.12 | 3.24 | 346.25 | 0.2359 | -715.0 | -509.8 | |
| 0.00 | 1.70 | 0.00 | 0.85 | 5.17 | 42.48 | 0.60 | 356.34 | 0.1649 | -872.0 | -667.0 | |
| 0.00 | 2.72 | 0.00 | 1.37 | 5.52 | 41.50 | -0.37 | 2.19 | 0.1709 | 821.0 | 669.1 | |
| 0.00 | 1.36 | 0.00 | 0.67 | -1.51 | 41.32 | -0.56 | 11.43 | 0.0493 | 922.0 | 713.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.60 | 41.30 | -0.58 | 2.80 | 0.2067 | -953.0 | -765.8 | |
| 0.00 | 4.34 | 0.00 | 2.20 | 7.81 | 41.24 | -0.64 | 3.03 | 0.2104 | -933.0 | -791.3 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 6.93 | 35.94 | -5.94 | 27.91 | 0.2203 | 814.0 | 582.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
