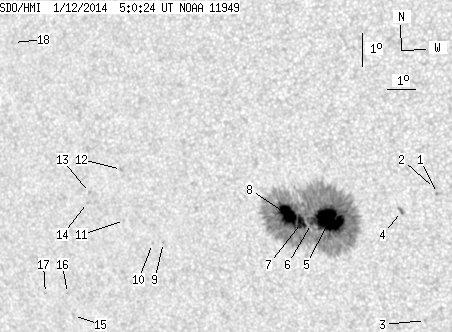

SDO HMI 2014-01-12 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.03 | 483.68 | 41.85 | 277.73 | -16.38 | 13.54 | -28.34 | 115.68 | 0.5072 | 884.6 | 361.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.75 | -15.77 | 18.01 | -23.86 | 117.84 | 0.4422 | 894.0 | 771.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -15.62 | 17.93 | -23.94 | 117.45 | 0.4423 | 678.0 | 594.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -19.60 | 17.05 | -24.83 | 124.41 | 0.4815 | 812.0 | 652.1 | |
| 0.51 | 2.98 | 0.28 | 1.66 | -16.28 | 16.73 | -25.14 | 117.78 | 0.4629 | -964.5 | -748.2 | |
| 41.91 | 466.64 | 23.91 | 267.54 | -16.43 | 14.24 | -27.64 | 116.20 | 0.4980 | 1384.9 | 391.7 | |
| 0.85 | -5.00 | 0.49 | -5.00 | -16.53 | 13.59 | -28.28 | 115.95 | 0.5072 | 956.2 | 999999 | |
| 7.57 | -5.00 | 4.36 | -5.00 | -16.49 | 13.25 | -28.63 | 115.64 | 0.5117 | 1167.5 | 999999 | |
| 22.19 | -5.00 | 12.81 | -5.00 | -16.26 | 12.83 | -29.05 | 114.96 | 0.5162 | 1220.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -16.90 | 8.20 | -33.68 | 113.51 | 0.5808 | -756.0 | -667.6 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -16.92 | 7.79 | -34.09 | 113.33 | 0.5862 | -571.0 | -444.5 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -16.18 | 6.89 | -34.98 | 111.73 | 0.5950 | -323.0 | -226.7 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -14.65 | 7.08 | -34.80 | 109.28 | 0.5872 | -826.0 | -697.7 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -15.29 | 5.75 | -36.12 | 109.82 | 0.6068 | -856.0 | -558.1 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -15.58 | 5.62 | -36.26 | 110.25 | 0.6095 | -500.0 | -449.6 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -18.96 | 4.28 | -37.60 | 114.94 | 0.6387 | -436.0 | -383.1 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -18.29 | 4.22 | -37.66 | 113.90 | 0.6368 | -707.0 | -612.2 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -18.25 | 3.36 | -38.52 | 113.49 | 0.6472 | -738.0 | -638.9 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -10.70 | 3.67 | -38.21 | 101.87 | 0.6233 | -409.0 | -376.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
