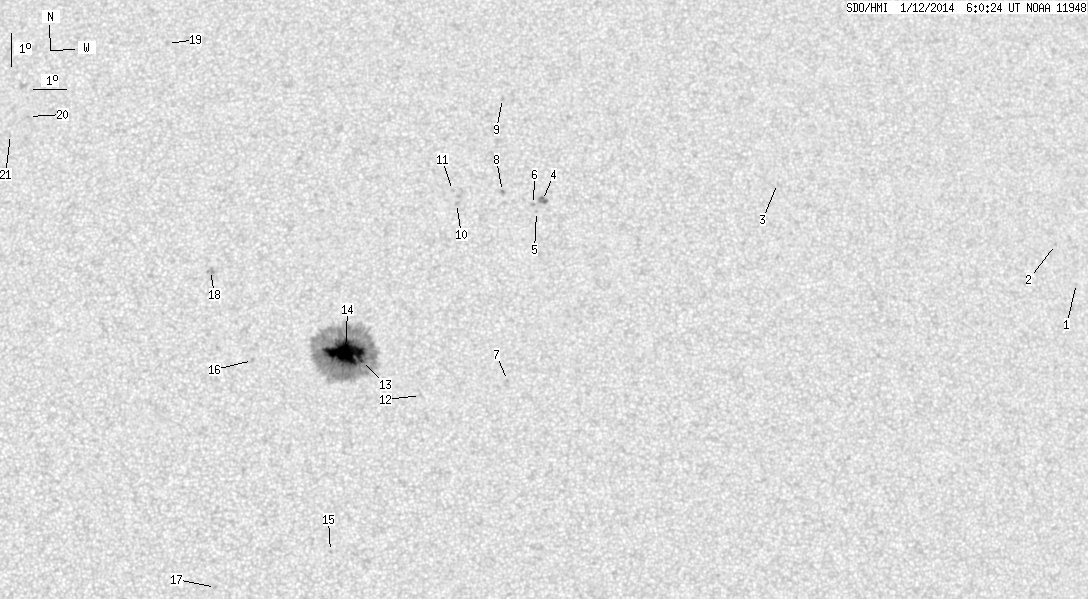

SDO HMI 2014-01-12 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.16 | 318.09 | 23.25 | 160.58 | 5.73 | 45.49 | 4.16 | 337.91 | 0.1905 | -997.9 | -456.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.58 | 7.90 | 67.93 | 26.59 | 294.60 | 0.4897 | -555.0 | -429.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 9.06 | 67.31 | 25.98 | 297.28 | 0.4888 | -700.0 | -635.6 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 10.68 | 58.47 | 17.14 | 311.33 | 0.3873 | -661.0 | -499.1 | |
| 0.00 | 5.10 | 0.00 | 2.65 | 10.04 | 51.19 | 9.86 | 325.58 | 0.2996 | -1104.0 | -963.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 9.70 | 51.00 | 9.66 | 325.45 | 0.2931 | -870.0 | -675.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 9.91 | 50.91 | 9.58 | 326.10 | 0.2952 | -926.0 | -713.6 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 4.61 | 50.01 | 8.68 | 315.56 | 0.2158 | -952.0 | -770.1 | |
| 0.00 | 1.96 | 0.00 | 1.01 | 10.30 | 49.98 | 8.65 | 329.44 | 0.2924 | -905.0 | -679.3 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 13.15 | 50.08 | 8.75 | 333.62 | 0.3347 | -867.0 | -732.2 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 9.92 | 48.58 | 7.25 | 333.05 | 0.2755 | -848.0 | -696.2 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 10.32 | 48.47 | 7.14 | 334.05 | 0.2806 | -767.0 | -608.1 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 4.14 | 47.41 | 6.08 | 324.06 | 0.1808 | 743.0 | 536.4 | |
| 0.85 | 289.23 | 0.43 | 145.66 | 5.17 | 45.67 | 4.34 | 335.30 | 0.1811 | -1147.4 | -449.2 | |
| 45.31 | -13.00 | 22.82 | -13.00 | 5.41 | 45.20 | 3.87 | 338.21 | 0.1817 | -1495.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -0.50 | 44.73 | 3.40 | 317.88 | 0.0888 | 932.0 | 723.2 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 5.16 | 42.44 | 1.11 | 353.29 | 0.1657 | -897.0 | -641.5 | |
| 0.00 | 0.94 | 0.00 | 0.46 | -1.57 | 41.34 | 0.01 | 359.89 | 0.0473 | 976.0 | 794.1 | |
| 0.00 | 3.40 | 0.00 | 1.72 | 7.87 | 41.20 | -0.13 | 0.62 | 0.2112 | -904.0 | -824.7 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 14.82 | 39.89 | -1.44 | 4.24 | 0.3294 | -541.0 | -362.0 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 12.58 | 35.70 | -5.63 | 18.31 | 0.3064 | 807.0 | 695.3 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 12.04 | 35.16 | -6.17 | 20.55 | 0.3007 | 654.0 | 468.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
