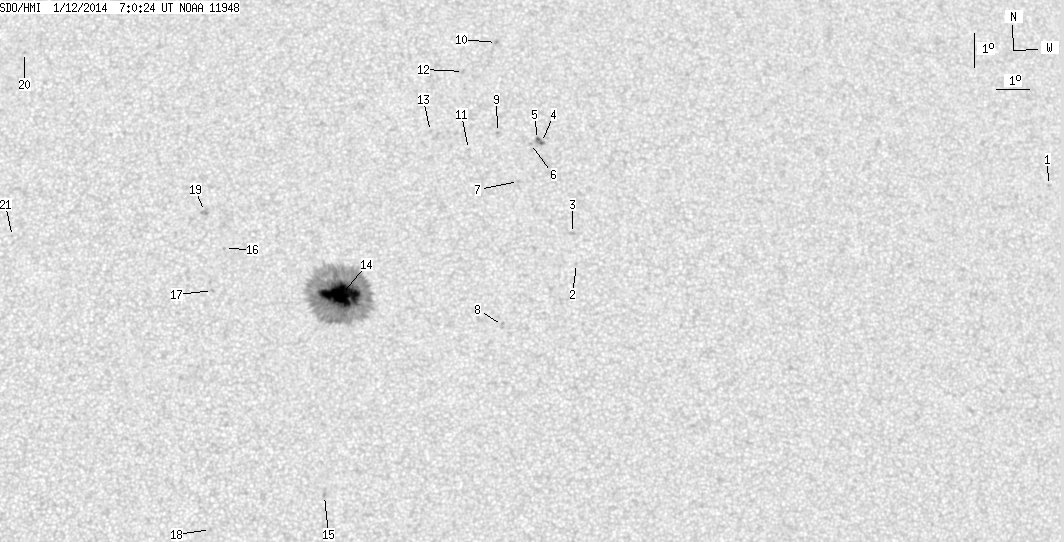

SDO HMI 2014-01-12 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.04 | 322.12 | 24.23 | 162.58 | 5.65 | 45.47 | 4.68 | 335.09 | 0.1923 | -977.4 | -439.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.48 | 9.11 | 67.34 | 26.55 | 296.87 | 0.4969 | -753.0 | -678.3 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 6.40 | 52.30 | 11.51 | 312.81 | 0.2716 | -817.0 | -602.5 | |
| 0.00 | 1.87 | 0.00 | 0.96 | 7.30 | 52.20 | 11.41 | 315.42 | 0.2809 | -731.0 | -613.3 | |
| 0.51 | 4.68 | 0.27 | 2.43 | 10.04 | 51.34 | 10.56 | 323.75 | 0.3064 | -1076.7 | -914.0 | |
| 0.68 | -4.00 | 0.35 | -4.00 | 10.13 | 51.22 | 10.44 | 324.23 | 0.3065 | -1002.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 10.01 | 51.01 | 10.22 | 324.56 | 0.3027 | -921.0 | -631.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 8.85 | 50.61 | 9.82 | 323.28 | 0.2832 | -802.0 | -627.5 | |
| 0.00 | 2.47 | 0.00 | 1.25 | 4.52 | 50.03 | 9.25 | 313.47 | 0.2218 | -621.0 | -718.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 10.33 | 50.01 | 9.23 | 327.87 | 0.2979 | -885.0 | -648.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 13.09 | 50.08 | 9.29 | 332.13 | 0.3380 | -954.0 | -786.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 9.81 | 49.12 | 8.33 | 329.50 | 0.2827 | 535.0 | 412.4 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 12.19 | 49.04 | 8.25 | 333.59 | 0.3169 | -801.0 | -601.9 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 10.34 | 47.99 | 7.20 | 333.90 | 0.2816 | -812.0 | -652.4 | |
| 46.85 | 293.16 | 23.61 | 147.74 | 5.41 | 45.25 | 4.46 | 335.25 | 0.1857 | -1493.3 | -441.6 | |
| 0.00 | 1.28 | 0.00 | 0.63 | -0.56 | 44.72 | 3.93 | 313.27 | 0.0945 | 989.0 | 801.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 6.78 | 41.78 | 0.99 | 354.86 | 0.1933 | -841.0 | -719.0 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 5.52 | 41.42 | 0.64 | 356.29 | 0.1712 | 854.0 | 659.4 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -1.57 | 41.35 | 0.56 | 348.18 | 0.0483 | 940.0 | 748.8 | |
| 0.00 | 3.91 | 0.00 | 1.98 | 7.89 | 41.19 | 0.40 | 358.11 | 0.2118 | -968.0 | -841.8 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 12.76 | 35.76 | -5.03 | 16.30 | 0.3062 | 791.0 | 654.5 | |
| 0.00 | 0.60 | 0.00 | 0.30 | 7.16 | 35.48 | -5.31 | 24.89 | 0.2192 | 545.0 | 423.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
