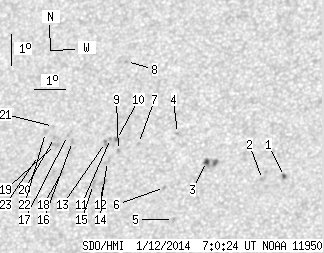

SDO HMI 2014-01-12 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 47.90 | 1.29 | 26.45 | 16.70 | 24.73 | -16.05 | 36.53 | 0.4455 | 313.2 | 218.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 1.79 | 0.32 | 0.96 | 16.01 | 29.67 | -11.12 | 28.22 | 0.3936 | -1016.1 | -861.8 | |
| 0.00 | 2.30 | 0.00 | 1.24 | 15.93 | 28.99 | -11.80 | 29.77 | 0.3977 | -828.0 | -568.8 | |
| 1.79 | 8.59 | 0.97 | 4.68 | 16.53 | 27.18 | -13.60 | 32.56 | 0.4207 | -906.5 | -771.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 17.43 | 26.19 | -14.59 | 33.19 | 0.4410 | -684.0 | -543.6 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 14.73 | 26.27 | -14.52 | 36.88 | 0.4058 | -811.0 | -601.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 15.74 | 25.91 | -14.87 | 36.03 | 0.4219 | -656.0 | -539.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 17.14 | 24.97 | -15.82 | 35.71 | 0.4482 | 765.0 | 579.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 19.78 | 24.33 | -16.46 | 33.38 | 0.4866 | 817.0 | 560.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 16.94 | 24.35 | -16.44 | 37.04 | 0.4514 | 798.0 | 702.2 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 17.29 | 24.25 | -16.54 | 36.71 | 0.4566 | 951.0 | 801.6 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 17.32 | 24.05 | -16.73 | 36.98 | 0.4588 | 629.0 | 571.7 | |
| 0.00 | 2.98 | 0.00 | 1.65 | 16.60 | 24.02 | -16.76 | 38.05 | 0.4504 | 715.0 | 615.1 | |
| 0.00 | 2.21 | 0.00 | 1.23 | 17.20 | 23.90 | -16.88 | 37.40 | 0.4588 | 740.0 | 632.0 | |
| 0.00 | 3.74 | 0.00 | 2.06 | 15.94 | 23.92 | -16.87 | 39.18 | 0.4435 | 892.0 | 734.8 | |
| 0.00 | 2.72 | 0.00 | 1.50 | 15.88 | 23.64 | -17.15 | 39.73 | 0.4457 | 721.0 | 607.6 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 17.26 | 22.83 | -17.96 | 39.01 | 0.4697 | 814.0 | 639.4 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 17.45 | 22.65 | -18.14 | 39.02 | 0.4738 | 642.0 | 539.7 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 16.29 | 22.57 | -18.22 | 40.81 | 0.4611 | 854.0 | 726.1 | |
| 0.00 | 3.49 | 0.00 | 1.96 | 17.18 | 22.28 | -18.50 | 39.95 | 0.4741 | 845.0 | 698.4 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 17.40 | 22.23 | -18.56 | 39.72 | 0.4772 | 755.0 | 596.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 17.75 | 22.16 | -18.63 | 39.33 | 0.4820 | 600.0 | 514.3 | |
| 0.00 | 2.38 | 0.00 | 1.34 | 17.57 | 21.92 | -18.87 | 39.95 | 0.4822 | 418.0 | 398.7 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 16.84 | 21.77 | -19.02 | 41.20 | 0.4755 | 537.0 | 493.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
