SDO HMI 2014-01-12 08:00:24 UT

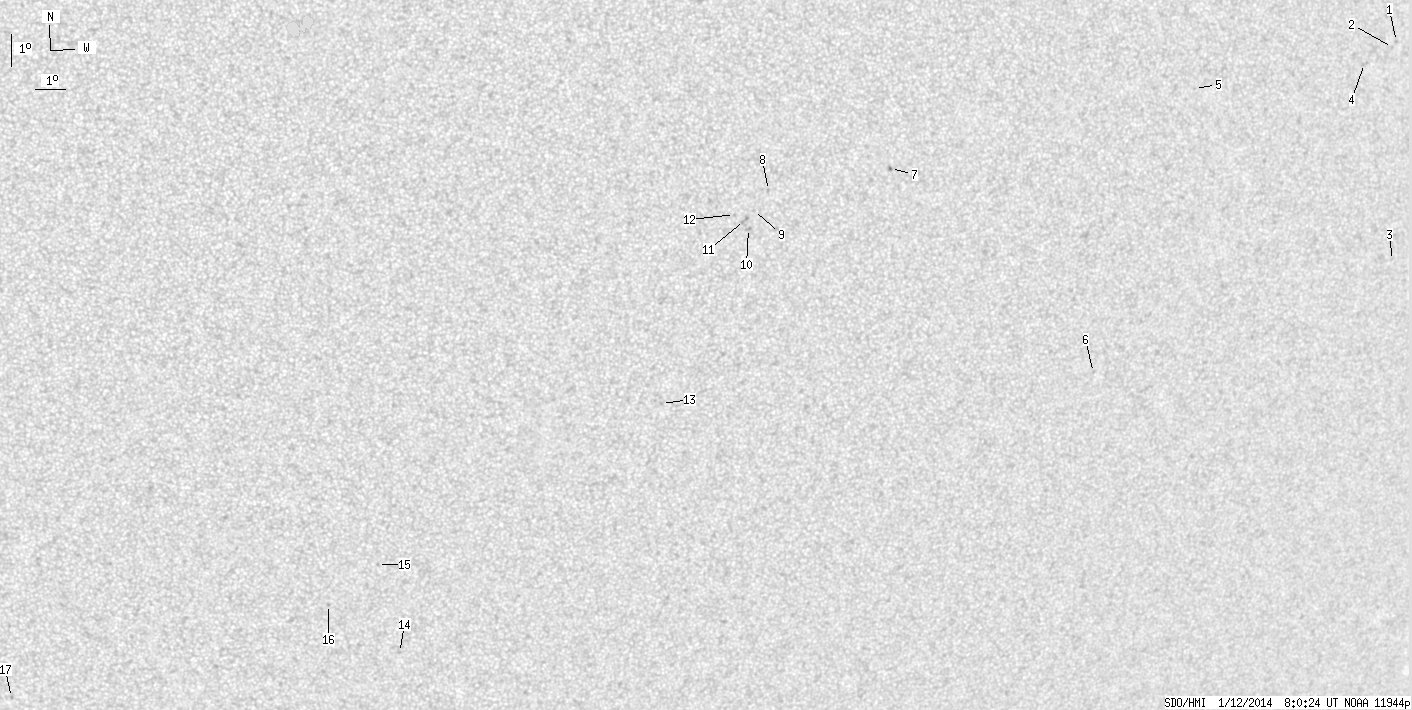

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.31 | 0.00 | 13.38 | -20.07 | 62.38 | 22.13 | 228.44 | 0.4936 | -554.4 | -535.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.88 | -12.68 | 80.24 | 40.00 | 255.41 | 0.6503 | -655.0 | -468.5 | |
| 0.00 | 1.19 | 0.00 | 0.77 | -12.86 | 80.12 | 39.87 | 255.10 | 0.6491 | -670.0 | -469.1 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -19.25 | 81.69 | 41.45 | 246.17 | 0.6856 | 442.0 | 469.6 | |
| 0.00 | 2.72 | 0.00 | 1.74 | -13.39 | 79.12 | 38.87 | 254.05 | 0.6373 | -577.0 | -515.6 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -14.40 | 72.91 | 32.67 | 250.30 | 0.5576 | -683.0 | -527.5 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -23.16 | 71.04 | 30.80 | 234.69 | 0.5790 | 661.0 | 614.8 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -17.14 | 62.77 | 22.53 | 238.08 | 0.4333 | -851.0 | -769.7 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -17.90 | 58.83 | 18.59 | 231.73 | 0.3881 | -716.0 | -558.5 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -18.52 | 58.41 | 18.17 | 229.82 | 0.3886 | -660.0 | -497.0 | |
| 0.00 | 2.21 | 0.00 | 1.19 | -19.07 | 58.30 | 18.06 | 228.54 | 0.3927 | -597.0 | -569.0 | |
| 0.00 | 3.32 | 0.00 | 1.78 | -18.83 | 58.15 | 17.91 | 228.80 | 0.3885 | -865.0 | -768.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -18.65 | 57.80 | 17.56 | 228.64 | 0.3825 | -692.0 | -556.1 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -24.54 | 56.07 | 15.83 | 215.42 | 0.4300 | -736.0 | -569.7 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -32.72 | 47.98 | 7.73 | 193.35 | 0.4922 | -689.0 | -499.8 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -29.81 | 46.99 | 6.75 | 193.29 | 0.4454 | -661.0 | -552.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -31.14 | 45.38 | 5.14 | 189.63 | 0.4606 | -619.0 | -511.7 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -34.24 | 34.23 | -6.01 | 170.18 | 0.5094 | -857.0 | -708.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
