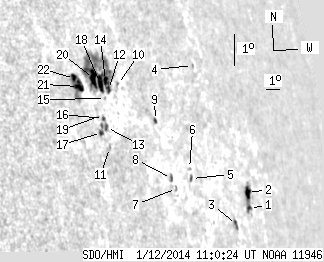

SDO HMI 2014-01-12 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.03 | 145.64 | 54.31 | 168.27 | 8.60 | 102.01 | 63.41 | 281.71 | 0.9026 | 260.9 | 104.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.87 | 15.39 | 3.05 | 25.22 | 6.34 | 110.31 | 71.71 | 278.04 | 0.9544 | -376.4 | -181.2 | |
| 5.02 | -1.00 | 8.23 | -1.00 | 6.81 | 110.29 | 71.69 | 278.54 | 0.9546 | -151.4 | 999999 | |
| 2.13 | 3.91 | 3.22 | 5.91 | 5.76 | 108.93 | 70.32 | 277.60 | 0.9466 | -246.4 | -164.8 | |
| 0.00 | 1.02 | 0.00 | 1.45 | 10.40 | 106.95 | 68.35 | 282.76 | 0.9389 | 134.0 | 99.3 | |
| 0.94 | 2.30 | 1.22 | 3.00 | 6.90 | 105.54 | 66.94 | 279.25 | 0.9271 | -351.6 | -270.4 | |
| 0.00 | 1.02 | 0.00 | 1.33 | 7.19 | 105.48 | 66.87 | 279.58 | 0.9270 | -353.0 | -292.8 | |
| 0.00 | 1.36 | 0.00 | 1.69 | 6.51 | 104.32 | 65.71 | 279.01 | 0.9186 | -464.0 | -400.6 | |
| 1.11 | 2.72 | 1.36 | 3.34 | 6.79 | 104.03 | 65.42 | 279.36 | 0.9169 | -537.8 | -418.9 | |
| 1.19 | 2.21 | 1.44 | 2.67 | 8.49 | 103.39 | 64.78 | 281.29 | 0.9142 | 155.4 | 57.1 | |
| 0.00 | 1.45 | 0.00 | 1.62 | 9.42 | 101.11 | 62.50 | 282.70 | 0.8989 | 130.0 | 73.4 | |
| 0.00 | 2.55 | 0.00 | 2.73 | 7.45 | 100.03 | 61.43 | 280.71 | 0.8882 | -272.0 | -258.5 | |
| 1.79 | 80.25 | 1.96 | 86.56 | 9.23 | 100.46 | 61.86 | 282.61 | 0.8938 | 290.0 | 170.6 | |
| 1.36 | 9.35 | 1.46 | 9.95 | 8.05 | 100.00 | 61.39 | 281.39 | 0.8887 | 458.0 | 240.9 | |
| 2.55 | -12.00 | 2.79 | -12.00 | 9.49 | 100.35 | 61.75 | 282.92 | 0.8933 | 266.6 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.74 | 8.94 | 100.18 | 61.58 | 282.34 | 0.8913 | 397.0 | 371.0 | |
| 0.94 | -13.00 | 1.00 | -13.00 | 8.32 | 99.88 | 61.28 | 281.70 | 0.8881 | 556.2 | 999999 | |
| 1.70 | -13.00 | 1.80 | -13.00 | 7.88 | 99.64 | 61.04 | 281.26 | 0.8856 | -447.4 | 999999 | |
| 6.21 | -12.00 | 6.70 | -12.00 | 9.38 | 100.00 | 61.40 | 282.86 | 0.8904 | 550.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.99 | 8.36 | 99.58 | 60.98 | 281.80 | 0.8858 | 541.0 | 411.7 | |
| 8.25 | -12.00 | 8.79 | -12.00 | 9.50 | 99.60 | 61.00 | 283.08 | 0.8875 | 738.2 | 999999 | |
| 7.40 | 20.49 | 7.63 | 21.07 | 9.20 | 98.59 | 59.99 | 282.93 | 0.8790 | 744.6 | 430.8 | |
| 3.57 | -21.00 | 3.66 | -21.00 | 9.43 | 98.42 | 59.81 | 283.22 | 0.8779 | 659.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
