SDO HMI 2014-01-12 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.40 | 313.75 | 25.07 | 159.24 | 5.79 | 45.59 | 6.99 | 325.63 | 0.2152 | -862.4 | -433.7 | |
|
previous
or next observation for the same group /

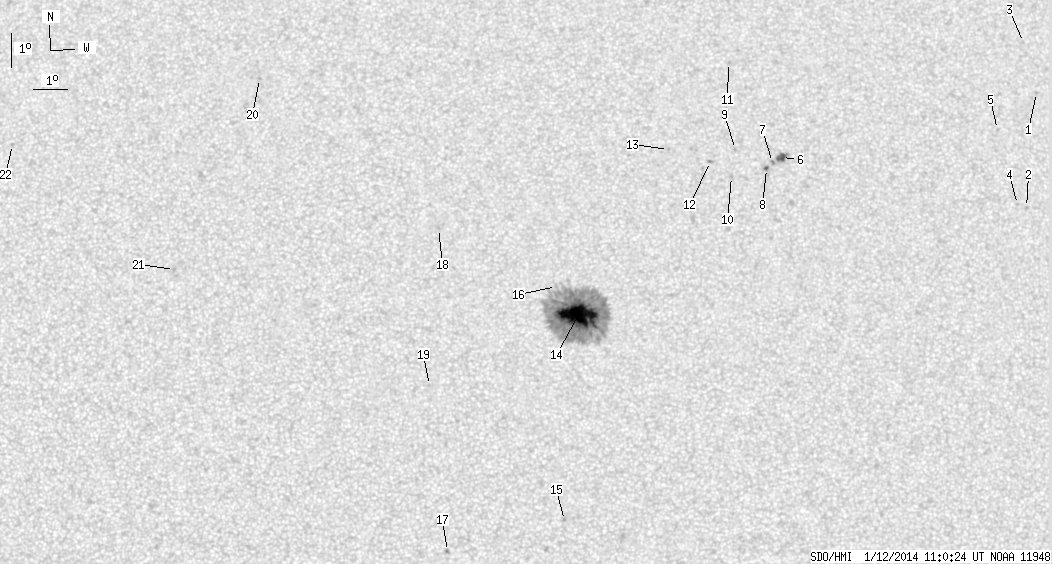

back to the solar disc SDO HMI 2014-01-12 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.71 | 12.39 | 59.70 | 21.09 | 308.73 | 0.4524 | -759.0 | -623.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 8.86 | 59.12 | 20.51 | 302.75 | 0.4134 | -803.0 | -683.3 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 13.92 | 59.41 | 20.81 | 311.74 | 0.4640 | -577.0 | -435.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 8.95 | 58.83 | 20.23 | 303.28 | 0.4104 | -814.0 | -608.4 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 11.22 | 58.35 | 19.74 | 308.42 | 0.4248 | -601.0 | -420.9 | |
| 3.66 | 7.14 | 1.92 | 3.75 | 10.22 | 51.53 | 12.93 | 318.46 | 0.3335 | -1057.8 | -754.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 10.07 | 51.25 | 12.64 | 318.77 | 0.3285 | -984.0 | -903.6 | |
| 0.77 | 1.62 | 0.40 | 0.85 | 9.88 | 51.06 | 12.45 | 318.82 | 0.3241 | -1062.1 | -924.8 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 10.44 | 50.13 | 11.53 | 322.13 | 0.3215 | -776.0 | -564.2 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 9.62 | 49.98 | 11.37 | 320.85 | 0.3093 | 922.0 | 665.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 13.11 | 50.03 | 11.43 | 327.03 | 0.3561 | -754.0 | -600.9 | |
| 0.00 | 2.04 | 0.00 | 1.06 | 10.07 | 49.35 | 10.75 | 323.32 | 0.3088 | 901.0 | 627.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 10.42 | 48.09 | 9.48 | 327.33 | 0.3015 | -768.0 | -659.5 | |
| 44.97 | 280.88 | 22.75 | 142.10 | 5.41 | 45.27 | 6.67 | 325.44 | 0.2047 | -1458.6 | -461.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | -0.70 | 44.82 | 6.22 | 299.75 | 0.1253 | 899.0 | 745.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 6.25 | 44.63 | 6.02 | 330.22 | 0.2110 | -34.0 | -42.6 | |
| 0.00 | 1.79 | 0.00 | 0.89 | -1.64 | 41.36 | 2.76 | 313.75 | 0.0668 | 1016.0 | 825.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 7.98 | 41.13 | 2.53 | 348.38 | 0.2176 | -895.0 | -708.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 3.28 | 40.84 | 2.23 | 343.51 | 0.1377 | 837.0 | 686.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.55 | 35.76 | -2.84 | 9.48 | 0.2948 | 937.0 | 755.1 | |
| 0.00 | 2.04 | 0.00 | 1.03 | 6.77 | 33.28 | -5.33 | 25.74 | 0.2133 | -785.0 | -614.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 10.61 | 28.32 | -10.28 | 34.46 | 0.3115 | 874.0 | 691.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
