SDO HMI 2014-01-12 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.14 | 484.50 | 39.11 | 270.51 | -16.45 | 13.57 | -25.03 | 118.22 | 0.4623 | 1048.1 | 379.6 | |
|
previous
or next observation for the same group /

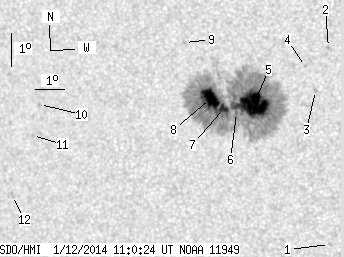

back to the solar disc SDO HMI 2014-01-12 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.57 | -20.82 | 16.09 | -22.51 | 129.02 | 0.4626 | 718.0 | 506.1 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -14.85 | 16.85 | -21.75 | 117.77 | 0.4066 | 837.0 | 691.1 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -16.13 | 16.28 | -22.33 | 120.01 | 0.4232 | -787.0 | -614.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -15.40 | 16.03 | -22.57 | 118.20 | 0.4217 | -687.0 | -561.4 | |
| 42.85 | 473.94 | 23.80 | 264.46 | -16.49 | 14.15 | -24.45 | 118.77 | 0.4547 | 1365.4 | 397.1 | |
| 1.11 | -5.00 | 0.62 | -5.00 | -16.71 | 13.55 | -25.06 | 118.70 | 0.4644 | 596.9 | 999999 | |
| 5.78 | -5.00 | 3.24 | -5.00 | -16.58 | 13.12 | -25.48 | 118.08 | 0.4693 | 1172.9 | 999999 | |
| 20.40 | -5.00 | 11.45 | -5.00 | -16.26 | 12.72 | -25.88 | 117.14 | 0.4729 | 1229.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -14.55 | 12.07 | -26.53 | 113.28 | 0.4726 | 698.0 | 555.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -16.23 | 6.72 | -31.88 | 113.25 | 0.5541 | -741.0 | -588.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -17.15 | 6.29 | -32.31 | 114.60 | 0.5640 | -726.0 | -620.0 | |
| 0.00 | 2.38 | 0.00 | 1.45 | -18.93 | 5.17 | -33.43 | 116.93 | 0.5868 | -684.0 | -613.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
