SDO HMI 2014-01-12 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.83 | 134.76 | 36.54 | 69.54 | -17.92 | 29.65 | -8.96 | 148.13 | 0.2809 | 88.0 | 95.6 | |
|
previous
or next observation for the same group /

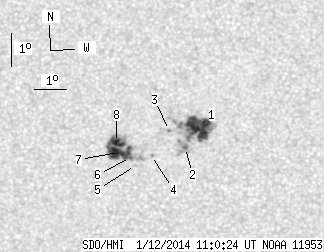

back to the solar disc SDO HMI 2014-01-12 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.56 | 75.75 | 18.78 | 38.95 | -17.63 | 30.75 | -7.86 | 150.64 | 0.2669 | 1165.2 | 558.5 | |
| 0.94 | -1.00 | 0.48 | -1.00 | -18.23 | 30.31 | -8.29 | 150.47 | 0.2792 | 805.4 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.88 | -17.71 | 29.84 | -8.77 | 148.08 | 0.2759 | 678.0 | 443.5 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -18.46 | 29.23 | -9.37 | 147.87 | 0.2918 | -688.0 | -513.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -18.76 | 28.71 | -9.90 | 147.05 | 0.3006 | -701.0 | -513.8 | |
| 1.02 | 55.26 | 0.53 | 28.65 | -18.51 | 28.57 | -10.04 | 146.21 | 0.2985 | -950.2 | -676.2 | |
| 21.17 | -6.00 | 10.98 | -6.00 | -18.35 | 28.20 | -10.41 | 144.95 | 0.2999 | -1021.1 | 999999 | |
| 11.14 | -6.00 | 5.77 | -6.00 | -18.05 | 28.15 | -10.45 | 144.21 | 0.2963 | -1227.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
