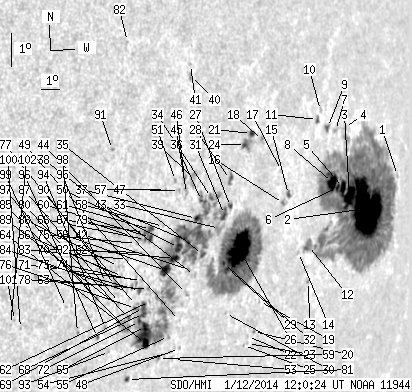

SDO HMI 2014-01-12 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 254.38 | 1500.01 | 272.32 | 1593.96 | -9.94 | 100.40 | 62.34 | 260.90 | 0.8823 | 379.1 | 149.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 1.51 | -7.93 | 107.12 | 69.07 | 263.14 | 0.9333 | -148.0 | -134.0 | |
| 90.19 | 736.82 | 112.71 | 897.83 | -9.06 | 105.04 | 66.98 | 261.97 | 0.9196 | 612.4 | 176.5 | |
| 14.20 | -2.00 | 16.81 | -2.00 | -8.79 | 103.67 | 65.61 | 262.28 | 0.9101 | 972.5 | 999999 | |
| 0.00 | 2.72 | 0.00 | 3.12 | -6.80 | 102.72 | 64.66 | 264.50 | 0.9034 | 215.0 | 188.3 | |
| 5.19 | -2.00 | 6.02 | -2.00 | -8.56 | 103.15 | 65.10 | 262.55 | 0.9064 | 870.3 | 999999 | |
| 2.38 | -2.00 | 2.72 | -2.00 | -8.59 | 102.74 | 64.68 | 262.52 | 0.9033 | 779.6 | 999999 | |
| 0.00 | 2.81 | 0.00 | 3.15 | -6.93 | 102.13 | 64.07 | 264.37 | 0.8990 | 608.0 | 479.5 | |
| 10.12 | -2.00 | 11.42 | -2.00 | -8.46 | 102.35 | 64.29 | 262.66 | 0.9004 | 996.9 | 999999 | |
| 2.13 | 4.00 | 2.33 | 4.39 | -6.88 | 101.57 | 63.51 | 264.45 | 0.8947 | 517.7 | 364.3 | |
| 0.00 | 1.96 | 0.00 | 2.11 | -6.41 | 101.00 | 62.94 | 264.99 | 0.8903 | 401.0 | 267.0 | |
| 1.53 | 3.15 | 1.64 | 3.38 | -6.69 | 100.86 | 62.81 | 264.68 | 0.8892 | 544.2 | 406.5 | |
| 6.72 | -2.00 | 7.32 | -2.00 | -10.41 | 101.36 | 63.31 | 260.49 | 0.8929 | 482.6 | 999999 | |
| 0.43 | 1.45 | 0.47 | 1.60 | -11.46 | 101.77 | 63.71 | 259.32 | 0.8961 | -422.2 | -346.7 | |
| 0.00 | 1.45 | 0.00 | 1.55 | -10.66 | 100.79 | 62.73 | 260.20 | 0.8884 | 325.0 | 209.6 | |
| 2.13 | 3.15 | 2.19 | 3.24 | -9.00 | 99.60 | 61.54 | 262.07 | 0.8787 | 570.0 | 407.4 | |
| 0.94 | 3.23 | 0.96 | 3.30 | -9.28 | 99.37 | 61.31 | 261.75 | 0.8768 | 611.0 | 533.4 | |
| 0.00 | 1.19 | 0.00 | 1.20 | -8.33 | 98.97 | 60.92 | 262.85 | 0.8735 | 556.0 | 426.4 | |
| 0.00 | 3.66 | 0.00 | 3.55 | -7.52 | 97.63 | 59.57 | 263.79 | 0.8620 | 495.0 | 332.8 | |
| 0.00 | 1.11 | 0.00 | 1.12 | -12.25 | 98.88 | 60.83 | 258.34 | 0.8733 | 272.0 | 210.3 | |
| 0.34 | 1.53 | 0.34 | 1.55 | -13.15 | 98.87 | 60.82 | 257.31 | 0.8735 | -321.2 | -334.6 | |
| 2.64 | 14.28 | 2.51 | 13.54 | -7.35 | 96.95 | 58.89 | 263.99 | 0.8559 | 665.7 | 516.2 | |
| 0.00 | 0.85 | 0.00 | 0.85 | -13.32 | 98.57 | 60.51 | 257.10 | 0.8710 | -230.0 | -241.1 | |
| 0.00 | 0.85 | 0.00 | 0.85 | -13.53 | 98.66 | 60.60 | 256.86 | 0.8718 | -481.0 | -446.4 | |
| 4.34 | -21.00 | 4.09 | -21.00 | -7.70 | 96.67 | 58.62 | 263.59 | 0.8534 | 517.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.68 | -13.60 | 98.44 | 60.38 | 256.77 | 0.8700 | -487.0 | -471.1 | |
| 43.27 | 266.75 | 41.46 | 255.14 | -10.80 | 97.16 | 59.10 | 259.96 | 0.8581 | 925.5 | 205.1 | |
| 1.53 | 187.61 | 1.43 | 167.07 | -9.57 | 96.27 | 58.22 | 261.38 | 0.8499 | 659.3 | 116.7 | |
| 2.55 | 4.85 | 2.37 | 4.50 | -8.78 | 96.07 | 58.01 | 262.32 | 0.8479 | -479.3 | -318.7 | |
| 2.30 | -26.00 | 2.17 | -26.00 | -11.40 | 96.65 | 58.59 | 259.24 | 0.8537 | 695.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.97 | -12.73 | 97.00 | 58.94 | 257.70 | 0.8573 | 199.0 | 173.3 | |
| 4.51 | -27.00 | 4.17 | -27.00 | -9.82 | 96.00 | 57.94 | 261.08 | 0.8475 | 727.6 | 999999 | |
| 1.11 | -26.00 | 1.04 | -26.00 | -11.27 | 96.37 | 58.32 | 259.39 | 0.8512 | 983.9 | 999999 | |
| 0.00 | 8.59 | 0.00 | 7.92 | -10.25 | 95.84 | 57.78 | 260.57 | 0.8461 | 274.0 | 322.9 | |
| 1.45 | -27.00 | 1.31 | -27.00 | -9.37 | 95.15 | 57.09 | 261.60 | 0.8395 | -369.8 | 999999 | |
| 1.87 | -27.00 | 1.70 | -27.00 | -11.07 | 95.12 | 57.07 | 259.56 | 0.8397 | 518.4 | 999999 | |
| 0.68 | -27.00 | 0.61 | -27.00 | -9.49 | 94.63 | 56.57 | 261.44 | 0.8346 | -541.1 | 999999 | |
| 2.30 | -27.00 | 2.05 | -27.00 | -10.04 | 94.50 | 56.44 | 260.78 | 0.8335 | -504.9 | 999999 | |
| 0.00 | 2.38 | 0.00 | 2.14 | -11.72 | 94.88 | 56.82 | 258.78 | 0.8377 | 164.0 | 124.0 | |
| 0.00 | 8.16 | 0.00 | 7.18 | -8.87 | 94.05 | 55.99 | 262.18 | 0.8289 | -317.0 | -226.8 | |
| 0.00 | 2.72 | 0.00 | 2.35 | -5.88 | 93.33 | 55.27 | 265.80 | 0.8219 | -444.0 | -338.0 | |
| 0.00 | 1.02 | 0.00 | 0.88 | -5.53 | 93.28 | 55.22 | 266.24 | 0.8215 | -491.0 | -425.0 | |
| 0.00 | 1.87 | 0.00 | 1.67 | -11.56 | 94.50 | 56.44 | 258.95 | 0.8340 | -287.0 | -149.3 | |
| 2.98 | -27.00 | 2.63 | -27.00 | -10.71 | 94.14 | 56.08 | 259.95 | 0.8303 | -353.0 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.83 | -12.27 | 94.62 | 56.56 | 258.10 | 0.8355 | 199.0 | 219.4 | |
| 0.00 | 4.34 | 0.00 | 3.79 | -9.33 | 93.78 | 55.72 | 261.61 | 0.8264 | -456.0 | -499.9 | |
| 0.00 | 2.04 | 0.00 | 1.78 | -8.87 | 93.57 | 55.51 | 262.17 | 0.8243 | -560.0 | -489.8 | |
| 0.00 | 1.28 | 0.00 | 1.10 | -9.27 | 93.39 | 55.34 | 261.68 | 0.8226 | -604.0 | -545.8 | |
| 0.00 | 0.94 | 0.00 | 0.84 | -13.92 | 94.81 | 56.75 | 256.15 | 0.8382 | 316.0 | 296.6 | |
| 0.00 | 0.51 | 0.00 | 0.46 | -13.09 | 94.51 | 56.45 | 257.11 | 0.8349 | -137.0 | -192.2 | |
| 4.85 | -27.00 | 4.24 | -27.00 | -10.95 | 93.78 | 55.72 | 259.65 | 0.8269 | -645.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.39 | -8.99 | 93.12 | 55.06 | 262.02 | 0.8199 | -592.0 | -544.1 | |
| 4.76 | -27.00 | 4.16 | -27.00 | -11.28 | 93.66 | 55.60 | 259.24 | 0.8259 | -747.1 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.53 | -14.26 | 94.61 | 56.55 | 255.72 | 0.8366 | 339.0 | 363.0 | |
| 0.00 | 0.85 | 0.00 | 0.76 | -14.07 | 94.37 | 56.31 | 255.93 | 0.8342 | 702.0 | 615.8 | |
| 0.00 | 1.62 | 0.00 | 1.43 | -13.60 | 94.09 | 56.03 | 256.47 | 0.8313 | 703.0 | 660.8 | |
| 8.33 | -27.00 | 7.21 | -27.00 | -11.66 | 93.29 | 55.23 | 258.76 | 0.8225 | -713.0 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.72 | -9.28 | 92.66 | 54.61 | 261.64 | 0.8154 | -695.0 | -671.2 | |
| 0.00 | 0.60 | 0.00 | 0.51 | -10.37 | 92.83 | 54.77 | 260.31 | 0.8173 | -421.0 | -320.9 | |
| 0.00 | 1.53 | 0.00 | 1.35 | -14.28 | 93.79 | 55.73 | 255.62 | 0.8290 | 588.0 | 561.6 | |
| 2.47 | 18.45 | 2.08 | 15.48 | -10.74 | 92.24 | 54.19 | 259.83 | 0.8117 | -586.1 | -589.9 | |
| 2.64 | -60.00 | 2.22 | -60.00 | -10.50 | 92.18 | 54.13 | 260.12 | 0.8110 | -596.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.16 | -12.63 | 92.74 | 54.68 | 257.54 | 0.8176 | -217.0 | -159.2 | |
| 0.00 | 1.19 | 0.00 | 1.01 | -12.28 | 92.58 | 54.52 | 257.96 | 0.8158 | -512.0 | -381.2 | |
| 5.02 | 136.01 | 4.32 | 117.66 | -13.88 | 92.94 | 54.89 | 256.03 | 0.8206 | 931.1 | 192.0 | |
| 4.00 | -64.00 | 3.43 | -64.00 | -13.38 | 92.77 | 54.71 | 256.63 | 0.8185 | -180.7 | 999999 | |
| 0.68 | -60.00 | 0.57 | -60.00 | -10.81 | 92.01 | 53.95 | 259.73 | 0.8093 | -764.8 | 999999 | |
| 1.11 | -60.00 | 0.93 | -60.00 | -10.61 | 91.90 | 53.85 | 259.97 | 0.8082 | -739.6 | 999999 | |
| 2.38 | -64.00 | 2.03 | -64.00 | -13.00 | 92.54 | 54.49 | 257.07 | 0.8160 | -491.4 | 999999 | |
| 2.98 | -64.00 | 2.53 | -64.00 | -12.82 | 92.49 | 54.43 | 257.28 | 0.8153 | -524.1 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.71 | -11.21 | 91.91 | 53.85 | 259.23 | 0.8085 | -485.0 | -415.2 | |
| 0.00 | 1.62 | 0.00 | 1.36 | -12.03 | 92.14 | 54.08 | 258.23 | 0.8113 | -442.0 | -324.0 | |
| 0.94 | -64.00 | 0.79 | -64.00 | -13.25 | 92.41 | 54.36 | 256.76 | 0.8149 | -366.1 | 999999 | |
| 1.53 | 2.98 | 1.29 | 2.51 | -12.33 | 92.13 | 54.07 | 257.86 | 0.8114 | -551.8 | -427.7 | |
| 0.00 | 3.06 | 0.00 | 2.56 | -12.05 | 91.89 | 53.83 | 258.19 | 0.8088 | -573.0 | -496.9 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -10.96 | 91.58 | 53.53 | 259.52 | 0.8051 | -629.0 | -594.5 | |
| 0.94 | -64.00 | 0.79 | -64.00 | -12.87 | 92.09 | 54.03 | 257.18 | 0.8114 | -586.6 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.00 | -12.76 | 92.05 | 53.99 | 257.33 | 0.8109 | -399.0 | -308.1 | |
| 0.00 | 2.21 | 0.00 | 1.85 | -12.27 | 91.69 | 53.64 | 257.90 | 0.8070 | -554.0 | -525.1 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -10.76 | 91.28 | 53.23 | 259.74 | 0.8019 | -463.0 | -515.3 | |
| 0.85 | 2.30 | 0.71 | 1.92 | -13.16 | 91.81 | 53.76 | 256.81 | 0.8089 | -559.4 | -480.4 | |
| 1.36 | 2.64 | 1.16 | 2.25 | -15.00 | 92.40 | 54.34 | 254.61 | 0.8163 | 678.9 | 536.5 | |
| 0.00 | 0.68 | 0.00 | 0.54 | -5.04 | 90.05 | 51.99 | 266.95 | 0.7883 | -511.0 | -474.4 | |
| 0.00 | 1.19 | 0.00 | 0.98 | -11.45 | 91.26 | 53.20 | 258.88 | 0.8021 | -173.0 | -276.1 | |
| 0.00 | 1.11 | 0.00 | 0.92 | -12.40 | 91.48 | 53.42 | 257.72 | 0.8049 | -468.0 | -445.8 | |
| 0.00 | 10.97 | 0.00 | 9.17 | -13.44 | 91.70 | 53.64 | 256.45 | 0.8079 | -83.0 | -79.3 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -11.97 | 91.15 | 53.09 | 258.23 | 0.8013 | -601.0 | -560.2 | |
| 0.00 | 0.51 | 0.00 | 0.42 | -12.74 | 91.22 | 53.17 | 257.27 | 0.8026 | -517.0 | -421.3 | |
| 0.00 | 0.85 | 0.00 | 0.70 | -11.69 | 90.87 | 52.81 | 258.56 | 0.7982 | -607.0 | -578.1 | |
| 0.00 | 0.94 | 0.00 | 0.77 | -12.84 | 91.15 | 53.10 | 257.15 | 0.8020 | -446.0 | -385.1 | |
| 1.11 | 3.91 | 0.91 | 3.20 | -12.25 | 90.88 | 52.82 | 257.85 | 0.7987 | -652.4 | -602.9 | |
| 0.00 | 1.02 | 0.00 | 0.81 | -8.26 | 89.80 | 51.74 | 262.85 | 0.7855 | -668.0 | -614.4 | |
| 0.00 | 2.30 | 0.00 | 1.87 | -11.91 | 90.58 | 52.53 | 258.26 | 0.7954 | -375.0 | -504.1 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -14.22 | 91.19 | 53.13 | 255.43 | 0.8035 | -432.0 | -358.3 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -13.52 | 90.76 | 52.70 | 256.25 | 0.7985 | -458.0 | -364.5 | |
| 0.00 | 0.68 | 0.00 | 0.55 | -12.19 | 90.36 | 52.31 | 257.88 | 0.7933 | -666.0 | -628.4 | |
| 0.60 | 1.62 | 0.48 | 1.31 | -13.84 | 90.46 | 52.40 | 255.82 | 0.7958 | -350.4 | -299.4 | |
| 0.00 | 1.53 | 0.00 | 1.23 | -12.69 | 90.06 | 52.00 | 257.23 | 0.7906 | -651.0 | -523.9 | |
| 0.00 | 1.19 | 0.00 | 0.95 | -13.75 | 89.44 | 51.38 | 255.82 | 0.7851 | -423.0 | -426.2 | |
| 0.00 | 1.11 | 0.00 | 0.86 | -13.04 | 88.70 | 50.64 | 256.64 | 0.7765 | -571.0 | -459.2 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -13.78 | 86.74 | 48.68 | 255.43 | 0.7560 | -496.0 | -463.8 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -13.56 | 86.40 | 48.34 | 255.67 | 0.7520 | -648.0 | -560.5 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -13.68 | 86.25 | 48.20 | 255.48 | 0.7505 | -598.0 | -614.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
