SDO HMI 2014-01-12 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.93 | 128.73 | 51.04 | 153.02 | 8.59 | 102.24 | 64.18 | 281.57 | 0.9080 | 271.9 | 149.3 | |
|
previous
or next observation for the same group /

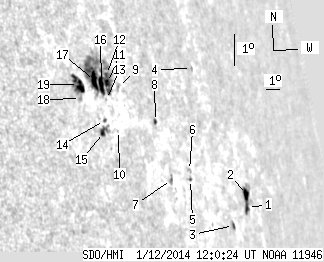

back to the solar disc SDO HMI 2014-01-12 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 15.47 | 5.31 | 26.29 | 6.41 | 110.38 | 72.32 | 278.05 | 0.9576 | -344.0 | -21.5 | |
| 4.76 | -1.00 | 8.08 | -1.00 | 6.80 | 110.43 | 72.37 | 278.45 | 0.9580 | -61.9 | 999999 | |
| 1.19 | 2.98 | 1.85 | 4.62 | 5.76 | 108.83 | 70.78 | 277.55 | 0.9491 | -198.4 | -177.7 | |
| 0.00 | 1.11 | 0.00 | 1.61 | 10.35 | 106.96 | 68.91 | 282.62 | 0.9420 | 180.0 | 160.1 | |
| 0.68 | 1.45 | 0.91 | 1.93 | 6.91 | 105.54 | 67.49 | 279.18 | 0.9306 | -336.4 | -246.3 | |
| 0.00 | 1.70 | 0.00 | 2.28 | 7.18 | 105.55 | 67.49 | 279.47 | 0.9309 | -399.0 | -285.4 | |
| 0.00 | 3.06 | 0.00 | 3.85 | 6.80 | 104.07 | 66.01 | 279.28 | 0.9209 | -536.0 | -466.0 | |
| 1.02 | 2.13 | 1.26 | 2.63 | 8.50 | 103.41 | 65.36 | 281.21 | 0.9182 | 128.5 | 83.7 | |
| 0.00 | 2.30 | 0.00 | 2.62 | 9.37 | 101.14 | 63.08 | 282.54 | 0.9031 | 96.0 | 31.0 | |
| 0.00 | 0.43 | 0.00 | 0.48 | 8.05 | 100.73 | 62.68 | 281.16 | 0.8985 | 218.0 | 200.2 | |
| 3.06 | 70.30 | 3.41 | 77.23 | 9.48 | 100.45 | 62.39 | 282.78 | 0.8981 | 280.5 | 209.1 | |
| 0.77 | -11.00 | 0.86 | -11.00 | 9.72 | 100.46 | 62.40 | 283.05 | 0.8985 | -284.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.66 | 8.95 | 100.22 | 62.16 | 282.24 | 0.8957 | 391.0 | 332.4 | |
| 0.51 | 1.36 | 0.56 | 1.48 | 8.29 | 99.90 | 61.84 | 281.58 | 0.8924 | 627.5 | 547.3 | |
| 2.30 | 7.65 | 2.48 | 8.30 | 7.92 | 99.73 | 61.68 | 281.19 | 0.8907 | -165.0 | 226.7 | |
| 6.63 | -11.00 | 7.30 | -11.00 | 9.36 | 100.02 | 61.96 | 282.73 | 0.8947 | 515.6 | 999999 | |
| 8.08 | -11.00 | 8.77 | -11.00 | 9.48 | 99.61 | 61.56 | 282.94 | 0.8918 | 744.9 | 999999 | |
| 0.00 | 2.38 | 0.00 | 2.49 | 8.87 | 98.56 | 60.50 | 282.46 | 0.8827 | 371.0 | 376.9 | |
| 9.78 | 15.81 | 10.25 | 16.55 | 9.29 | 98.56 | 60.50 | 282.93 | 0.8833 | 716.9 | 517.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
