SDO HMI 2014-01-12 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.80 | 21.68 | 5.44 | 10.90 | -12.88 | 43.66 | 5.60 | 212.34 | 0.1784 | -556.5 | -416.2 | |
|
previous
or next observation for the same group /

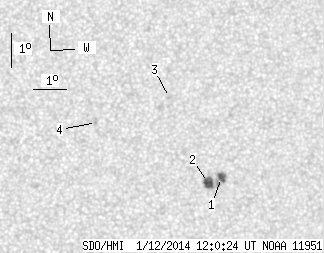

back to the solar disc SDO HMI 2014-01-12 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.00 | 19.04 | 2.01 | 9.59 | -13.06 | 44.12 | 6.06 | 213.90 | 0.1853 | -1074.3 | -750.4 | |
| 6.80 | -1.00 | 3.43 | -1.00 | -13.21 | 43.73 | 5.67 | 211.72 | 0.1838 | -1102.3 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.06 | -10.69 | 42.50 | 4.45 | 214.25 | 0.1360 | 931.0 | 647.0 | |
| 0.00 | 0.51 | 0.00 | 0.25 | -11.44 | 40.32 | 2.26 | 197.21 | 0.1312 | 869.0 | 601.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
