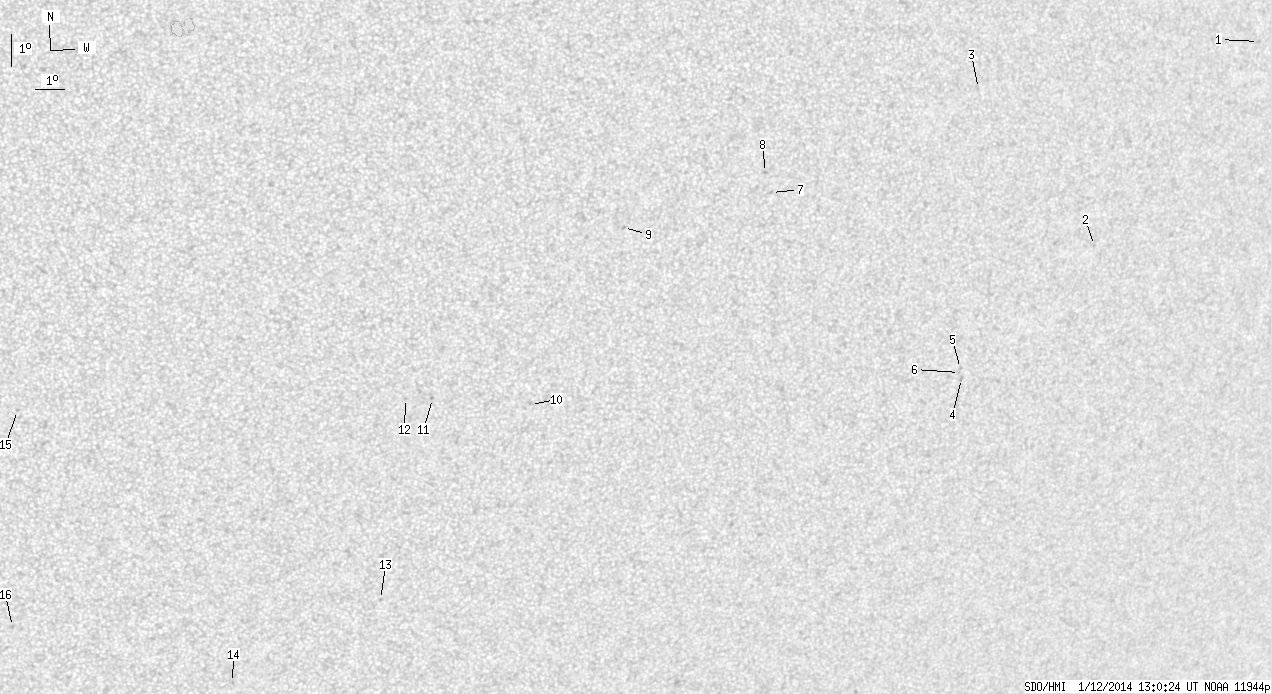

SDO HMI 2014-01-12 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.98 | 0.00 | 10.55 | -22.55 | 61.17 | 23.66 | 225.70 | 0.5248 | -376.1 | -235.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.86 | -12.52 | 80.27 | 42.76 | 256.21 | 0.6848 | -539.0 | -514.1 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -18.93 | 75.18 | 37.67 | 245.16 | 0.6394 | 621.0 | 499.5 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -14.38 | 69.86 | 32.35 | 250.19 | 0.5531 | -606.0 | -472.2 | |
| 0.00 | 2.12 | 0.00 | 1.33 | -23.21 | 71.17 | 33.67 | 236.60 | 0.6126 | 659.0 | 534.2 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -22.91 | 71.05 | 33.54 | 236.98 | 0.6093 | 572.0 | 492.7 | |
| 0.00 | 0.76 | 0.00 | 0.48 | -23.03 | 71.05 | 33.54 | 236.79 | 0.6100 | 678.0 | 579.3 | |
| 0.00 | 0.93 | 0.00 | 0.53 | -17.76 | 63.11 | 25.61 | 239.75 | 0.4785 | -681.0 | -496.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -17.16 | 62.82 | 25.31 | 240.65 | 0.4706 | -840.0 | -614.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.95 | 58.28 | 20.77 | 232.44 | 0.4249 | -779.0 | -657.1 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -24.49 | 55.92 | 18.41 | 219.48 | 0.4540 | -717.0 | -584.3 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -24.36 | 52.59 | 15.08 | 214.43 | 0.4210 | -727.0 | -583.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -24.38 | 51.69 | 14.18 | 212.83 | 0.4132 | -824.0 | -600.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -30.85 | 51.68 | 14.17 | 205.07 | 0.4980 | -771.0 | -639.1 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -33.69 | 46.77 | 9.26 | 195.23 | 0.5119 | -755.0 | -654.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -24.86 | 38.99 | 1.48 | 183.82 | 0.3540 | -773.0 | -600.6 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -31.85 | 38.91 | 1.40 | 182.57 | 0.4653 | -536.0 | -492.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
