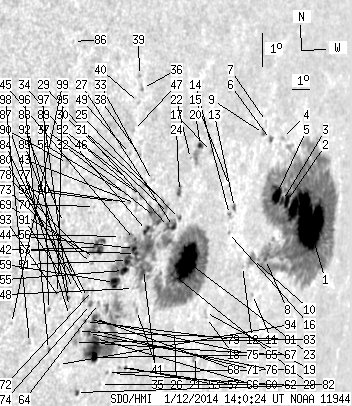

SDO HMI 2014-01-12 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 268.20 | 1457.51 | 297.38 | 1607.96 | -9.89 | 100.36 | 63.40 | 260.98 | 0.8906 | 370.3 | 137.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.19 | 717.72 | 140.28 | 913.60 | -9.03 | 104.87 | 67.91 | 261.99 | 0.9258 | 628.8 | 151.1 | |
| 6.03 | -1.00 | 7.30 | -1.00 | -8.61 | 103.09 | 66.13 | 262.47 | 0.9138 | 809.7 | 999999 | |
| 3.14 | -1.00 | 3.75 | -1.00 | -8.60 | 102.79 | 65.84 | 262.49 | 0.9117 | 775.0 | 999999 | |
| 0.34 | 1.87 | 0.40 | 2.19 | -6.76 | 102.25 | 65.29 | 264.53 | 0.9081 | 443.0 | 420.3 | |
| 12.15 | -1.00 | 14.26 | -1.00 | -8.46 | 102.31 | 65.35 | 262.66 | 0.9082 | 960.0 | 999999 | |
| 1.78 | 2.63 | 2.03 | 3.00 | -6.88 | 101.43 | 64.47 | 264.42 | 0.9020 | 395.6 | 326.3 | |
| 0.00 | 0.76 | 0.00 | 0.86 | -6.37 | 101.03 | 64.07 | 265.00 | 0.8991 | 363.0 | 326.8 | |
| 1.10 | -1.00 | 1.29 | -1.00 | -10.40 | 102.22 | 65.26 | 260.51 | 0.9075 | 588.8 | 999999 | |
| 0.93 | 2.72 | 1.04 | 3.04 | -6.73 | 100.91 | 63.95 | 264.60 | 0.8981 | 533.5 | 398.7 | |
| 5.44 | -1.00 | 6.14 | -1.00 | -10.46 | 101.31 | 64.35 | 260.44 | 0.9008 | 513.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 1.17 | -11.48 | 101.73 | 64.77 | 259.31 | 0.9040 | -430.0 | -366.5 | |
| 0.00 | 1.10 | 0.00 | 1.22 | -10.71 | 100.72 | 63.76 | 260.16 | 0.8964 | 98.0 | 99.8 | |
| 1.78 | 2.63 | 1.90 | 2.81 | -9.02 | 99.60 | 62.64 | 262.05 | 0.8876 | 553.3 | 445.9 | |
| 0.51 | 2.55 | 0.54 | 2.70 | -9.25 | 99.34 | 62.38 | 261.80 | 0.8855 | 627.0 | 525.9 | |
| 0.00 | 1.10 | 0.00 | 1.16 | -8.40 | 99.09 | 62.13 | 262.76 | 0.8835 | 486.0 | 416.7 | |
| 0.00 | 1.10 | 0.00 | 1.17 | -9.78 | 99.45 | 62.49 | 261.20 | 0.8864 | 284.0 | 384.8 | |
| 0.00 | 1.95 | 0.00 | 1.97 | -7.47 | 97.72 | 60.76 | 263.83 | 0.8723 | 428.0 | 413.2 | |
| 0.00 | 0.85 | 0.00 | 0.89 | -12.36 | 98.97 | 62.01 | 258.27 | 0.8830 | 346.0 | 262.0 | |
| 0.00 | 1.53 | 0.00 | 1.59 | -12.21 | 98.85 | 61.89 | 258.42 | 0.8820 | -12.0 | 32.5 | |
| 2.21 | 11.64 | 2.17 | 11.43 | -7.34 | 97.02 | 60.07 | 263.99 | 0.8663 | 615.1 | 519.2 | |
| 0.51 | 3.06 | 0.53 | 3.18 | -13.54 | 98.77 | 61.81 | 256.91 | 0.8817 | -469.2 | -469.2 | |
| 0.00 | 0.93 | 0.00 | 0.91 | -7.76 | 96.52 | 59.56 | 263.51 | 0.8619 | -148.0 | 3.1 | |
| 41.47 | 474.15 | 41.02 | 453.39 | -10.79 | 97.13 | 60.18 | 260.00 | 0.8674 | 914.6 | 171.7 | |
| 2.80 | 5.01 | 2.69 | 4.81 | -8.77 | 96.12 | 59.16 | 262.34 | 0.8583 | -450.6 | -277.9 | |
| 0.93 | 2.55 | 0.90 | 2.46 | -9.56 | 96.33 | 59.38 | 261.42 | 0.8603 | 612.6 | 587.3 | |
| 0.00 | 0.85 | 0.00 | 0.84 | -12.86 | 97.16 | 60.20 | 257.61 | 0.8682 | 222.0 | 239.6 | |
| 2.29 | -23.00 | 2.20 | -23.00 | -9.81 | 96.05 | 59.10 | 261.11 | 0.8578 | 685.7 | 999999 | |
| 0.93 | -23.00 | 0.90 | -23.00 | -11.23 | 96.44 | 59.48 | 259.48 | 0.8615 | 976.5 | 999999 | |
| 1.87 | -23.00 | 1.77 | -23.00 | -9.83 | 95.77 | 58.81 | 261.09 | 0.8553 | 733.0 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.89 | -9.45 | 95.66 | 58.70 | 261.53 | 0.8543 | 343.0 | 361.5 | |
| 0.00 | 2.21 | 0.00 | 2.07 | -9.09 | 95.22 | 58.26 | 261.95 | 0.8502 | 2.0 | -12.9 | |
| 11.64 | -23.00 | 10.80 | -23.00 | -9.59 | 94.89 | 57.94 | 261.36 | 0.8473 | 237.8 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.56 | -8.54 | 94.52 | 57.56 | 262.60 | 0.8438 | -374.0 | -293.0 | |
| 3.31 | -23.00 | 3.04 | -23.00 | -10.03 | 94.56 | 57.60 | 260.83 | 0.8444 | -423.9 | 999999 | |
| 9.94 | -23.00 | 9.19 | -23.00 | -11.18 | 94.73 | 57.78 | 259.47 | 0.8463 | 393.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.52 | -5.87 | 93.45 | 56.49 | 265.79 | 0.8339 | -422.0 | -346.8 | |
| 0.00 | 3.65 | 0.00 | 3.31 | -9.02 | 94.02 | 57.06 | 262.02 | 0.8391 | -512.0 | -402.3 | |
| 0.00 | 0.93 | 0.00 | 0.84 | -7.85 | 93.70 | 56.74 | 263.42 | 0.8360 | -409.0 | -351.1 | |
| 0.00 | 1.27 | 0.00 | 1.13 | -5.50 | 93.23 | 56.27 | 266.25 | 0.8318 | -416.0 | -358.9 | |
| 0.00 | 0.93 | 0.00 | 0.83 | -6.30 | 93.30 | 56.34 | 265.28 | 0.8323 | -510.0 | -409.3 | |
| 0.00 | 1.02 | 0.00 | 0.94 | -12.41 | 94.74 | 57.78 | 258.01 | 0.8468 | 156.0 | 87.8 | |
| 1.27 | -23.00 | 1.16 | -23.00 | -10.74 | 94.15 | 57.19 | 259.97 | 0.8407 | -411.5 | 999999 | |
| 0.00 | 5.10 | 0.00 | 4.58 | -9.27 | 93.75 | 56.79 | 261.71 | 0.8367 | -508.0 | -461.2 | |
| 2.29 | -23.00 | 2.08 | -23.00 | -10.60 | 94.05 | 57.09 | 260.14 | 0.8398 | -392.4 | 999999 | |
| 0.68 | -23.00 | 0.62 | -23.00 | -10.33 | 93.98 | 57.02 | 260.45 | 0.8390 | 565.4 | 999999 | |
| 0.51 | 1.70 | 0.46 | 1.52 | -8.89 | 93.60 | 56.65 | 262.16 | 0.8352 | -522.2 | -435.7 | |
| 0.00 | 1.36 | 0.00 | 1.20 | -7.14 | 93.18 | 56.22 | 264.28 | 0.8311 | -295.0 | -295.3 | |
| 0.00 | 0.93 | 0.00 | 0.85 | -11.77 | 94.36 | 57.40 | 258.75 | 0.8430 | -218.0 | -196.5 | |
| 0.00 | 0.85 | 0.00 | 0.75 | -7.82 | 93.15 | 56.19 | 263.45 | 0.8308 | -499.0 | -397.2 | |
| 0.00 | 0.93 | 0.00 | 0.83 | -9.26 | 93.42 | 56.46 | 261.72 | 0.8335 | -576.0 | -466.3 | |
| 4.59 | -23.00 | 4.13 | -23.00 | -10.97 | 93.77 | 56.81 | 259.68 | 0.8373 | -640.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.90 | -8.57 | 93.09 | 56.14 | 262.55 | 0.8303 | -368.0 | -317.8 | |
| 0.76 | 1.44 | 0.71 | 1.34 | -14.13 | 94.76 | 57.80 | 255.98 | 0.8479 | 426.7 | 397.8 | |
| 0.00 | 2.04 | 0.00 | 1.80 | -9.01 | 93.14 | 56.18 | 262.01 | 0.8308 | -604.0 | -554.9 | |
| 4.16 | -23.00 | 3.74 | -23.00 | -11.28 | 93.64 | 56.69 | 259.30 | 0.8362 | -746.3 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.30 | -10.29 | 93.20 | 56.24 | 260.47 | 0.8316 | -336.0 | -263.2 | |
| 0.00 | 1.19 | 0.00 | 1.09 | -14.15 | 94.42 | 57.46 | 255.93 | 0.8449 | 621.0 | 560.1 | |
| 0.00 | 0.76 | 0.00 | 0.67 | -9.27 | 92.72 | 55.76 | 261.68 | 0.8268 | -713.0 | -663.3 | |
| 7.14 | -23.00 | 6.35 | -23.00 | -11.66 | 93.27 | 56.31 | 258.82 | 0.8328 | -679.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.40 | -14.35 | 94.10 | 57.14 | 255.67 | 0.8421 | 184.0 | 321.4 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -14.34 | 93.82 | 56.86 | 255.66 | 0.8395 | 658.0 | 559.1 | |
| 0.00 | 0.85 | 0.00 | 0.77 | -14.71 | 93.57 | 56.62 | 255.19 | 0.8375 | 518.0 | 461.8 | |
| 10.79 | 19.12 | 9.32 | 16.49 | -10.68 | 92.12 | 55.17 | 259.95 | 0.8214 | -660.1 | -557.9 | |
| 0.00 | 1.87 | 0.00 | 1.64 | -12.33 | 92.61 | 55.65 | 257.98 | 0.8269 | -475.0 | -371.5 | |
| 1.70 | 118.05 | 1.50 | 104.98 | -13.52 | 92.90 | 55.94 | 256.57 | 0.8304 | 55.8 | 216.7 | |
| 1.78 | -65.00 | 1.57 | -65.00 | -13.37 | 92.80 | 55.84 | 256.73 | 0.8293 | -381.0 | 999999 | |
| 4.76 | -65.00 | 4.21 | -65.00 | -13.94 | 92.94 | 55.99 | 256.06 | 0.8311 | 913.8 | 999999 | |
| 2.55 | -65.00 | 2.23 | -65.00 | -12.79 | 92.54 | 55.58 | 257.42 | 0.8265 | -515.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.88 | -10.99 | 92.00 | 55.04 | 259.57 | 0.8202 | -421.0 | -356.2 | |
| 0.00 | 0.68 | 0.00 | 0.58 | -9.49 | 91.61 | 54.65 | 261.39 | 0.8159 | -535.0 | -460.0 | |
| 0.93 | -65.00 | 0.82 | -65.00 | -13.14 | 92.61 | 55.65 | 256.99 | 0.8274 | -387.0 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.47 | -11.97 | 92.18 | 55.22 | 258.39 | 0.8225 | -368.0 | -316.9 | |
| 0.00 | 0.85 | 0.00 | 0.73 | -11.17 | 91.89 | 54.93 | 259.34 | 0.8193 | -446.0 | -350.6 | |
| 1.10 | 2.63 | 0.96 | 2.28 | -12.39 | 92.20 | 55.24 | 257.88 | 0.8229 | -569.2 | -455.7 | |
| 0.00 | 0.68 | 0.00 | 0.59 | -12.83 | 92.29 | 55.33 | 257.35 | 0.8241 | -486.0 | -477.6 | |
| 0.59 | -65.00 | 0.52 | -65.00 | -13.25 | 92.37 | 55.42 | 256.85 | 0.8252 | -299.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.88 | -12.19 | 91.98 | 55.02 | 258.11 | 0.8207 | -509.0 | -543.5 | |
| 0.00 | 0.93 | 0.00 | 0.80 | -10.98 | 91.63 | 54.67 | 259.56 | 0.8166 | -500.0 | -510.5 | |
| 0.42 | 1.44 | 0.37 | 1.25 | -12.90 | 92.10 | 55.14 | 257.24 | 0.8223 | -527.2 | -506.6 | |
| 0.00 | 2.21 | 0.00 | 1.90 | -12.20 | 91.82 | 54.86 | 258.08 | 0.8192 | -688.0 | -540.6 | |
| 0.00 | 3.40 | 0.00 | 2.92 | -13.22 | 91.78 | 54.82 | 256.83 | 0.8194 | -561.0 | -494.6 | |
| 1.53 | 2.63 | 1.34 | 2.31 | -15.03 | 92.38 | 55.42 | 254.69 | 0.8266 | 580.4 | 475.1 | |
| 0.00 | 3.40 | 0.00 | 2.92 | -13.56 | 91.73 | 54.78 | 256.42 | 0.8192 | 157.0 | 76.9 | |
| 0.00 | 0.93 | 0.00 | 0.79 | -11.97 | 91.18 | 54.22 | 258.32 | 0.8126 | -622.0 | -553.8 | |
| 0.00 | 0.68 | 0.00 | 0.57 | -11.61 | 91.07 | 54.12 | 258.75 | 0.8114 | -525.0 | -523.8 | |
| 0.00 | 0.68 | 0.00 | 0.55 | -4.70 | 89.74 | 52.79 | 267.35 | 0.7968 | -550.0 | -508.2 | |
| 0.00 | 1.61 | 0.00 | 1.37 | -12.77 | 91.21 | 54.26 | 257.33 | 0.8136 | -405.0 | -324.0 | |
| 0.00 | 1.02 | 0.00 | 0.86 | -12.51 | 91.13 | 54.17 | 257.65 | 0.8126 | -518.0 | -433.5 | |
| 0.85 | 3.74 | 0.72 | 3.14 | -12.25 | 91.00 | 54.04 | 257.96 | 0.8111 | -612.7 | -589.6 | |
| 0.00 | 3.06 | 0.00 | 2.51 | -8.31 | 89.99 | 53.03 | 262.82 | 0.7991 | -618.0 | -611.1 | |
| 0.00 | 0.76 | 0.00 | 0.64 | -11.84 | 90.83 | 53.87 | 258.46 | 0.8091 | -694.0 | -640.2 | |
| 0.00 | 1.70 | 0.00 | 1.40 | -10.05 | 90.16 | 53.20 | 260.64 | 0.8014 | -638.0 | -516.9 | |
| 0.00 | 0.85 | 0.00 | 0.71 | -12.30 | 90.60 | 53.65 | 257.87 | 0.8071 | -447.0 | -430.1 | |
| 0.00 | 1.02 | 0.00 | 0.86 | -14.25 | 91.13 | 54.18 | 255.50 | 0.8139 | -345.0 | -288.4 | |
| 0.00 | 1.02 | 0.00 | 0.85 | -12.16 | 90.41 | 53.45 | 258.02 | 0.8051 | -594.0 | -490.1 | |
| 0.51 | 1.53 | 0.43 | 1.28 | -13.84 | 90.47 | 53.52 | 255.94 | 0.8070 | -204.0 | -268.2 | |
| 0.00 | 1.19 | 0.00 | 0.98 | -12.66 | 90.10 | 53.14 | 257.38 | 0.8023 | -452.0 | -462.6 | |
| 0.00 | 1.87 | 0.00 | 1.52 | -13.69 | 89.46 | 52.50 | 256.03 | 0.7966 | -581.0 | -455.6 | |
| 0.00 | 0.85 | 0.00 | 0.68 | -13.18 | 88.41 | 51.45 | 256.56 | 0.7853 | -524.0 | -483.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
