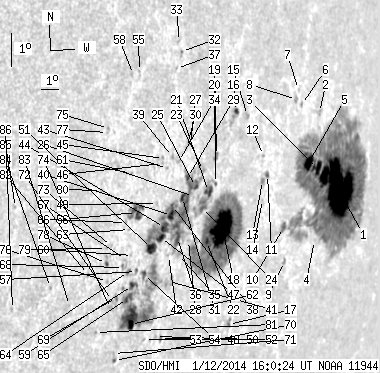

SDO HMI 2014-01-12 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 247.48 | 1352.07 | 286.38 | 1554.06 | -9.90 | 100.52 | 64.66 | 260.98 | 0.9002 | 354.7 | 144.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.28 | 659.37 | 143.26 | 882.03 | -9.07 | 104.86 | 69.00 | 261.93 | 0.9327 | 581.9 | 141.6 | |
| 0.00 | 2.97 | 0.00 | 3.70 | -6.98 | 102.69 | 66.83 | 264.24 | 0.9189 | 538.0 | 482.6 | |
| 8.24 | -1.00 | 10.38 | -1.00 | -8.63 | 103.06 | 67.21 | 262.44 | 0.9212 | 799.7 | 999999 | |
| 0.00 | 0.93 | 0.00 | 1.21 | -10.74 | 103.70 | 67.84 | 260.14 | 0.9252 | 244.0 | 258.5 | |
| 9.52 | -1.00 | 11.66 | -1.00 | -8.50 | 102.33 | 66.47 | 262.60 | 0.9162 | 949.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.80 | -6.84 | 101.31 | 65.45 | 264.44 | 0.9092 | 299.0 | 326.1 | |
| 0.00 | 0.68 | 0.00 | 0.79 | -6.41 | 100.99 | 65.13 | 264.92 | 0.9070 | 217.0 | 250.1 | |
| 0.00 | 2.55 | 0.00 | 2.96 | -6.72 | 100.92 | 65.06 | 264.59 | 0.9064 | 607.0 | 461.1 | |
| 0.00 | 2.29 | 0.00 | 2.74 | -11.50 | 101.73 | 65.87 | 259.31 | 0.9119 | -337.0 | -296.4 | |
| 3.82 | -1.00 | 4.48 | -1.00 | -10.51 | 101.23 | 65.37 | 260.39 | 0.9083 | 495.7 | 999999 | |
| 1.53 | 2.29 | 1.69 | 2.53 | -9.04 | 99.57 | 63.71 | 262.03 | 0.8960 | 553.8 | 450.0 | |
| 0.00 | 1.10 | 0.00 | 1.20 | -8.50 | 99.13 | 63.28 | 262.64 | 0.8926 | 520.0 | 451.2 | |
| 1.27 | 3.23 | 1.40 | 3.54 | -9.24 | 99.29 | 63.44 | 261.81 | 0.8939 | 587.1 | 475.4 | |
| 0.00 | 0.85 | 0.00 | 0.94 | -9.79 | 99.48 | 63.62 | 261.19 | 0.8953 | 551.0 | 493.8 | |
| 0.00 | 2.80 | 0.00 | 2.92 | -7.40 | 97.79 | 61.93 | 263.90 | 0.8820 | 539.0 | 333.2 | |
| 2.21 | 8.58 | 2.25 | 8.72 | -7.33 | 97.08 | 61.22 | 263.99 | 0.8762 | 615.7 | 524.6 | |
| 0.76 | 3.99 | 0.83 | 4.31 | -13.59 | 98.75 | 62.89 | 256.90 | 0.8902 | -466.4 | -386.6 | |
| 40.02 | 254.99 | 40.97 | 259.97 | -10.78 | 97.20 | 61.35 | 260.05 | 0.8772 | 864.8 | 206.6 | |
| 1.70 | 3.82 | 1.69 | 3.79 | -8.69 | 96.19 | 60.34 | 262.43 | 0.8686 | -482.8 | -329.2 | |
| 0.34 | 33.22 | 0.34 | 32.65 | -9.51 | 96.36 | 60.51 | 261.48 | 0.8700 | 517.5 | 476.9 | |
| 5.61 | -20.00 | 5.54 | -20.00 | -9.78 | 96.01 | 60.16 | 261.18 | 0.8671 | 725.7 | 999999 | |
| 1.95 | -18.00 | 1.95 | -18.00 | -11.25 | 96.37 | 60.52 | 259.49 | 0.8704 | 906.7 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.99 | -9.18 | 95.54 | 59.69 | 261.86 | 0.8629 | 289.0 | 270.5 | |
| 2.38 | -20.00 | 2.34 | -20.00 | -10.27 | 95.80 | 59.95 | 260.61 | 0.8653 | 473.6 | 999999 | |
| 1.53 | 281.67 | 1.48 | 261.53 | -9.68 | 95.21 | 59.35 | 261.28 | 0.8601 | 752.8 | 150.4 | |
| 0.00 | 1.78 | 0.00 | 1.72 | -9.98 | 95.18 | 59.32 | 260.93 | 0.8598 | 269.0 | 370.4 | |
| 0.00 | 0.59 | 0.00 | 0.56 | -8.44 | 94.58 | 58.73 | 262.73 | 0.8544 | -386.0 | -336.7 | |
| 0.00 | 1.10 | 0.00 | 1.07 | -11.29 | 95.29 | 59.44 | 259.41 | 0.8611 | 383.0 | 380.5 | |
| 1.95 | -25.00 | 1.86 | -25.00 | -9.44 | 94.67 | 58.82 | 261.55 | 0.8553 | -419.2 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.12 | -8.57 | 94.39 | 58.53 | 262.57 | 0.8526 | -380.0 | -288.8 | |
| 2.55 | -25.00 | 2.41 | -25.00 | -10.05 | 94.55 | 58.70 | 260.84 | 0.8543 | -425.8 | 999999 | |
| 0.34 | 2.04 | 0.31 | 1.88 | -5.77 | 93.54 | 57.68 | 265.89 | 0.8451 | -325.0 | -317.1 | |
| 0.00 | 0.42 | 0.00 | 0.39 | -5.48 | 93.38 | 57.53 | 266.23 | 0.8438 | -405.0 | -354.8 | |
| 0.00 | 1.53 | 0.00 | 1.43 | -9.01 | 94.04 | 58.18 | 262.05 | 0.8495 | -480.0 | -425.1 | |
| 0.00 | 2.80 | 0.00 | 2.68 | -11.73 | 94.85 | 59.00 | 258.87 | 0.8574 | -136.0 | -121.5 | |
| 4.84 | -25.00 | 4.60 | -25.00 | -11.24 | 94.63 | 58.77 | 259.44 | 0.8553 | 328.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.93 | -6.28 | 93.35 | 57.49 | 265.28 | 0.8432 | -427.0 | -377.0 | |
| 0.68 | -25.00 | 0.63 | -25.00 | -10.32 | 94.05 | 58.20 | 260.51 | 0.8499 | 551.5 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.73 | -8.88 | 93.66 | 57.81 | 262.20 | 0.8461 | -522.0 | -422.2 | |
| 4.42 | -25.00 | 4.13 | -25.00 | -10.61 | 94.08 | 58.23 | 260.16 | 0.8502 | -400.6 | 999999 | |
| 0.00 | 5.10 | 0.00 | 4.84 | -12.56 | 94.56 | 58.71 | 257.89 | 0.8551 | 191.0 | 119.1 | |
| 0.00 | 0.93 | 0.00 | 0.88 | -11.80 | 94.29 | 58.44 | 258.77 | 0.8524 | -344.0 | -243.1 | |
| 0.00 | 0.85 | 0.00 | 0.78 | -9.25 | 93.48 | 57.62 | 261.76 | 0.8444 | -660.0 | -557.9 | |
| 5.52 | -25.00 | 5.13 | -25.00 | -10.99 | 93.80 | 57.94 | 259.70 | 0.8477 | -573.0 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.46 | -8.97 | 93.18 | 57.33 | 262.08 | 0.8416 | -534.0 | -474.5 | |
| 0.00 | 0.76 | 0.00 | 0.70 | -9.12 | 93.16 | 57.31 | 261.91 | 0.8415 | -588.0 | -541.0 | |
| 4.25 | -25.00 | 3.93 | -25.00 | -11.30 | 93.67 | 57.81 | 259.33 | 0.8466 | -711.3 | 999999 | |
| 0.00 | 2.29 | 0.00 | 2.20 | -14.27 | 94.76 | 58.91 | 255.90 | 0.8578 | 427.0 | 322.0 | |
| 0.00 | 0.51 | 0.00 | 0.47 | -10.31 | 93.20 | 57.35 | 260.49 | 0.8420 | -263.0 | -246.7 | |
| 0.00 | 1.36 | 0.00 | 1.29 | -14.23 | 94.45 | 58.59 | 255.93 | 0.8550 | 482.0 | 432.4 | |
| 7.48 | -25.00 | 6.84 | -25.00 | -11.65 | 93.27 | 57.42 | 258.90 | 0.8431 | -659.4 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.32 | -14.34 | 94.09 | 58.23 | 255.77 | 0.8519 | 141.0 | 173.5 | |
| 0.00 | 0.85 | 0.00 | 0.79 | -14.36 | 93.86 | 58.00 | 255.74 | 0.8499 | 652.0 | 576.6 | |
| 2.12 | -25.00 | 1.94 | -25.00 | -12.44 | 93.08 | 57.23 | 257.94 | 0.8418 | -304.8 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.67 | -6.49 | 91.38 | 55.52 | 265.06 | 0.8243 | -567.0 | -479.3 | |
| 11.13 | 17.84 | 9.88 | 15.83 | -10.64 | 92.14 | 56.28 | 260.05 | 0.8321 | -619.5 | -542.3 | |
| 0.00 | 1.87 | 0.00 | 1.69 | -12.38 | 92.67 | 56.82 | 258.00 | 0.8379 | -371.0 | -328.6 | |
| 0.00 | 0.76 | 0.00 | 0.66 | -6.60 | 91.08 | 55.22 | 264.94 | 0.8214 | -469.0 | -445.3 | |
| 3.65 | -25.00 | 3.29 | -25.00 | -12.80 | 92.59 | 56.74 | 257.48 | 0.8374 | -390.9 | 999999 | |
| 0.00 | 0.42 | 0.00 | 0.38 | -11.92 | 92.30 | 56.45 | 258.52 | 0.8342 | -276.0 | -307.4 | |
| 0.00 | 1.10 | 0.00 | 0.97 | -9.51 | 91.57 | 55.71 | 261.40 | 0.8264 | -601.0 | -524.4 | |
| 4.84 | -25.00 | 4.41 | -25.00 | -13.96 | 92.91 | 57.05 | 256.13 | 0.8410 | 937.6 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.83 | -11.17 | 91.91 | 56.05 | 259.41 | 0.8301 | -390.0 | -348.4 | |
| 1.27 | 2.97 | 1.14 | 2.65 | -12.41 | 92.24 | 56.38 | 257.94 | 0.8339 | -550.7 | -446.6 | |
| 5.35 | -25.00 | 4.81 | -25.00 | -13.20 | 92.46 | 56.60 | 257.00 | 0.8364 | -358.7 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.75 | -10.97 | 91.69 | 55.83 | 259.64 | 0.8280 | -587.0 | -501.2 | |
| 0.00 | 0.59 | 0.00 | 0.53 | -12.06 | 91.96 | 56.11 | 258.33 | 0.8311 | -561.0 | -506.3 | |
| 0.00 | 2.72 | 0.00 | 2.41 | -12.30 | 91.93 | 56.08 | 258.04 | 0.8309 | -687.0 | -524.2 | |
| 0.00 | 2.21 | 0.00 | 1.95 | -13.21 | 91.86 | 56.00 | 256.94 | 0.8307 | -590.0 | -473.4 | |
| 0.00 | 1.70 | 0.00 | 1.53 | -15.08 | 92.45 | 56.60 | 254.76 | 0.8376 | 672.0 | 517.5 | |
| 0.00 | 1.10 | 0.00 | 0.99 | -14.87 | 92.31 | 56.46 | 254.99 | 0.8362 | 243.0 | 213.4 | |
| 0.00 | 1.27 | 0.00 | 1.12 | -13.31 | 91.67 | 55.82 | 256.81 | 0.8290 | -515.0 | -385.7 | |
| 0.00 | 1.10 | 0.00 | 0.96 | -11.72 | 91.11 | 55.25 | 258.69 | 0.8227 | -624.0 | -589.7 | |
| 0.00 | 3.06 | 0.00 | 2.69 | -13.55 | 91.65 | 55.79 | 256.51 | 0.8290 | 104.0 | 45.9 | |
| 0.00 | 0.93 | 0.00 | 0.79 | -8.26 | 90.09 | 54.23 | 262.89 | 0.8114 | -722.0 | -616.0 | |
| 0.00 | 1.19 | 0.00 | 1.03 | -12.77 | 91.22 | 55.36 | 257.43 | 0.8244 | -335.0 | -295.9 | |
| 0.00 | 1.27 | 0.00 | 1.07 | -8.38 | 90.06 | 54.21 | 262.75 | 0.8112 | -552.0 | -512.1 | |
| 0.93 | 3.23 | 0.81 | 2.79 | -12.24 | 91.00 | 55.14 | 258.05 | 0.8219 | -601.4 | -585.1 | |
| 0.00 | 0.93 | 0.00 | 0.80 | -11.80 | 90.86 | 55.01 | 258.58 | 0.8203 | -622.0 | -551.2 | |
| 0.00 | 1.02 | 0.00 | 0.86 | -10.11 | 90.14 | 54.28 | 260.62 | 0.8124 | -596.0 | -548.3 | |
| 0.00 | 1.10 | 0.00 | 0.96 | -14.31 | 91.11 | 55.26 | 255.55 | 0.8244 | -316.0 | -293.8 | |
| 0.00 | 1.19 | 0.00 | 1.01 | -12.62 | 90.17 | 54.31 | 257.53 | 0.8140 | -505.0 | -430.9 | |
| 0.00 | 0.59 | 0.00 | 0.50 | -13.59 | 89.50 | 53.64 | 256.27 | 0.8080 | -586.0 | -492.3 | |
| 0.00 | 0.68 | 0.00 | 0.55 | -13.11 | 88.38 | 52.52 | 256.75 | 0.7963 | -552.0 | -474.8 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -10.85 | 86.08 | 50.22 | 259.44 | 0.7701 | -572.0 | -486.0 | |
| 0.00 | 1.44 | 0.00 | 1.14 | -13.87 | 86.74 | 50.88 | 255.61 | 0.7800 | -573.0 | -398.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
