SDO HMI 2014-01-12 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 21.21 | 0.27 | 11.43 | 16.43 | 25.60 | -10.26 | 25.59 | 0.3950 | 82.2 | 73.5 | |
|
previous
or next observation for the same group /

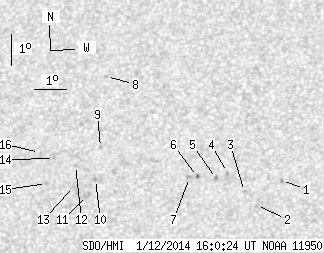

back to the solar disc SDO HMI 2014-01-12 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | 16.21 | 29.82 | -6.04 | 16.12 | 0.3656 | -808.0 | -657.6 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 15.43 | 29.07 | -6.79 | 18.69 | 0.3572 | -885.0 | -688.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 15.87 | 28.68 | -7.17 | 19.24 | 0.3661 | -690.0 | -575.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 16.48 | 28.14 | -7.72 | 20.00 | 0.3783 | -756.0 | -621.0 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 16.29 | 27.80 | -8.05 | 20.98 | 0.3774 | -876.0 | -726.8 | |
| 0.51 | 1.61 | 0.27 | 0.86 | 16.36 | 27.21 | -8.65 | 22.29 | 0.3819 | -890.2 | -774.5 | |
| 0.00 | 2.55 | 0.00 | 1.37 | 16.34 | 26.96 | -8.90 | 22.90 | 0.3831 | -709.0 | -615.5 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 19.60 | 24.16 | -11.70 | 25.34 | 0.4483 | 794.0 | 604.8 | |
| 0.00 | 0.59 | 0.00 | 0.32 | 17.33 | 24.12 | -11.74 | 27.89 | 0.4169 | 798.0 | 701.4 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 16.32 | 24.03 | -11.83 | 29.31 | 0.4036 | 983.0 | 812.5 | |
| 0.00 | 3.23 | 0.00 | 1.74 | 15.82 | 23.81 | -12.05 | 30.42 | 0.3985 | 812.0 | 785.9 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 16.77 | 23.37 | -12.49 | 30.07 | 0.4150 | 765.0 | 524.2 | |
| 0.00 | 0.76 | 0.00 | 0.41 | 16.11 | 23.35 | -12.51 | 30.96 | 0.4062 | 727.0 | 595.2 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 17.00 | 22.69 | -13.17 | 31.09 | 0.4236 | 885.0 | 760.1 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 16.22 | 22.49 | -13.37 | 32.50 | 0.4149 | 866.0 | 599.7 | |
| 0.00 | 0.59 | 0.00 | 0.33 | 17.20 | 22.20 | -13.66 | 31.76 | 0.4303 | 562.0 | 596.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
