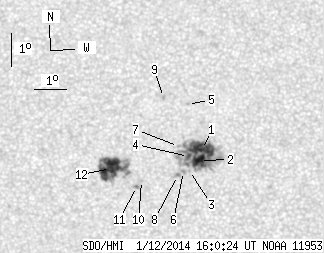

SDO HMI 2014-01-12 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.61 | 161.60 | 34.17 | 82.80 | -17.85 | 29.94 | -5.91 | 157.54 | 0.2563 | 100.9 | 269.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.29 | 97.04 | 9.85 | 49.60 | -17.57 | 31.00 | -4.85 | 160.67 | 0.2448 | 1276.6 | 546.7 | |
| 11.47 | -1.00 | 5.87 | -1.00 | -17.90 | 30.90 | -4.96 | 160.77 | 0.2507 | 1162.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -18.20 | 30.58 | -5.28 | 160.06 | 0.2573 | 552.0 | 482.0 | |
| 2.12 | -1.00 | 1.09 | -1.00 | -17.78 | 30.56 | -5.29 | 159.38 | 0.2507 | 879.0 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.30 | -16.20 | 30.58 | -5.28 | 156.87 | 0.2259 | 825.0 | 704.4 | |
| 0.00 | 2.12 | 0.00 | 1.09 | -18.23 | 30.39 | -5.46 | 159.45 | 0.2589 | 837.0 | 670.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -17.47 | 30.26 | -5.60 | 157.85 | 0.2478 | 597.0 | 524.7 | |
| 0.00 | 2.80 | 0.00 | 1.44 | -18.35 | 30.20 | -5.66 | 158.97 | 0.2619 | 810.0 | 540.1 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -15.99 | 29.84 | -6.01 | 153.64 | 0.2278 | 990.0 | 730.2 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -18.49 | 29.07 | -6.79 | 155.50 | 0.2714 | -729.0 | -512.5 | |
| 0.34 | 2.12 | 0.18 | 1.09 | -18.67 | 28.91 | -6.95 | 155.28 | 0.2753 | -953.8 | -780.2 | |
| 33.39 | 52.26 | 17.18 | 26.89 | -18.12 | 28.12 | -7.74 | 151.90 | 0.2730 | -1097.7 | -694.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
