SDO HMI 2014-01-12 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.12 | 0.00 | 6.53 | -21.16 | 61.41 | 26.11 | 232.18 | 0.5243 | -332.0 | -322.9 | |
|
previous
or next observation for the same group /

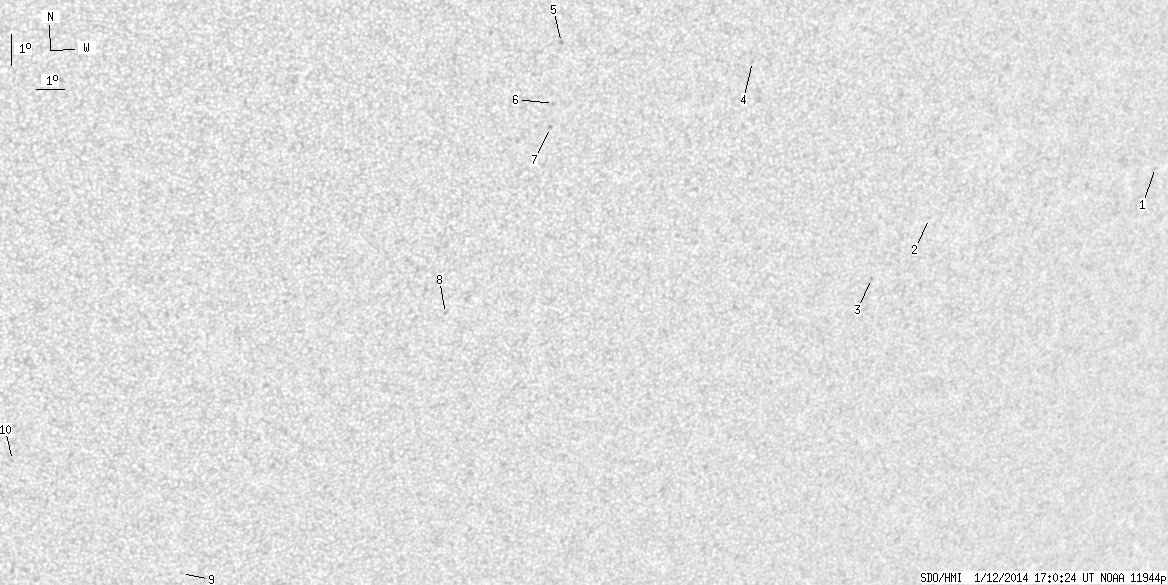

back to the solar disc SDO HMI 2014-01-12 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.75 | -19.07 | 81.71 | 46.41 | 247.96 | 0.7408 | 314.0 | 407.5 | |
| 0.00 | 0.51 | 0.00 | 0.33 | -21.07 | 72.79 | 37.48 | 241.91 | 0.6460 | 786.0 | 675.5 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -23.01 | 71.07 | 35.76 | 238.17 | 0.6355 | 790.0 | 709.5 | |
| 0.00 | 1.19 | 0.00 | 0.69 | -16.56 | 65.12 | 29.82 | 245.02 | 0.5279 | -686.0 | -544.7 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -16.20 | 58.50 | 23.20 | 240.72 | 0.4355 | -817.0 | -673.6 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -18.04 | 58.48 | 23.17 | 236.94 | 0.4483 | -868.0 | -741.5 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -18.78 | 58.48 | 23.17 | 235.52 | 0.4539 | -783.0 | -667.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -24.60 | 55.81 | 20.50 | 222.18 | 0.4763 | -735.0 | -606.7 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -33.21 | 47.90 | 12.60 | 200.61 | 0.5204 | -622.0 | -555.3 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -29.53 | 41.61 | 6.31 | 192.62 | 0.4392 | -699.0 | -565.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
