SDO HMI 2014-01-12 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.25 | 492.42 | 47.50 | 268.27 | -16.45 | 13.52 | -21.78 | 121.25 | 0.4179 | 1114.9 | 379.4 | |
|
previous
or next observation for the same group /

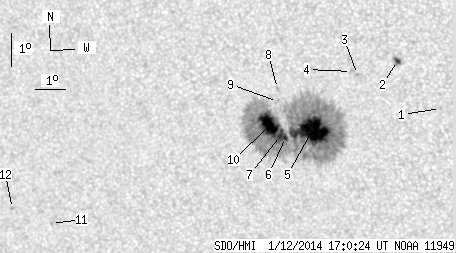

back to the solar disc SDO HMI 2014-01-12 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.49 | -15.94 | 18.27 | -17.04 | 126.06 | 0.3500 | 858.0 | 666.3 | |
| 2.38 | 4.59 | 1.26 | 2.43 | -14.47 | 17.02 | -18.28 | 120.70 | 0.3549 | 1039.5 | 797.2 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -14.86 | 15.70 | -19.61 | 120.04 | 0.3764 | -905.0 | -758.9 | |
| 0.00 | 2.38 | 0.00 | 1.27 | -14.76 | 15.51 | -19.79 | 119.60 | 0.3783 | -802.0 | -559.2 | |
| 52.76 | 477.91 | 28.65 | 260.36 | -16.53 | 14.01 | -21.29 | 121.92 | 0.4119 | 1345.3 | 390.3 | |
| 1.95 | -5.00 | 1.07 | -5.00 | -16.69 | 13.13 | -22.17 | 121.32 | 0.4250 | 1087.7 | 999999 | |
| 5.61 | -5.00 | 3.07 | -5.00 | -16.62 | 12.97 | -22.33 | 121.02 | 0.4266 | 1202.9 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -15.21 | 13.04 | -22.26 | 118.04 | 0.4160 | 769.0 | 583.9 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -15.59 | 13.00 | -22.31 | 118.85 | 0.4192 | 661.0 | 416.8 | |
| 24.55 | -5.00 | 13.45 | -5.00 | -16.31 | 12.65 | -22.66 | 120.04 | 0.4289 | 1256.3 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -19.02 | 4.65 | -30.66 | 118.72 | 0.5519 | -672.0 | -621.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -18.51 | 3.33 | -31.98 | 117.05 | 0.5660 | -750.0 | -633.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
