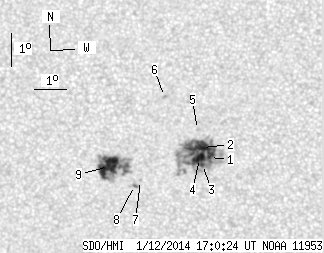

SDO HMI 2014-01-12 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.84 | 172.22 | 24.52 | 88.15 | -17.86 | 29.98 | -5.32 | 159.58 | 0.2528 | -48.4 | 253.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 109.86 | 0.74 | 56.12 | -17.85 | 31.22 | -4.08 | 163.89 | 0.2453 | 1171.1 | 591.7 | |
| 9.86 | -1.00 | 5.03 | -1.00 | -17.55 | 31.01 | -4.29 | 162.73 | 0.2414 | 1363.2 | 999999 | |
| 1.70 | -1.00 | 0.87 | -1.00 | -18.06 | 31.00 | -4.30 | 163.33 | 0.2498 | 874.2 | 999999 | |
| 8.67 | -1.00 | 4.43 | -1.00 | -17.88 | 30.91 | -4.39 | 162.78 | 0.2473 | 1274.3 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -17.00 | 30.87 | -4.43 | 161.45 | 0.2334 | 834.0 | 719.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -16.00 | 29.88 | -5.42 | 155.91 | 0.2236 | 999.0 | 803.7 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -18.53 | 29.05 | -6.25 | 157.27 | 0.2684 | -902.0 | -639.8 | |
| 0.00 | 2.46 | 0.00 | 1.27 | -18.68 | 28.86 | -6.45 | 156.87 | 0.2720 | -920.0 | -788.4 | |
| 26.17 | 56.25 | 13.45 | 28.90 | -18.10 | 28.07 | -7.23 | 153.42 | 0.2687 | -1154.0 | -662.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
