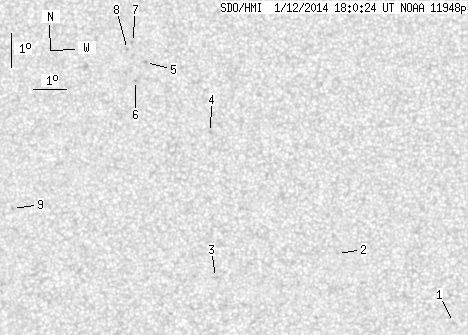

SDO HMI 2014-01-12 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.11 | 0.00 | 5.62 | -10.45 | 26.18 | -8.57 | 127.10 | 0.1978 | 864.4 | 660.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.64 | -15.06 | 33.60 | -1.15 | 174.07 | 0.1887 | 896.0 | 654.1 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -12.98 | 30.10 | -4.65 | 152.42 | 0.1715 | 758.0 | 568.7 | |
| 0.00 | 2.12 | 0.00 | 1.08 | -13.66 | 26.36 | -8.39 | 139.08 | 0.2174 | 744.0 | 576.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -9.35 | 26.35 | -8.41 | 121.67 | 0.1703 | 881.0 | 666.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.26 | 24.44 | -10.31 | 106.60 | 0.1862 | 1053.0 | 853.2 | |
| 0.00 | 0.76 | 0.00 | 0.39 | -7.79 | 24.12 | -10.63 | 108.79 | 0.1940 | 936.0 | 725.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.67 | 24.06 | -10.69 | 103.03 | 0.1900 | 892.0 | 708.1 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -6.87 | 23.90 | -10.85 | 103.90 | 0.1934 | 851.0 | 622.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -11.51 | 20.20 | -14.55 | 117.47 | 0.2787 | 769.0 | 609.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
