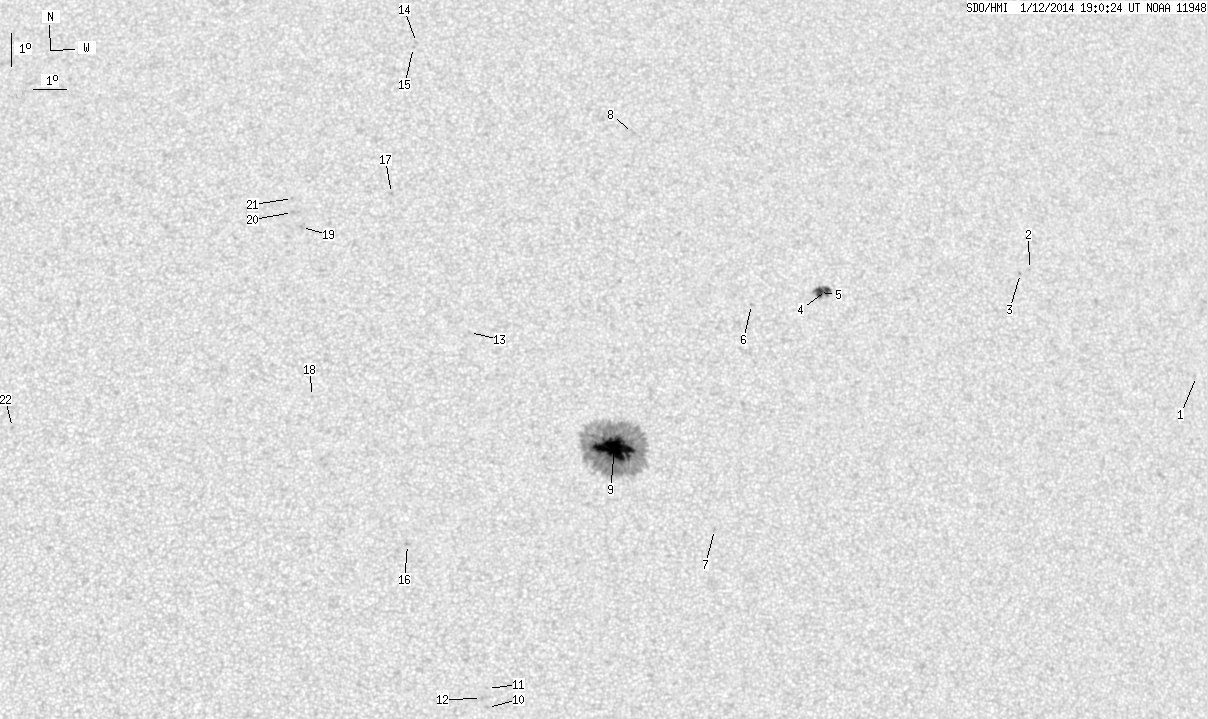

SDO HMI 2014-01-12 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.49 | 314.11 | 29.18 | 161.51 | 5.95 | 45.37 | 11.18 | 311.18 | 0.2653 | -694.5 | -394.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.20 | 8.07 | 63.97 | 29.77 | 292.59 | 0.5345 | -549.0 | -533.5 | |
| 0.00 | 0.76 | 0.00 | 0.43 | 11.14 | 58.62 | 24.42 | 302.62 | 0.4836 | -743.0 | -557.9 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 11.01 | 58.31 | 24.11 | 302.71 | 0.4786 | -773.0 | -629.4 | |
| 3.91 | 14.10 | 2.10 | 7.58 | 10.32 | 52.02 | 17.82 | 309.58 | 0.3924 | -966.2 | -729.2 | |
| 5.86 | -4.00 | 3.15 | -4.00 | 10.26 | 51.80 | 17.60 | 309.80 | 0.3889 | -1085.6 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.50 | 9.85 | 49.65 | 15.45 | 312.64 | 0.3584 | 704.0 | 565.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 3.07 | 48.30 | 14.10 | 297.38 | 0.2753 | 954.0 | 759.3 | |
| 0.00 | 2.46 | 0.00 | 1.32 | 15.08 | 46.24 | 12.04 | 328.62 | 0.3886 | -685.0 | -576.0 | |
| 46.72 | 276.27 | 23.93 | 141.52 | 5.44 | 45.31 | 11.12 | 311.15 | 0.2561 | -1435.6 | -456.4 | |
| 0.00 | 1.19 | 0.00 | 0.59 | -2.28 | 41.47 | 7.27 | 285.31 | 0.1317 | 881.0 | 697.6 | |
| 0.00 | 0.85 | 0.00 | 0.42 | -1.72 | 41.47 | 7.27 | 289.34 | 0.1346 | 806.0 | 648.3 | |
| 0.00 | 1.70 | 0.00 | 0.85 | -2.02 | 41.29 | 7.09 | 287.64 | 0.1301 | 863.0 | 704.8 | |
| 0.00 | 0.93 | 0.00 | 0.48 | 8.88 | 41.03 | 6.83 | 332.69 | 0.2572 | -799.0 | -613.4 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 17.85 | 39.65 | 5.45 | 346.51 | 0.3891 | 824.0 | 658.8 | |
| 0.00 | 0.93 | 0.00 | 0.50 | 17.69 | 39.55 | 5.35 | 346.64 | 0.3862 | 771.0 | 609.3 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 2.52 | 39.10 | 4.90 | 324.21 | 0.1467 | 825.0 | 638.8 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 13.11 | 38.76 | 4.56 | 345.48 | 0.3103 | -885.0 | -617.4 | |
| 0.00 | 1.10 | 0.00 | 0.56 | 6.93 | 36.32 | 2.12 | 349.33 | 0.1990 | 805.0 | 572.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.06 | 36.02 | 1.82 | 353.69 | 0.2846 | 913.0 | 776.1 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 12.52 | 35.75 | 1.56 | 354.77 | 0.2918 | 831.0 | 726.8 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 12.95 | 35.76 | 1.56 | 354.89 | 0.2990 | 699.0 | 581.7 | |
| 0.00 | 1.10 | 0.00 | 0.56 | 6.04 | 27.41 | -6.79 | 33.33 | 0.2151 | 900.0 | 689.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
