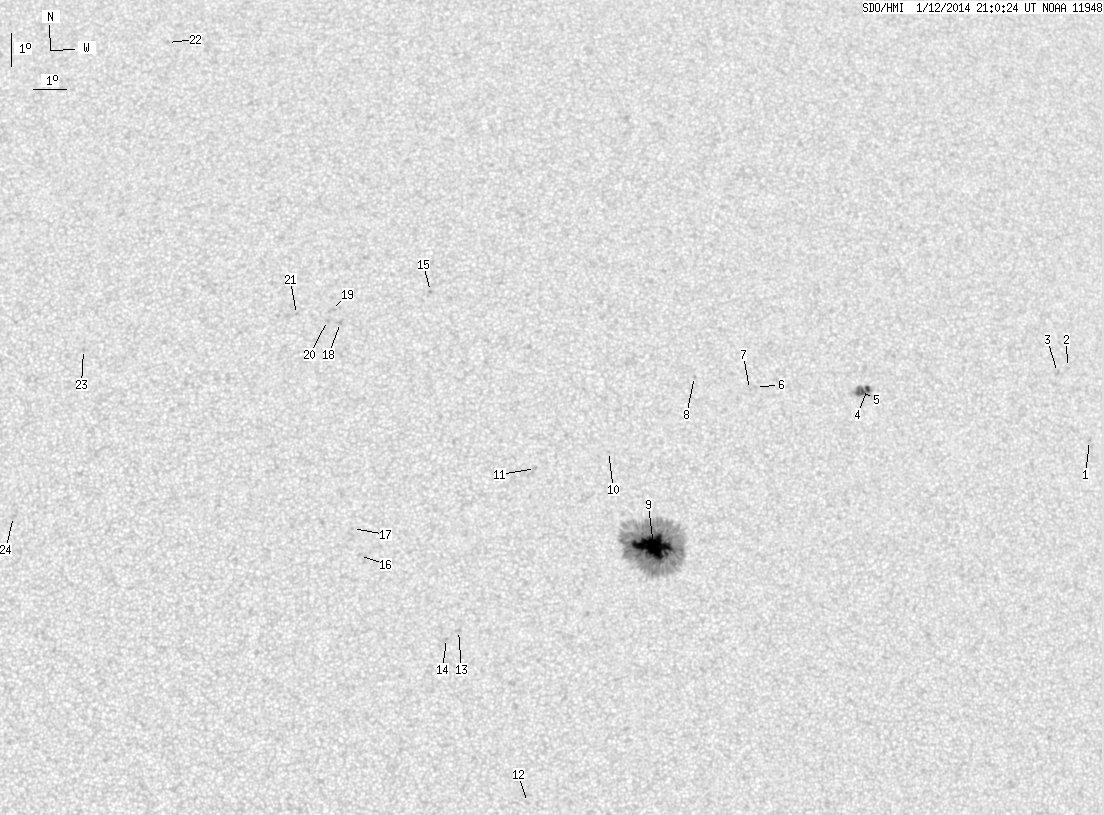

SDO HMI 2014-01-12 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.60 | 324.07 | 27.76 | 167.37 | 6.01 | 45.26 | 12.17 | 310.65 | 0.2803 | -759.9 | -392.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.82 | 8.96 | 59.25 | 26.16 | 297.02 | 0.4909 | -705.0 | -520.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 11.17 | 58.71 | 25.62 | 301.47 | 0.4994 | -667.0 | -464.9 | |
| 0.00 | 2.04 | 0.00 | 1.16 | 11.00 | 58.37 | 25.27 | 301.53 | 0.4937 | -647.0 | -582.8 | |
| 2.12 | 13.93 | 1.15 | 7.54 | 10.34 | 52.15 | 19.06 | 307.77 | 0.4082 | -824.3 | -729.0 | |
| 4.67 | -4.00 | 2.53 | -4.00 | 10.24 | 51.93 | 18.83 | 307.91 | 0.4044 | -1115.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 10.29 | 48.63 | 15.54 | 313.42 | 0.3646 | -655.0 | -616.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 10.23 | 48.44 | 15.35 | 313.64 | 0.3616 | -748.0 | -604.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 10.59 | 46.76 | 13.67 | 317.69 | 0.3466 | -802.0 | -614.0 | |
| 46.81 | 280.44 | 24.08 | 144.25 | 5.44 | 45.33 | 12.24 | 308.48 | 0.2708 | -1423.8 | -441.9 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 8.28 | 44.04 | 10.95 | 319.06 | 0.2881 | -688.0 | -491.8 | |
| 0.00 | 0.93 | 0.00 | 0.48 | 7.74 | 41.82 | 8.73 | 324.12 | 0.2578 | -827.0 | -685.5 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -2.19 | 41.50 | 8.40 | 283.91 | 0.1512 | 739.0 | 527.0 | |
| 0.00 | 2.38 | 0.00 | 1.19 | 2.87 | 39.46 | 6.36 | 318.40 | 0.1675 | 929.0 | 685.8 | |
| 0.00 | 0.93 | 0.00 | 0.47 | 2.63 | 39.10 | 6.00 | 319.08 | 0.1603 | 852.0 | 680.8 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 13.11 | 38.78 | 5.69 | 342.11 | 0.3156 | -883.0 | -702.8 | |
| 0.00 | 0.59 | 0.00 | 0.30 | 5.09 | 36.54 | 3.44 | 339.88 | 0.1747 | 793.0 | 651.6 | |
| 0.00 | 0.93 | 0.00 | 0.47 | 5.90 | 36.33 | 3.24 | 342.39 | 0.1867 | 741.0 | 593.5 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 12.14 | 36.04 | 2.94 | 349.95 | 0.2889 | 930.0 | 774.4 | |
| 0.00 | 3.06 | 0.00 | 1.58 | 12.51 | 35.77 | 2.68 | 351.05 | 0.2942 | 690.0 | 675.6 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 12.20 | 35.65 | 2.55 | 351.29 | 0.2888 | 760.0 | 740.4 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 12.38 | 34.71 | 1.62 | 354.52 | 0.2899 | 610.0 | 555.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 20.99 | 30.72 | -2.37 | 5.16 | 0.4309 | 553.0 | 464.4 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 11.33 | 28.30 | -4.80 | 16.93 | 0.2829 | 903.0 | 701.0 | |
| 0.00 | 2.12 | 0.00 | 1.08 | 6.29 | 26.27 | -6.82 | 32.75 | 0.2193 | -877.0 | -675.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
