SDO HMI 2014-01-12 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.30 | 176.19 | 30.27 | 89.94 | -17.87 | 30.02 | -3.07 | 167.92 | 0.2422 | 318.3 | 46.9 | |
|
previous
or next observation for the same group /

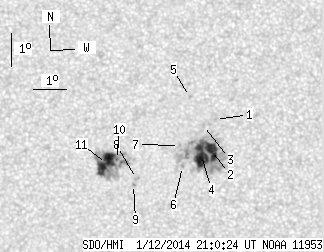

back to the solar disc SDO HMI 2014-01-12 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | -16.76 | 31.44 | -1.65 | 172.72 | 0.2184 | 880.0 | 634.0 | |
| 15.12 | 105.85 | 7.70 | 53.96 | -17.70 | 31.31 | -1.78 | 172.71 | 0.2345 | 1293.1 | 389.3 | |
| 0.00 | 1.78 | 0.00 | 0.91 | -16.94 | 31.07 | -2.02 | 171.23 | 0.2223 | 795.0 | 489.0 | |
| 22.77 | -2.00 | 11.61 | -2.00 | -17.85 | 31.00 | -2.09 | 171.55 | 0.2378 | 1218.2 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -16.07 | 30.65 | -2.44 | 168.65 | 0.2088 | 904.0 | 755.8 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -18.18 | 30.41 | -2.69 | 169.47 | 0.2450 | 735.0 | 581.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -17.54 | 30.32 | -2.77 | 168.62 | 0.2346 | 691.0 | 476.8 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -18.54 | 28.97 | -4.13 | 164.49 | 0.2564 | -980.0 | -750.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -18.72 | 28.87 | -4.22 | 164.35 | 0.2598 | -956.0 | -853.5 | |
| 0.51 | 60.83 | 0.26 | 31.13 | -17.96 | 28.36 | -4.73 | 161.61 | 0.2500 | -1205.2 | -567.9 | |
| 20.90 | -10.00 | 10.70 | -10.00 | -18.08 | 28.05 | -5.05 | 160.65 | 0.2536 | -1165.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
