SDO HMI 2014-01-12 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.21 | 0.00 | 9.59 | -21.01 | 58.20 | 25.66 | 230.06 | 0.5341 | -681.8 | -572.1 | |
|
previous
or next observation for the same group /

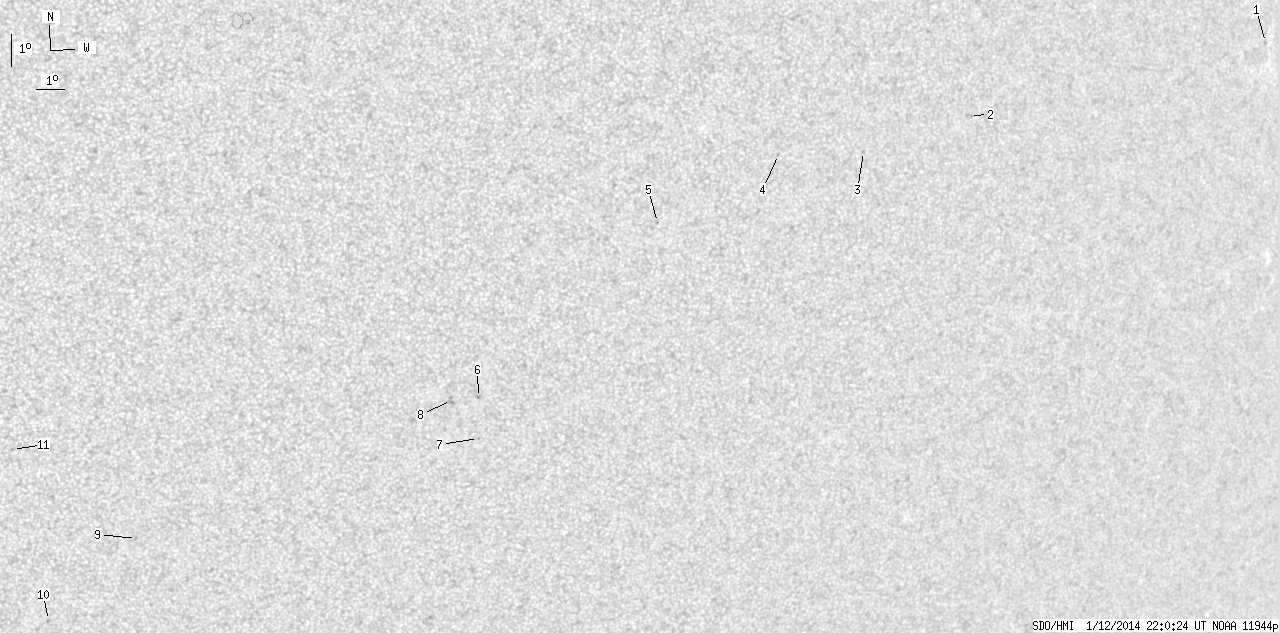

back to the solar disc SDO HMI 2014-01-12 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.13 | -12.59 | 80.24 | 47.69 | 256.90 | 0.7434 | -651.0 | -512.7 | |
| 0.00 | 2.80 | 0.00 | 1.74 | -15.34 | 68.70 | 36.16 | 250.17 | 0.6071 | -641.0 | -528.0 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -16.58 | 65.00 | 32.45 | 246.50 | 0.5630 | -506.0 | -463.3 | |
| 0.00 | 1.10 | 0.00 | 0.64 | -16.78 | 61.98 | 29.43 | 244.43 | 0.5237 | -629.0 | -504.5 | |
| 0.00 | 1.10 | 0.00 | 0.63 | -18.98 | 58.11 | 25.57 | 237.50 | 0.4859 | -815.0 | -637.2 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -24.54 | 52.86 | 20.32 | 222.08 | 0.4734 | -801.0 | -661.1 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -25.83 | 53.09 | 20.55 | 220.41 | 0.4893 | -606.0 | -494.3 | |
| 0.00 | 3.31 | 0.00 | 1.85 | -24.66 | 51.95 | 19.41 | 220.68 | 0.4653 | -613.0 | -673.2 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -29.24 | 41.77 | 9.22 | 198.33 | 0.4467 | -851.0 | -685.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -31.96 | 38.94 | 6.40 | 191.51 | 0.4759 | -665.0 | -551.6 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -26.41 | 37.42 | 4.88 | 191.44 | 0.3856 | -722.0 | -510.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
