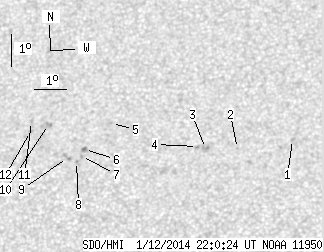

SDO HMI 2014-01-12 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.85 | 0.00 | 10.63 | 16.34 | 24.78 | -7.76 | 19.97 | 0.3787 | 264.6 | 254.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.45 | 16.43 | 30.29 | -2.25 | 6.07 | 0.3578 | -695.0 | -554.2 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 16.16 | 28.60 | -3.94 | 10.68 | 0.3574 | -749.0 | -609.8 | |
| 0.00 | 3.48 | 0.00 | 1.85 | 16.16 | 27.62 | -4.92 | 13.26 | 0.3608 | -1182.0 | -779.3 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 16.23 | 27.37 | -5.17 | 13.86 | 0.3628 | -848.0 | -672.8 | |
| 0.00 | 0.25 | 0.00 | 0.14 | 16.98 | 24.68 | -7.86 | 19.83 | 0.3872 | 647.0 | 522.3 | |
| 0.00 | 2.55 | 0.00 | 1.36 | 16.17 | 23.88 | -8.66 | 22.50 | 0.3797 | 1015.0 | 887.4 | |
| 0.00 | 0.93 | 0.00 | 0.50 | 15.95 | 23.80 | -8.75 | 22.93 | 0.3769 | 905.0 | 765.3 | |
| 0.00 | 0.93 | 0.00 | 0.50 | 15.80 | 23.65 | -8.90 | 23.45 | 0.3756 | 918.0 | 733.7 | |
| 0.00 | 3.14 | 0.00 | 1.68 | 15.93 | 23.36 | -9.18 | 23.97 | 0.3794 | 671.0 | 673.4 | |
| 0.00 | 2.63 | 0.00 | 1.42 | 16.98 | 22.72 | -9.82 | 24.26 | 0.3989 | 843.0 | 753.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 17.08 | 22.18 | -10.36 | 25.30 | 0.4040 | 836.0 | 629.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 16.76 | 22.17 | -10.38 | 25.68 | 0.3996 | 814.0 | 716.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
