SDO HMI 2014-01-12 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.41 | 73.57 | 35.09 | 118.31 | 8.42 | 102.91 | 70.92 | 280.39 | 0.9489 | 283.6 | 75.0 | |
|
previous
or next observation for the same group /

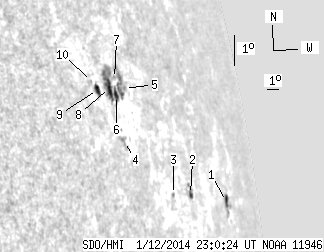

back to the solar disc SDO HMI 2014-01-12 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.40 | 10.03 | 9.14 | 27.11 | 6.84 | 110.71 | 78.72 | 277.80 | 0.9836 | 74.6 | -18.3 | |
| 2.72 | 5.35 | 5.12 | 10.07 | 6.70 | 106.01 | 74.02 | 278.16 | 0.9657 | -171.6 | -171.0 | |
| 0.00 | 1.36 | 0.00 | 2.28 | 6.57 | 104.19 | 72.20 | 278.24 | 0.9570 | -301.0 | -241.8 | |
| 0.00 | 6.37 | 0.00 | 8.88 | 7.87 | 100.29 | 68.30 | 280.12 | 0.9365 | 368.0 | 165.5 | |
| 0.00 | 1.44 | 0.00 | 2.10 | 9.52 | 100.95 | 68.95 | 281.76 | 0.9417 | -317.0 | -305.9 | |
| 3.31 | 41.55 | 4.64 | 57.95 | 9.25 | 100.17 | 68.18 | 281.59 | 0.9369 | 395.4 | 132.4 | |
| 0.00 | 1.10 | 0.00 | 1.56 | 9.77 | 100.23 | 68.24 | 282.13 | 0.9377 | 232.0 | 157.8 | |
| 8.16 | -6.00 | 11.17 | -6.00 | 9.46 | 99.69 | 67.70 | 281.89 | 0.9342 | 615.1 | 999999 | |
| 3.82 | 5.69 | 5.02 | 7.48 | 9.33 | 98.70 | 66.71 | 281.90 | 0.9279 | 488.0 | 372.5 | |
| 0.00 | 0.68 | 0.00 | 0.88 | 9.54 | 98.33 | 66.34 | 282.19 | 0.9258 | 431.0 | 458.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
