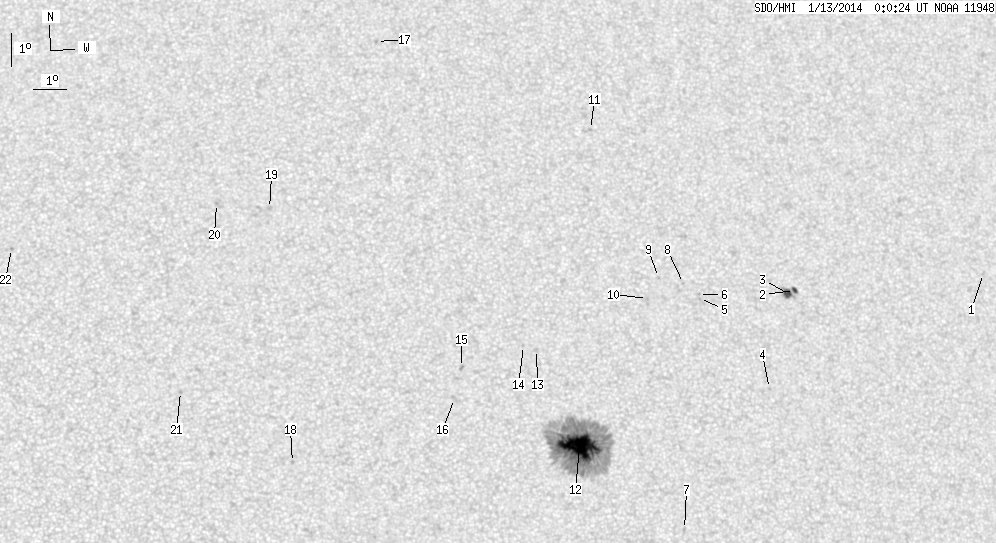

SDO HMI 2014-01-13 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.13 | 315.73 | 26.15 | 164.04 | 5.97 | 45.40 | 13.96 | 306.57 | 0.3011 | -797.9 | -410.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.88 | 11.01 | 58.53 | 27.09 | 299.85 | 0.5175 | -735.0 | -559.2 | |
| 1.78 | 10.88 | 0.98 | 5.95 | 10.30 | 52.26 | 20.82 | 305.33 | 0.4304 | -656.7 | -637.9 | |
| 4.59 | -2.00 | 2.51 | -2.00 | 10.21 | 52.03 | 20.59 | 305.44 | 0.4266 | -1006.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 7.31 | 51.29 | 19.84 | 300.39 | 0.3920 | -725.0 | -604.4 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 9.98 | 49.22 | 17.78 | 309.03 | 0.3888 | 734.0 | 582.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 10.11 | 49.20 | 17.76 | 309.31 | 0.3897 | 431.0 | 347.4 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 3.03 | 48.50 | 17.05 | 293.11 | 0.3198 | 785.0 | 529.2 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 10.43 | 48.75 | 17.30 | 310.69 | 0.3875 | -658.0 | -450.6 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 10.60 | 47.97 | 16.53 | 312.31 | 0.3799 | -695.0 | -548.4 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 9.95 | 47.59 | 16.15 | 311.66 | 0.3684 | -807.0 | -690.0 | |
| 0.00 | 1.10 | 0.00 | 0.60 | 15.13 | 46.13 | 14.69 | 323.50 | 0.4133 | -820.0 | -678.2 | |
| 43.76 | 279.05 | 22.66 | 144.52 | 5.48 | 45.33 | 13.89 | 305.15 | 0.2935 | -1364.1 | -439.9 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 8.34 | 44.10 | 12.66 | 315.10 | 0.3086 | -818.0 | -596.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 8.46 | 43.71 | 12.27 | 316.27 | 0.3054 | -647.0 | -456.9 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 7.76 | 41.81 | 10.36 | 319.46 | 0.2755 | -938.0 | -690.0 | |
| 0.00 | 2.80 | 0.00 | 1.44 | 6.83 | 41.57 | 10.13 | 317.78 | 0.2611 | -639.0 | -611.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 17.81 | 39.58 | 8.14 | 340.29 | 0.4014 | 799.0 | 658.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 4.87 | 36.70 | 5.25 | 330.25 | 0.1847 | 849.0 | 660.5 | |
| 0.00 | 2.04 | 0.00 | 1.06 | 12.56 | 36.12 | 4.68 | 344.67 | 0.3024 | 854.0 | 567.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 12.70 | 34.52 | 3.08 | 349.87 | 0.2989 | 872.0 | 647.7 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 6.98 | 33.39 | 1.95 | 350.25 | 0.2000 | -644.0 | -494.2 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 11.33 | 28.34 | -3.11 | 11.14 | 0.2763 | 856.0 | 698.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
