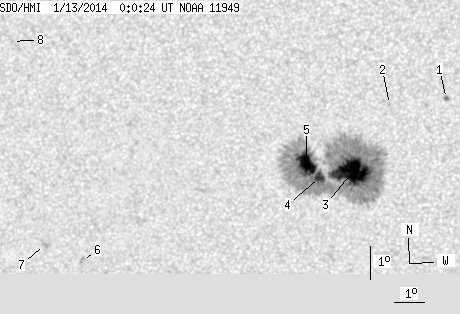

SDO HMI 2014-01-13 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.46 | 465.73 | 49.73 | 248.06 | -16.50 | 13.34 | -18.10 | 125.82 | 0.3686 | 1176.8 | 388.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.59 | 2.29 | 0.31 | 1.19 | -14.42 | 17.13 | -14.31 | 126.54 | 0.2993 | 1110.6 | 871.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -14.56 | 15.32 | -16.12 | 123.88 | 0.3251 | -810.0 | -716.1 | |
| 58.97 | 456.22 | 31.30 | 242.76 | -16.55 | 13.97 | -17.47 | 126.75 | 0.3607 | 1373.4 | 408.7 | |
| 8.07 | -3.00 | 4.31 | -3.00 | -16.70 | 12.89 | -18.55 | 125.57 | 0.3763 | 1215.3 | 999999 | |
| 25.83 | -3.00 | 13.81 | -3.00 | -16.30 | 12.51 | -18.93 | 124.15 | 0.3780 | 1293.6 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.60 | -18.98 | 4.61 | -26.83 | 121.40 | 0.5022 | -762.0 | -674.9 | |
| 0.00 | 3.06 | 0.00 | 1.76 | -18.45 | 3.37 | -28.07 | 119.47 | 0.5149 | -898.0 | -706.1 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -12.33 | 3.17 | -28.27 | 107.72 | 0.4878 | -666.0 | -533.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
