SDO HMI 2014-01-13 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.01 | 0.00 | 12.86 | 16.47 | 24.87 | -6.57 | 16.94 | 0.3747 | 321.3 | 205.4 | |
|
previous
or next observation for the same group /

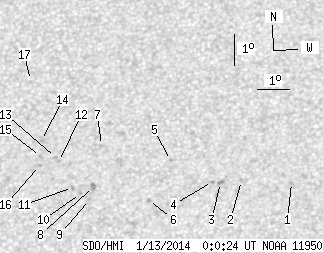

back to the solar disc SDO HMI 2014-01-13 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.81 | 16.16 | 29.97 | -1.48 | 4.04 | 0.3526 | -705.0 | -485.1 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 16.23 | 28.43 | -3.01 | 8.18 | 0.3564 | -696.0 | -589.4 | |
| 0.00 | 2.46 | 0.00 | 1.31 | 16.17 | 27.78 | -3.66 | 9.92 | 0.3571 | -1025.0 | -815.5 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 16.20 | 27.54 | -3.90 | 10.56 | 0.3583 | -762.0 | -613.7 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 16.88 | 26.23 | -5.21 | 13.53 | 0.3735 | 694.0 | 544.9 | |
| 0.00 | 1.78 | 0.00 | 0.95 | 15.62 | 25.58 | -5.86 | 16.08 | 0.3564 | -821.0 | -653.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 17.37 | 24.07 | -7.37 | 18.35 | 0.3908 | 729.0 | 445.7 | |
| 0.00 | 3.14 | 0.00 | 1.68 | 16.08 | 23.87 | -7.57 | 19.98 | 0.3721 | 818.0 | 764.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 15.67 | 23.76 | -7.68 | 20.64 | 0.3666 | 925.0 | 771.2 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 15.87 | 23.48 | -7.97 | 21.15 | 0.3711 | 845.0 | 662.8 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 16.06 | 23.22 | -8.22 | 21.56 | 0.3755 | 788.0 | 631.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 16.88 | 22.75 | -8.69 | 21.82 | 0.3907 | 825.0 | 674.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 17.01 | 22.65 | -8.79 | 21.92 | 0.3932 | 854.0 | 719.1 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 17.56 | 22.19 | -9.25 | 22.40 | 0.4040 | 739.0 | 589.8 | |
| 0.00 | 1.10 | 0.00 | 0.60 | 17.05 | 22.18 | -9.26 | 22.93 | 0.3966 | 791.0 | 670.0 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 16.77 | 22.16 | -9.28 | 23.26 | 0.3925 | 838.0 | 727.7 | |
| 0.00 | 0.59 | 0.00 | 0.33 | 19.48 | 21.73 | -9.71 | 21.53 | 0.4349 | 625.0 | 608.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
