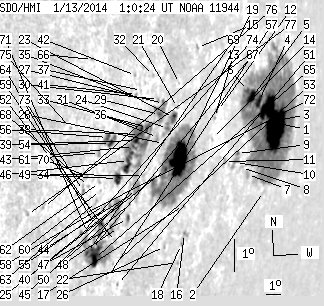

SDO HMI 2014-01-13 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 197.60 | 985.08 | 277.75 | 1399.48 | -10.00 | 100.78 | 69.89 | 260.86 | 0.9350 | 307.3 | 142.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.60 | 471.23 | 128.56 | 809.20 | -9.16 | 104.86 | 73.97 | 261.72 | 0.9601 | 392.1 | 140.9 | |
| 0.00 | 1.36 | 0.00 | 2.39 | -11.22 | 105.06 | 74.16 | 259.57 | 0.9608 | -37.0 | -9.6 | |
| 1.02 | -1.00 | 1.66 | -1.00 | -9.28 | 103.65 | 72.76 | 261.63 | 0.9541 | 727.8 | 999999 | |
| 5.95 | -1.00 | 9.41 | -1.00 | -8.66 | 103.04 | 72.15 | 262.30 | 0.9510 | 674.6 | 999999 | |
| 7.22 | -1.00 | 11.00 | -1.00 | -8.59 | 102.33 | 71.44 | 262.39 | 0.9471 | 798.8 | 999999 | |
| 0.85 | -1.00 | 1.26 | -1.00 | -8.42 | 101.88 | 70.98 | 262.59 | 0.9446 | 750.8 | 999999 | |
| 1.70 | 3.14 | 2.69 | 4.98 | -10.84 | 103.12 | 72.23 | 260.00 | 0.9511 | 372.3 | 370.7 | |
| 0.00 | 1.78 | 0.00 | 2.73 | -10.68 | 102.44 | 71.55 | 260.18 | 0.9474 | 380.0 | 364.5 | |
| 1.53 | 8.75 | 2.27 | 12.97 | -10.30 | 101.85 | 70.96 | 260.60 | 0.9442 | 498.4 | 464.4 | |
| 3.57 | -9.00 | 5.29 | -9.00 | -10.58 | 101.81 | 70.92 | 260.31 | 0.9439 | 581.4 | 999999 | |
| 0.00 | 2.38 | 0.00 | 3.37 | -10.62 | 100.83 | 69.94 | 260.28 | 0.9382 | 92.0 | 123.1 | |
| 0.59 | 1.78 | 0.79 | 2.38 | -9.18 | 99.56 | 68.67 | 261.84 | 0.9306 | 489.1 | 418.3 | |
| 0.34 | 1.19 | 0.45 | 1.58 | -9.40 | 99.41 | 68.51 | 261.61 | 0.9296 | 378.8 | 395.5 | |
| 0.00 | 0.76 | 0.00 | 1.02 | -10.02 | 99.51 | 68.62 | 260.94 | 0.9302 | 433.0 | 362.8 | |
| 0.00 | 1.61 | 0.00 | 1.98 | -7.45 | 97.37 | 66.48 | 263.77 | 0.9163 | 468.0 | 405.5 | |
| 0.51 | 3.57 | 0.66 | 4.62 | -12.93 | 98.70 | 67.81 | 257.79 | 0.9250 | -222.3 | -391.2 | |
| 0.34 | 1.27 | 0.43 | 1.61 | -12.12 | 98.18 | 67.29 | 258.66 | 0.9215 | 227.8 | 144.5 | |
| 0.59 | 1.44 | 0.77 | 1.86 | -13.27 | 98.65 | 67.75 | 257.43 | 0.9247 | -421.6 | -381.6 | |
| 35.01 | 198.61 | 42.56 | 240.33 | -10.80 | 97.25 | 66.35 | 260.10 | 0.9152 | 635.7 | 198.5 | |
| 0.00 | 0.59 | 0.00 | 0.70 | -8.59 | 96.40 | 65.50 | 262.54 | 0.9093 | -145.0 | -183.9 | |
| 0.00 | 0.68 | 0.00 | 0.80 | -9.30 | 96.50 | 65.60 | 261.76 | 0.9099 | 380.0 | 394.0 | |
| 0.00 | 0.85 | 0.00 | 1.10 | -13.81 | 98.65 | 67.75 | 256.84 | 0.9247 | -227.0 | -224.0 | |
| 4.84 | 16.06 | 5.69 | 18.75 | -9.61 | 96.32 | 65.43 | 261.41 | 0.9086 | 675.8 | 522.9 | |
| 1.27 | -23.00 | 1.48 | -23.00 | -9.96 | 96.02 | 65.12 | 261.03 | 0.9064 | 541.4 | 999999 | |
| 1.44 | -19.00 | 1.70 | -19.00 | -11.16 | 96.36 | 65.47 | 259.70 | 0.9089 | 840.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.67 | -13.41 | 97.39 | 66.50 | 257.25 | 0.9163 | 126.0 | 76.4 | |
| 1.36 | 15.55 | 1.55 | 17.67 | -9.25 | 95.48 | 64.58 | 261.82 | 0.9025 | 339.1 | 538.3 | |
| 0.00 | 1.87 | 0.00 | 2.16 | -10.41 | 95.91 | 65.01 | 260.53 | 0.9056 | 535.0 | 501.4 | |
| 1.78 | -27.00 | 2.02 | -27.00 | -9.59 | 95.31 | 64.42 | 261.44 | 0.9013 | 691.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.43 | -9.15 | 95.09 | 64.20 | 261.93 | 0.8996 | -307.0 | -186.1 | |
| 0.00 | 2.80 | 0.00 | 3.19 | -10.27 | 95.42 | 64.53 | 260.69 | 0.9021 | 544.0 | 483.2 | |
| 0.00 | 1.10 | 0.00 | 1.22 | -8.47 | 94.54 | 63.64 | 262.69 | 0.8954 | -380.0 | -338.8 | |
| 2.80 | 91.27 | 3.10 | 99.13 | -10.02 | 94.64 | 63.74 | 260.96 | 0.8961 | -276.0 | 49.4 | |
| 0.00 | 1.53 | 0.00 | 1.71 | -11.44 | 94.91 | 64.02 | 259.38 | 0.8983 | 228.0 | 190.9 | |
| 0.00 | 0.76 | 0.00 | 0.83 | -9.25 | 94.04 | 63.15 | 261.82 | 0.8915 | -271.0 | -240.4 | |
| 1.27 | -33.00 | 1.39 | -33.00 | -10.08 | 94.25 | 63.36 | 260.90 | 0.8932 | 511.5 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.82 | -8.97 | 93.88 | 62.99 | 262.14 | 0.8903 | -431.0 | -369.9 | |
| 3.23 | -33.00 | 3.52 | -33.00 | -10.26 | 94.18 | 63.29 | 260.69 | 0.8926 | 273.2 | 999999 | |
| 3.14 | -33.00 | 3.41 | -33.00 | -10.45 | 94.05 | 63.15 | 260.48 | 0.8916 | -319.1 | 999999 | |
| 0.00 | 11.81 | 0.00 | 13.07 | -11.88 | 94.61 | 63.72 | 258.88 | 0.8961 | -36.0 | 56.9 | |
| 0.00 | 1.27 | 0.00 | 1.36 | -9.10 | 93.59 | 62.70 | 261.99 | 0.8880 | -502.0 | -404.0 | |
| 0.00 | 1.27 | 0.00 | 1.35 | -8.55 | 93.36 | 62.47 | 262.61 | 0.8862 | -502.0 | -434.9 | |
| 1.10 | -33.00 | 1.19 | -33.00 | -10.64 | 93.92 | 63.02 | 260.26 | 0.8906 | -492.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.58 | -12.05 | 94.28 | 63.38 | 258.68 | 0.8936 | -275.0 | -167.4 | |
| 0.00 | 1.10 | 0.00 | 1.21 | -12.32 | 94.32 | 63.43 | 258.38 | 0.8940 | -206.0 | -183.6 | |
| 10.11 | -33.00 | 10.86 | -33.00 | -11.07 | 93.74 | 62.85 | 259.78 | 0.8893 | -537.6 | 999999 | |
| 2.12 | 3.91 | 2.34 | 4.30 | -12.77 | 94.39 | 63.49 | 257.88 | 0.8946 | -62.9 | -160.6 | |
| 0.00 | 1.02 | 0.00 | 1.10 | -13.07 | 93.91 | 63.02 | 257.53 | 0.8910 | 153.0 | 131.1 | |
| 6.29 | -33.00 | 6.65 | -33.00 | -11.64 | 93.24 | 62.35 | 259.12 | 0.8854 | -498.4 | 999999 | |
| 4.42 | 22.52 | 4.72 | 24.05 | -12.40 | 93.55 | 62.66 | 258.27 | 0.8880 | 182.0 | 227.5 | |
| 0.00 | 0.93 | 0.00 | 1.04 | -14.74 | 94.68 | 63.78 | 255.68 | 0.8973 | 491.0 | 414.6 | |
| 0.00 | 1.87 | 0.00 | 2.02 | -13.49 | 93.91 | 63.02 | 257.05 | 0.8911 | 286.0 | 282.5 | |
| 0.00 | 0.42 | 0.00 | 0.46 | -14.18 | 94.11 | 63.21 | 256.29 | 0.8928 | 477.0 | 447.8 | |
| 2.63 | 12.32 | 2.71 | 12.65 | -10.64 | 92.42 | 61.53 | 260.23 | 0.8786 | -515.3 | -459.1 | |
| 0.59 | 1.70 | 0.63 | 1.79 | -12.46 | 93.05 | 62.16 | 258.18 | 0.8841 | -168.3 | -102.7 | |
| 2.21 | -54.00 | 2.26 | -54.00 | -10.48 | 92.18 | 61.28 | 260.42 | 0.8766 | -630.0 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.55 | -14.58 | 93.90 | 63.01 | 255.83 | 0.8914 | 526.0 | 480.7 | |
| 0.00 | 0.34 | 0.00 | 0.35 | -12.48 | 92.74 | 61.84 | 258.15 | 0.8815 | -181.0 | -177.2 | |
| 2.72 | 66.46 | 2.83 | 69.54 | -13.03 | 92.71 | 61.81 | 257.53 | 0.8815 | -338.9 | 202.8 | |
| 0.00 | 0.59 | 0.00 | 0.61 | -12.06 | 92.31 | 61.42 | 258.61 | 0.8780 | -223.0 | -212.7 | |
| 0.00 | 2.97 | 0.00 | 3.01 | -10.95 | 91.84 | 60.94 | 259.87 | 0.8738 | -659.0 | -522.5 | |
| 0.00 | 0.93 | 0.00 | 0.95 | -11.83 | 92.16 | 61.26 | 258.87 | 0.8767 | -392.0 | -328.0 | |
| 0.00 | 2.21 | 0.00 | 2.26 | -12.40 | 92.19 | 61.30 | 258.22 | 0.8771 | -485.0 | -399.5 | |
| 0.00 | 1.87 | 0.00 | 1.93 | -13.11 | 92.42 | 61.53 | 257.43 | 0.8792 | -451.0 | -371.7 | |
| 7.39 | -59.00 | 7.73 | -59.00 | -14.08 | 92.79 | 61.90 | 256.34 | 0.8825 | 847.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.16 | -8.25 | 90.61 | 59.72 | 262.97 | 0.8631 | -659.0 | -562.9 | |
| 1.36 | -59.00 | 1.41 | -59.00 | -13.83 | 92.48 | 61.59 | 256.61 | 0.8799 | 316.1 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.77 | -11.99 | 91.53 | 60.64 | 258.67 | 0.8715 | -477.0 | -435.9 | |
| 1.44 | -59.00 | 1.48 | -59.00 | -13.93 | 92.27 | 61.38 | 256.48 | 0.8783 | 692.6 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.19 | -11.70 | 91.36 | 60.47 | 258.99 | 0.8700 | -521.0 | -489.1 | |
| 0.00 | 0.51 | 0.00 | 0.52 | -13.35 | 92.01 | 61.12 | 257.14 | 0.8759 | -486.0 | -434.7 | |
| 0.00 | 0.59 | 0.00 | 0.60 | -12.80 | 91.60 | 60.70 | 257.74 | 0.8723 | -405.0 | -366.4 | |
| 0.51 | 3.14 | 0.51 | 3.13 | -12.13 | 91.27 | 60.38 | 258.50 | 0.8694 | -553.3 | -483.5 | |
| 0.76 | 1.53 | 0.77 | 1.54 | -13.40 | 91.66 | 60.76 | 257.06 | 0.8730 | -464.3 | -316.4 | |
| 0.00 | 1.19 | 0.00 | 1.14 | -10.33 | 89.88 | 58.99 | 260.55 | 0.8569 | -435.0 | -413.6 | |
| 0.00 | 0.93 | 0.00 | 0.88 | -12.78 | 89.13 | 58.23 | 257.65 | 0.8509 | -615.0 | -530.2 | |
| 0.00 | 1.27 | 0.00 | 1.17 | -13.04 | 88.31 | 57.41 | 257.29 | 0.8436 | -508.0 | -445.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
