SDO HMI 2014-01-13 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 192.76 | 953.33 | 277.07 | 1395.96 | -9.93 | 100.83 | 70.48 | 260.93 | 0.9386 | 318.4 | 133.5 | |
|
previous
or next observation for the same group /

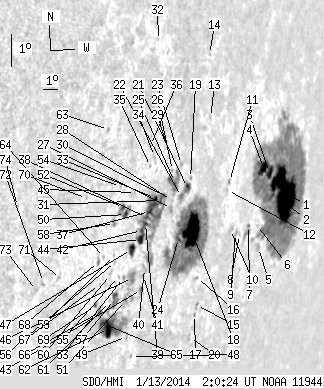

back to the solar disc SDO HMI 2014-01-13 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.80 | 465.34 | 127.75 | 823.94 | -9.15 | 104.88 | 74.54 | 261.71 | 0.9628 | 387.7 | 134.7 | |
| 1.36 | -1.00 | 2.29 | -1.00 | -9.27 | 103.74 | 73.39 | 261.63 | 0.9573 | 669.1 | 999999 | |
| 6.03 | -1.00 | 9.82 | -1.00 | -8.66 | 103.01 | 72.66 | 262.29 | 0.9537 | 656.6 | 999999 | |
| 11.81 | -1.00 | 18.50 | -1.00 | -8.56 | 102.36 | 72.01 | 262.42 | 0.9502 | 751.4 | 999999 | |
| 0.00 | 3.14 | 0.00 | 5.11 | -10.90 | 103.13 | 72.78 | 259.93 | 0.9540 | 364.0 | 345.2 | |
| 0.00 | 1.19 | 0.00 | 1.89 | -10.27 | 102.65 | 72.30 | 260.60 | 0.9516 | 315.0 | 332.0 | |
| 0.76 | 7.31 | 1.16 | 11.10 | -10.33 | 101.80 | 71.46 | 260.56 | 0.9470 | 429.7 | 485.7 | |
| 0.00 | 0.93 | 0.00 | 1.38 | -10.65 | 101.13 | 70.78 | 260.23 | 0.9432 | 300.0 | 263.4 | |
| 0.00 | 2.38 | 0.00 | 3.44 | -10.65 | 100.76 | 70.41 | 260.24 | 0.9410 | 103.0 | 73.7 | |
| 0.00 | 2.29 | 0.00 | 3.25 | -10.56 | 100.27 | 69.92 | 260.34 | 0.9381 | 26.0 | 94.7 | |
| 0.76 | 1.61 | 1.05 | 2.21 | -9.18 | 99.53 | 69.19 | 261.84 | 0.9338 | 506.7 | 430.9 | |
| 0.00 | 0.76 | 0.00 | 1.05 | -9.45 | 99.48 | 69.13 | 261.54 | 0.9335 | 437.0 | 451.8 | |
| 0.00 | 1.44 | 0.00 | 1.81 | -7.42 | 97.36 | 67.01 | 263.79 | 0.9200 | 395.0 | 345.6 | |
| 0.00 | 0.85 | 0.00 | 1.04 | -5.58 | 96.79 | 66.45 | 265.81 | 0.9165 | -258.0 | -256.5 | |
| 0.00 | 2.29 | 0.00 | 3.03 | -12.96 | 98.67 | 68.32 | 257.77 | 0.9283 | -266.0 | -268.9 | |
| 0.34 | 1.02 | 0.44 | 1.32 | -12.15 | 98.22 | 67.87 | 258.64 | 0.9254 | 187.8 | 134.0 | |
| 0.42 | 1.02 | 0.56 | 1.34 | -13.23 | 98.66 | 68.32 | 257.47 | 0.9283 | -481.8 | -411.7 | |
| 32.04 | 196.25 | 39.76 | 242.66 | -10.81 | 97.17 | 66.82 | 260.10 | 0.9184 | 644.3 | 186.0 | |
| 0.00 | 1.10 | 0.00 | 1.33 | -9.30 | 96.48 | 66.13 | 261.75 | 0.9136 | 396.0 | 384.7 | |
| 0.00 | 2.21 | 0.00 | 2.91 | -13.93 | 98.67 | 68.33 | 256.72 | 0.9284 | -313.0 | -260.5 | |
| 4.50 | 12.58 | 5.41 | 15.02 | -9.57 | 96.36 | 66.01 | 261.45 | 0.9128 | 655.6 | 529.8 | |
| 1.61 | -21.00 | 1.91 | -21.00 | -9.87 | 96.02 | 65.68 | 261.13 | 0.9104 | 556.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.99 | -8.93 | 95.68 | 65.34 | 262.16 | 0.9080 | 122.0 | 122.3 | |
| 2.46 | -18.00 | 2.95 | -18.00 | -11.10 | 96.31 | 65.97 | 259.77 | 0.9125 | 774.2 | 999999 | |
| 11.47 | 17.76 | 13.28 | 20.58 | -9.46 | 95.37 | 65.02 | 261.58 | 0.9057 | 551.0 | 406.0 | |
| 0.00 | 0.85 | 0.00 | 0.97 | -9.15 | 95.11 | 64.77 | 261.93 | 0.9039 | -278.0 | -195.9 | |
| 0.00 | 2.89 | 0.00 | 3.35 | -10.26 | 95.45 | 65.10 | 260.70 | 0.9063 | 559.0 | 496.1 | |
| 0.00 | 1.19 | 0.00 | 1.38 | -10.03 | 95.36 | 65.01 | 260.95 | 0.9056 | 331.0 | 361.2 | |
| 0.00 | 0.68 | 0.00 | 0.77 | -8.50 | 94.55 | 64.21 | 262.66 | 0.8997 | -343.0 | -290.8 | |
| 0.76 | 85.25 | 0.87 | 94.74 | -9.92 | 94.75 | 64.41 | 261.07 | 0.9011 | -220.7 | 51.7 | |
| 1.61 | -30.00 | 1.82 | -30.00 | -10.08 | 94.60 | 64.26 | 260.90 | 0.9000 | -319.1 | 999999 | |
| 0.00 | 0.25 | 0.00 | 0.27 | -5.41 | 93.19 | 62.85 | 266.15 | 0.8898 | -473.0 | -467.7 | |
| 1.53 | -30.00 | 1.70 | -30.00 | -10.04 | 94.24 | 63.90 | 260.94 | 0.8973 | 460.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.40 | -8.82 | 93.76 | 63.42 | 262.31 | 0.8937 | -425.0 | -338.3 | |
| 0.00 | 0.85 | 0.00 | 0.92 | -9.13 | 93.59 | 63.25 | 261.96 | 0.8923 | -475.0 | -418.6 | |
| 0.00 | 0.85 | 0.00 | 0.92 | -8.52 | 93.41 | 63.06 | 262.65 | 0.8909 | -496.0 | -459.3 | |
| 2.55 | -30.00 | 2.81 | -30.00 | -10.45 | 93.98 | 63.64 | 260.48 | 0.8953 | -369.6 | 999999 | |
| 1.70 | -30.00 | 1.87 | -30.00 | -10.64 | 93.85 | 63.50 | 260.27 | 0.8943 | -497.4 | 999999 | |
| 0.93 | -30.00 | 1.03 | -30.00 | -10.82 | 93.85 | 63.50 | 260.07 | 0.8943 | -472.5 | 999999 | |
| 0.00 | 2.55 | 0.00 | 2.85 | -12.14 | 94.32 | 63.98 | 258.60 | 0.8981 | -156.0 | -111.5 | |
| 0.00 | 0.85 | 0.00 | 0.95 | -12.35 | 94.35 | 64.00 | 258.37 | 0.8983 | -335.0 | -272.4 | |
| 1.27 | -30.00 | 1.39 | -30.00 | -11.04 | 93.66 | 63.32 | 259.82 | 0.8929 | -603.5 | 999999 | |
| 1.36 | 3.82 | 1.52 | 4.28 | -12.77 | 94.40 | 64.05 | 257.90 | 0.8988 | -109.1 | -238.0 | |
| 4.67 | -30.00 | 5.11 | -30.00 | -11.31 | 93.70 | 63.35 | 259.52 | 0.8932 | -496.9 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.54 | -9.96 | 92.87 | 62.52 | 261.03 | 0.8866 | -383.0 | -319.0 | |
| 3.91 | 10.28 | 4.26 | 11.19 | -12.46 | 93.64 | 63.29 | 258.23 | 0.8929 | 206.0 | 182.3 | |
| 4.93 | 7.65 | 5.31 | 8.24 | -11.64 | 93.23 | 62.88 | 259.13 | 0.8896 | -514.6 | -322.2 | |
| 0.00 | 0.93 | 0.00 | 1.06 | -14.77 | 94.72 | 64.37 | 255.68 | 0.9016 | 411.0 | 376.7 | |
| 0.00 | 2.12 | 0.00 | 2.36 | -14.21 | 94.06 | 63.72 | 256.28 | 0.8966 | 498.0 | 385.6 | |
| 2.29 | 11.64 | 2.41 | 12.17 | -10.64 | 92.46 | 62.11 | 260.25 | 0.8833 | -495.5 | -465.3 | |
| 0.76 | 12.75 | 0.83 | 13.90 | -13.16 | 93.48 | 63.14 | 257.43 | 0.8919 | 301.3 | 239.9 | |
| 1.53 | -50.00 | 1.59 | -50.00 | -10.45 | 92.26 | 61.91 | 260.47 | 0.8817 | -627.4 | 999999 | |
| 0.34 | 1.61 | 0.36 | 1.73 | -12.49 | 93.05 | 62.71 | 258.17 | 0.8884 | -142.5 | -124.4 | |
| 0.00 | 0.76 | 0.00 | 0.79 | -9.84 | 91.87 | 61.52 | 261.15 | 0.8785 | -354.0 | -354.0 | |
| 0.00 | 0.93 | 0.00 | 0.99 | -12.49 | 92.72 | 62.37 | 258.17 | 0.8858 | -250.0 | -207.5 | |
| 0.00 | 0.85 | 0.00 | 0.89 | -12.06 | 92.35 | 62.00 | 258.64 | 0.8827 | -323.0 | -251.7 | |
| 6.03 | 57.71 | 6.41 | 61.62 | -13.18 | 92.76 | 62.41 | 257.39 | 0.8862 | -295.5 | 218.6 | |
| 0.93 | 3.40 | 0.96 | 3.50 | -10.95 | 91.86 | 61.51 | 259.89 | 0.8785 | -575.3 | -441.1 | |
| 0.00 | 0.93 | 0.00 | 0.97 | -11.89 | 92.21 | 61.87 | 258.83 | 0.8816 | -285.0 | -252.3 | |
| 0.00 | 0.34 | 0.00 | 0.35 | -12.46 | 92.19 | 61.84 | 258.18 | 0.8815 | -532.0 | -559.2 | |
| 0.00 | 0.93 | 0.00 | 0.98 | -13.26 | 92.46 | 62.12 | 257.29 | 0.8839 | -383.0 | -361.5 | |
| 8.58 | -57.00 | 9.11 | -57.00 | -14.05 | 92.77 | 62.42 | 256.40 | 0.8866 | 817.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.26 | -8.22 | 90.66 | 60.31 | 263.01 | 0.8683 | -509.0 | -455.8 | |
| 0.00 | 0.76 | 0.00 | 0.78 | -11.99 | 91.61 | 61.27 | 258.70 | 0.8767 | -425.0 | -403.3 | |
| 1.87 | -57.00 | 1.96 | -57.00 | -13.93 | 92.31 | 61.97 | 256.51 | 0.8830 | 590.7 | 999999 | |
| 0.00 | 4.33 | 0.00 | 4.49 | -13.59 | 92.03 | 61.68 | 256.89 | 0.8806 | 237.0 | 178.2 | |
| 0.00 | 0.42 | 0.00 | 0.43 | -12.80 | 91.62 | 61.28 | 257.77 | 0.8770 | -251.0 | -250.6 | |
| 0.00 | 2.72 | 0.00 | 2.75 | -12.13 | 91.29 | 60.94 | 258.53 | 0.8741 | -539.0 | -490.0 | |
| 0.85 | 1.78 | 0.87 | 1.83 | -13.43 | 91.64 | 61.29 | 257.05 | 0.8773 | -340.4 | -331.9 | |
| 0.00 | 0.68 | 0.00 | 0.66 | -10.33 | 89.93 | 59.58 | 260.57 | 0.8621 | -557.0 | -511.5 | |
| 0.00 | 0.51 | 0.00 | 0.49 | -12.77 | 89.23 | 58.88 | 257.69 | 0.8567 | -488.0 | -452.0 | |
| 0.00 | 0.93 | 0.00 | 0.87 | -12.95 | 88.30 | 57.96 | 257.43 | 0.8485 | -554.0 | -474.7 | |
| 0.00 | 1.10 | 0.00 | 1.02 | -13.21 | 88.00 | 57.65 | 257.10 | 0.8459 | -594.0 | -441.3 | |
| 0.00 | 1.02 | 0.00 | 0.90 | -10.80 | 86.17 | 55.82 | 259.88 | 0.8277 | -502.0 | -467.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
