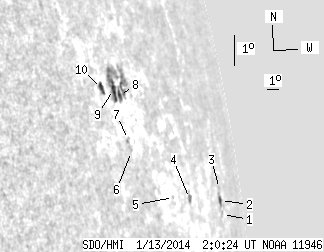

SDO HMI 2014-01-13 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.14 | 61.26 | 29.23 | 106.78 | 8.52 | 102.68 | 72.33 | 280.32 | 0.9560 | 253.7 | 75.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 5.20 | 6.46 | 110.94 | 80.60 | 277.24 | 0.9889 | -233.0 | -134.6 | |
| 2.63 | 4.76 | 8.42 | 15.15 | 6.88 | 110.87 | 80.53 | 277.66 | 0.9888 | 106.4 | -79.0 | |
| 0.00 | 1.10 | 0.00 | 3.59 | 7.24 | 110.97 | 80.62 | 278.02 | 0.9891 | -78.0 | -59.1 | |
| 1.53 | 2.80 | 3.23 | 5.94 | 6.58 | 106.10 | 75.76 | 277.85 | 0.9731 | -258.4 | -116.0 | |
| 0.00 | 0.85 | 0.00 | 1.58 | 6.47 | 104.21 | 73.86 | 277.95 | 0.9650 | -262.0 | -235.8 | |
| 0.00 | 0.76 | 0.00 | 1.17 | 7.58 | 100.53 | 70.19 | 279.56 | 0.9472 | -48.0 | -69.0 | |
| 0.00 | 2.55 | 0.00 | 3.87 | 7.93 | 100.40 | 70.06 | 279.94 | 0.9467 | 363.0 | 266.3 | |
| 2.21 | 41.82 | 3.35 | 63.20 | 9.24 | 100.16 | 69.82 | 281.35 | 0.9463 | 382.4 | 125.5 | |
| 6.20 | -8.00 | 9.19 | -8.00 | 9.39 | 99.71 | 69.36 | 281.57 | 0.9439 | 580.7 | 999999 | |
| 3.57 | 5.01 | 5.04 | 7.08 | 9.34 | 98.68 | 68.34 | 281.68 | 0.9380 | 449.0 | 333.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
