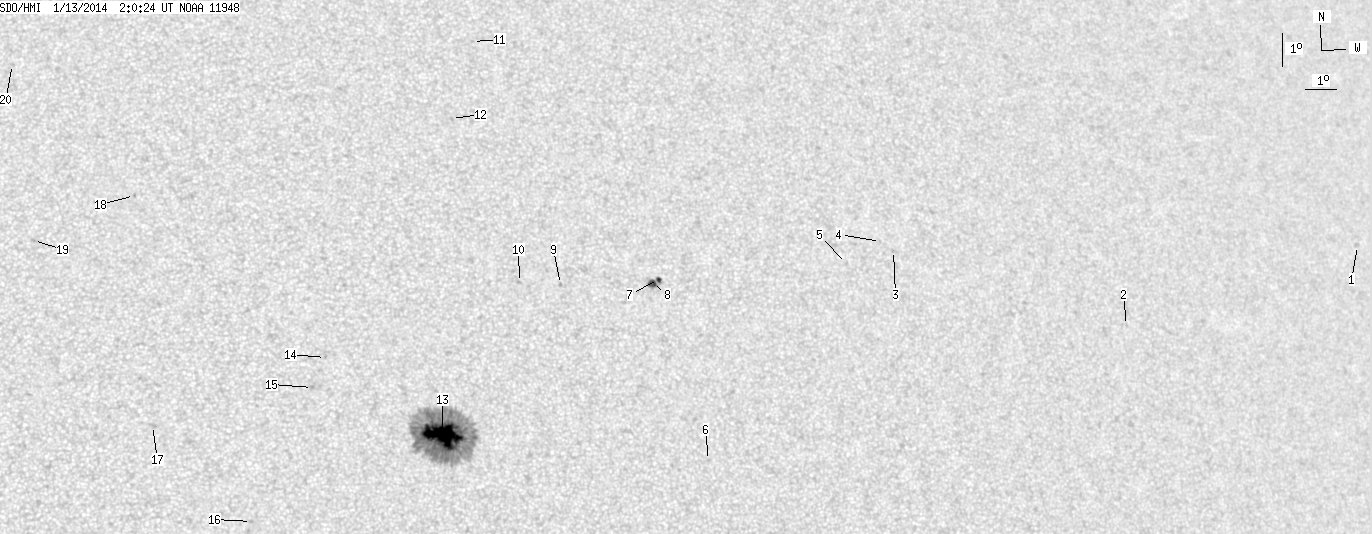

SDO HMI 2014-01-13 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.80 | 304.75 | 26.10 | 159.99 | 6.05 | 45.96 | 15.61 | 304.12 | 0.3233 | -849.7 | -407.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 1.93 | 12.51 | 78.64 | 48.30 | 290.00 | 0.7780 | -516.0 | -426.2 | |
| 0.00 | 0.76 | 0.00 | 0.50 | 9.54 | 68.52 | 38.17 | 290.18 | 0.6517 | -426.0 | -387.8 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 11.47 | 60.30 | 29.96 | 298.23 | 0.5576 | -616.0 | -508.9 | |
| 0.00 | 0.59 | 0.00 | 0.35 | 11.73 | 59.88 | 29.54 | 298.98 | 0.5539 | -646.0 | -585.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 11.01 | 58.63 | 28.28 | 298.83 | 0.5331 | -697.0 | -488.2 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 4.91 | 53.63 | 23.29 | 291.44 | 0.4250 | -697.0 | -550.0 | |
| 1.61 | 9.18 | 0.89 | 5.07 | 10.32 | 52.33 | 21.98 | 303.94 | 0.4458 | -674.7 | -710.3 | |
| 3.91 | -7.00 | 2.16 | -7.00 | 10.19 | 52.13 | 21.78 | 303.94 | 0.4421 | -1027.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 10.09 | 49.18 | 18.83 | 307.66 | 0.4032 | 730.0 | 567.3 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 10.12 | 47.89 | 17.54 | 309.70 | 0.3873 | -720.0 | -575.4 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 17.58 | 46.97 | 16.62 | 323.64 | 0.4619 | -691.0 | -533.0 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 15.13 | 46.09 | 15.74 | 321.64 | 0.4237 | -716.0 | -553.1 | |
| 44.28 | 271.64 | 23.05 | 141.39 | 5.48 | 45.31 | 14.96 | 303.20 | 0.3085 | -1350.1 | -437.2 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 7.73 | 41.80 | 11.46 | 316.56 | 0.2876 | -799.0 | -633.7 | |
| 0.00 | 1.61 | 0.00 | 0.83 | 6.83 | 41.38 | 11.04 | 315.35 | 0.2717 | -817.0 | -601.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 2.80 | 39.48 | 9.14 | 307.91 | 0.2020 | 847.0 | 634.4 | |
| 0.00 | 2.72 | 0.00 | 1.38 | 5.64 | 36.56 | 6.22 | 328.07 | 0.2047 | 780.0 | 625.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 12.61 | 36.15 | 5.80 | 341.29 | 0.3090 | 765.0 | 616.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 11.21 | 33.07 | 2.73 | 350.12 | 0.2735 | 875.0 | 697.7 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 16.68 | 32.50 | 2.15 | 354.27 | 0.3622 | 662.0 | 519.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
