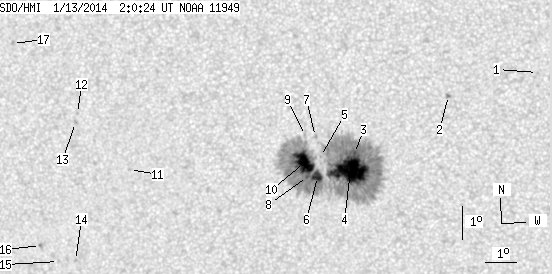

SDO HMI 2014-01-13 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.67 | 472.79 | 45.33 | 250.46 | -16.46 | 13.26 | -17.09 | 127.20 | 0.3551 | 1032.6 | 398.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.43 | -13.72 | 20.00 | -10.35 | 133.24 | 0.2406 | 805.0 | 641.6 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -14.37 | 17.20 | -13.14 | 128.60 | 0.2832 | 988.0 | 845.6 | |
| 1.53 | 456.41 | 0.81 | 241.49 | -16.05 | 14.11 | -16.24 | 127.43 | 0.3399 | 1199.1 | 423.6 | |
| 52.19 | -3.00 | 27.54 | -3.00 | -16.56 | 13.94 | -16.41 | 128.37 | 0.3469 | 1397.2 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -16.11 | 13.01 | -17.33 | 125.90 | 0.3549 | 741.0 | 546.8 | |
| 7.73 | -3.00 | 4.11 | -3.00 | -16.71 | 12.86 | -17.49 | 127.08 | 0.3623 | 1196.5 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -15.51 | 12.91 | -17.44 | 124.29 | 0.3511 | 560.0 | 408.1 | |
| 1.10 | -3.00 | 0.59 | -3.00 | -16.71 | 12.54 | -17.81 | 126.59 | 0.3664 | 735.1 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -15.47 | 12.59 | -17.76 | 123.75 | 0.3551 | 517.0 | 392.2 | |
| 23.12 | -3.00 | 12.28 | -3.00 | -16.28 | 12.48 | -17.86 | 125.53 | 0.3634 | 1308.1 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -16.34 | 6.72 | -23.62 | 119.07 | 0.4419 | -807.0 | -588.0 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -14.60 | 5.19 | -25.15 | 114.22 | 0.4529 | -780.0 | -544.8 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -14.87 | 5.09 | -25.25 | 114.69 | 0.4557 | -722.0 | -616.1 | |
| 0.00 | 1.10 | 0.00 | 0.63 | -19.03 | 4.48 | -25.87 | 122.29 | 0.4899 | -816.0 | -684.5 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -19.04 | 3.89 | -26.46 | 121.80 | 0.4976 | -506.0 | -413.0 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -18.53 | 3.34 | -27.00 | 120.43 | 0.5013 | -846.0 | -655.9 | |
| 0.00 | 1.87 | 0.00 | 1.05 | -12.44 | 3.26 | -27.09 | 108.51 | 0.4709 | -800.0 | -698.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
