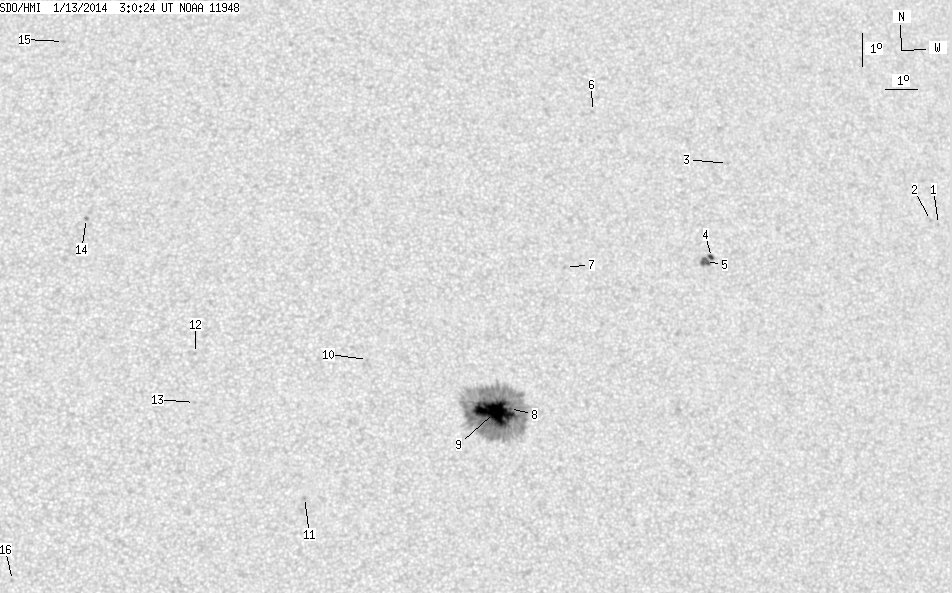

SDO HMI 2014-01-13 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.08 | 290.40 | 28.93 | 152.04 | 5.83 | 45.46 | 15.66 | 303.14 | 0.3224 | -871.5 | -398.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.41 | 11.57 | 60.15 | 30.36 | 298.09 | 0.5634 | -688.0 | -559.5 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 11.69 | 59.89 | 30.09 | 298.48 | 0.5608 | -688.0 | -614.5 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 13.21 | 53.19 | 23.39 | 307.43 | 0.4886 | -562.0 | -456.9 | |
| 1.70 | 9.69 | 0.94 | 5.37 | 10.30 | 52.40 | 22.60 | 303.19 | 0.4537 | -700.2 | -692.7 | |
| 4.08 | -4.00 | 2.26 | -4.00 | 10.18 | 52.19 | 22.40 | 303.19 | 0.4500 | -1010.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 14.71 | 48.93 | 19.13 | 315.50 | 0.4541 | -639.0 | -414.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 9.88 | 47.71 | 17.91 | 308.65 | 0.3896 | -767.0 | -620.2 | |
| 1.70 | 267.25 | 0.89 | 139.49 | 5.59 | 45.78 | 15.98 | 301.78 | 0.3238 | -878.5 | -420.4 | |
| 47.60 | -8.00 | 24.84 | -8.00 | 5.46 | 45.31 | 15.51 | 302.20 | 0.3161 | -1327.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 6.98 | 41.48 | 11.68 | 314.14 | 0.2813 | -665.0 | -550.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 2.83 | 39.51 | 9.71 | 306.37 | 0.2102 | 829.0 | 615.4 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 7.10 | 36.31 | 6.51 | 330.43 | 0.2289 | 795.0 | 569.7 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 5.63 | 36.26 | 6.46 | 327.10 | 0.2070 | 758.0 | 579.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 11.18 | 33.10 | 3.30 | 348.08 | 0.2749 | 898.0 | 708.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 16.68 | 32.48 | 2.68 | 352.89 | 0.3632 | 793.0 | 660.5 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 0.32 | 30.84 | 1.04 | 347.42 | 0.0839 | 958.0 | 743.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
