SDO HMI 2014-01-13 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 18.03 | 0.63 | 9.59 | 16.65 | 24.45 | -4.81 | 12.41 | 0.3707 | 242.4 | 301.0 | |
|
previous
or next observation for the same group /

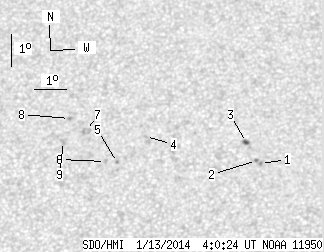

back to the solar disc SDO HMI 2014-01-13 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.81 | 15.98 | 28.15 | -1.10 | 3.05 | 0.3496 | -983.0 | -787.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 16.07 | 28.03 | -1.23 | 3.37 | 0.3513 | -922.0 | -692.3 | |
| 1.19 | 2.55 | 0.63 | 1.35 | 16.64 | 27.71 | -1.54 | 4.10 | 0.3609 | -811.3 | -593.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 16.85 | 24.60 | -4.66 | 12.13 | 0.3714 | 709.0 | 589.1 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 16.04 | 23.75 | -5.50 | 14.82 | 0.3618 | 834.0 | 680.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 16.07 | 23.38 | -5.87 | 15.74 | 0.3639 | 771.0 | 594.3 | |
| 0.00 | 4.68 | 0.00 | 2.50 | 17.06 | 22.76 | -6.49 | 16.50 | 0.3820 | 548.0 | 672.3 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 17.44 | 22.22 | -7.03 | 17.48 | 0.3905 | 864.0 | 682.0 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 16.72 | 22.06 | -7.19 | 18.46 | 0.3802 | 782.0 | 639.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
