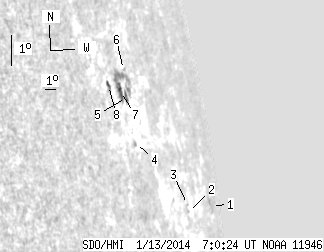

SDO HMI 2014-01-13 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.85 | 39.29 | 15.02 | 86.82 | 8.37 | 103.62 | 76.00 | 279.73 | 0.9711 | 330.0 | 118.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.19 | 0.00 | 26.50 | 6.79 | 111.31 | 83.70 | 277.28 | 0.9955 | 223.0 | 113.2 | |
| 0.00 | 0.68 | 0.00 | 1.82 | 6.23 | 106.28 | 78.66 | 277.19 | 0.9833 | -226.0 | -214.8 | |
| 0.00 | 0.77 | 0.00 | 2.03 | 6.43 | 106.24 | 78.62 | 277.41 | 0.9832 | -293.0 | -228.2 | |
| 0.00 | 1.87 | 0.00 | 3.31 | 7.83 | 100.53 | 72.92 | 279.48 | 0.9613 | 53.0 | 104.7 | |
| 1.87 | 26.27 | 3.29 | 45.73 | 9.20 | 100.29 | 72.67 | 280.92 | 0.9610 | 323.0 | 164.4 | |
| 0.00 | 0.85 | 0.00 | 1.53 | 10.06 | 100.46 | 72.85 | 281.79 | 0.9623 | -135.0 | -164.3 | |
| 5.02 | -5.00 | 8.57 | -5.00 | 9.34 | 99.76 | 72.14 | 281.14 | 0.9585 | 561.8 | 999999 | |
| 1.96 | 3.66 | 3.16 | 5.90 | 9.44 | 98.66 | 71.04 | 281.40 | 0.9531 | 350.0 | 266.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
