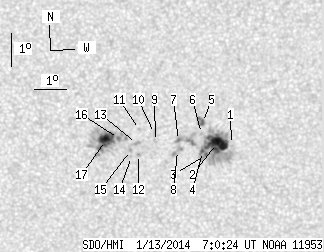

SDO HMI 2014-01-13 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.50 | 168.29 | 23.21 | 85.87 | -17.97 | 30.09 | 2.47 | 189.79 | 0.2411 | 127.6 | 87.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.78 | -18.04 | 31.98 | 4.36 | 197.02 | 0.2484 | 223.0 | 360.7 | |
| 24.83 | 74.83 | 12.68 | 38.24 | -18.01 | 31.52 | 3.90 | 195.32 | 0.2458 | 1281.0 | 467.6 | |
| 0.94 | -2.00 | 0.48 | -2.00 | -18.35 | 31.21 | 3.59 | 193.83 | 0.2499 | 971.6 | 999999 | |
| 1.02 | -2.00 | 0.52 | -2.00 | -18.25 | 31.09 | 3.47 | 193.46 | 0.2480 | 994.2 | 999999 | |
| 1.53 | 6.04 | 0.78 | 3.07 | -17.38 | 31.07 | 3.45 | 194.32 | 0.2334 | 1131.2 | 795.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -17.71 | 31.04 | 3.43 | 193.86 | 0.2388 | 1071.0 | 839.7 | |
| 0.51 | 12.75 | 0.26 | 6.51 | -17.92 | 30.34 | 2.72 | 190.89 | 0.2398 | 855.2 | 708.6 | |
| 0.00 | 5.87 | 0.00 | 3.00 | -18.23 | 30.31 | 2.69 | 190.54 | 0.2447 | 650.0 | 549.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -17.95 | 29.62 | 2.00 | 188.06 | 0.2383 | -773.0 | -675.7 | |
| 0.00 | 2.81 | 0.00 | 1.43 | -17.71 | 29.59 | 1.97 | 188.08 | 0.2341 | -855.0 | -512.6 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -17.59 | 29.12 | 1.51 | 186.25 | 0.2311 | -927.0 | -644.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -18.35 | 29.10 | 1.48 | 185.79 | 0.2439 | -1012.0 | -856.1 | |
| 0.00 | 2.81 | 0.00 | 1.43 | -18.02 | 29.03 | 1.42 | 185.69 | 0.2381 | -964.0 | -788.5 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -18.41 | 28.88 | 1.26 | 184.93 | 0.2446 | -624.0 | -481.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -18.23 | 28.85 | 1.23 | 184.87 | 0.2415 | -1009.0 | -775.5 | |
| 0.68 | 54.84 | 0.35 | 27.94 | -17.86 | 28.48 | 0.86 | 183.49 | 0.2348 | -1085.6 | -547.8 | |
| 15.99 | -16.00 | 8.14 | -16.00 | -17.92 | 28.07 | 0.45 | 181.84 | 0.2355 | -1210.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
