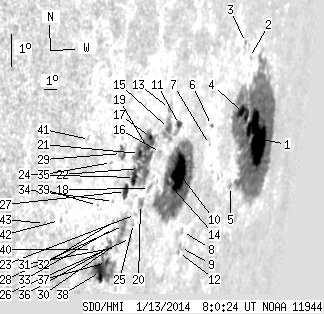

SDO HMI 2014-01-13 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.79 | 757.01 | 252.22 | 1331.25 | -9.95 | 101.03 | 73.96 | 260.84 | 0.9571 | 316.3 | 115.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.38 | 370.48 | 126.64 | 817.60 | -9.23 | 104.77 | 77.70 | 261.51 | 0.9761 | 266.5 | 97.7 | |
| 0.00 | 0.60 | 0.00 | 1.14 | -6.98 | 102.50 | 75.42 | 263.93 | 0.9672 | 393.0 | 421.6 | |
| 0.43 | 1.02 | 0.79 | 1.88 | -6.58 | 101.85 | 74.77 | 264.38 | 0.9644 | 204.6 | 58.0 | |
| 12.33 | -1.00 | 23.76 | -1.00 | -8.64 | 102.66 | 75.58 | 262.21 | 0.9676 | 731.0 | 999999 | |
| 0.60 | 1.70 | 1.13 | 3.23 | -10.84 | 102.54 | 75.47 | 259.94 | 0.9668 | 421.3 | 390.8 | |
| 0.51 | 1.28 | 0.82 | 2.04 | -9.23 | 99.46 | 72.38 | 261.71 | 0.9521 | 380.8 | 315.2 | |
| 0.00 | 0.60 | 0.00 | 0.96 | -9.79 | 99.55 | 72.48 | 261.11 | 0.9525 | 320.0 | 327.7 | |
| 0.00 | 1.79 | 0.00 | 2.71 | -12.48 | 98.53 | 71.45 | 258.29 | 0.9468 | -115.0 | -192.6 | |
| 0.00 | 1.87 | 0.00 | 2.86 | -12.96 | 98.66 | 71.58 | 257.79 | 0.9475 | -436.0 | -370.6 | |
| 30.02 | 170.74 | 42.86 | 242.38 | -10.83 | 97.26 | 70.19 | 260.06 | 0.9396 | 592.1 | 156.5 | |
| 2.38 | 7.14 | 3.30 | 9.87 | -9.41 | 96.57 | 69.49 | 261.59 | 0.9356 | 554.5 | 449.7 | |
| 0.00 | 1.02 | 0.00 | 1.55 | -13.11 | 98.57 | 71.50 | 257.62 | 0.9470 | -509.0 | -485.4 | |
| 0.00 | 3.32 | 0.00 | 4.41 | -9.00 | 95.55 | 68.48 | 262.05 | 0.9294 | -114.0 | 60.9 | |
| 1.11 | -10.00 | 1.52 | -10.00 | -11.15 | 96.46 | 69.39 | 259.72 | 0.9349 | 866.3 | 999999 | |
| 3.32 | 15.48 | 4.44 | 20.67 | -9.59 | 95.71 | 68.64 | 261.42 | 0.9303 | 648.5 | 550.1 | |
| 0.00 | 1.79 | 0.00 | 2.35 | -10.33 | 95.38 | 68.31 | 260.62 | 0.9282 | 474.0 | 391.5 | |
| 1.28 | 73.13 | 1.61 | 91.33 | -9.95 | 94.41 | 67.34 | 261.04 | 0.9218 | 464.1 | 123.2 | |
| 0.00 | 3.23 | 0.00 | 4.18 | -11.43 | 95.01 | 67.94 | 259.43 | 0.9258 | 289.0 | 227.0 | |
| 3.74 | -17.00 | 4.70 | -17.00 | -10.25 | 94.30 | 67.23 | 260.71 | 0.9211 | 370.5 | 999999 | |
| 0.00 | 6.97 | 0.00 | 8.87 | -11.95 | 94.55 | 67.48 | 258.87 | 0.9227 | -44.0 | -10.2 | |
| 2.13 | -17.00 | 2.63 | -17.00 | -10.47 | 93.78 | 66.70 | 260.48 | 0.9175 | -467.0 | 999999 | |
| 1.28 | -17.00 | 1.59 | -17.00 | -10.91 | 93.97 | 66.90 | 260.00 | 0.9188 | -62.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.39 | -12.26 | 94.32 | 67.24 | 258.52 | 0.9212 | -190.0 | -146.2 | |
| 6.04 | -17.00 | 7.42 | -17.00 | -11.19 | 93.72 | 66.64 | 259.69 | 0.9171 | -462.6 | 999999 | |
| 0.00 | 0.85 | 0.00 | 1.07 | -12.54 | 94.30 | 67.23 | 258.23 | 0.9211 | -231.0 | -207.7 | |
| 0.00 | 2.38 | 0.00 | 3.00 | -12.99 | 94.31 | 67.24 | 257.73 | 0.9212 | -193.0 | -39.2 | |
| 5.27 | 7.40 | 6.37 | 8.93 | -11.65 | 93.24 | 66.17 | 259.19 | 0.9139 | -409.5 | -243.3 | |
| 3.40 | 15.14 | 4.17 | 18.50 | -12.65 | 93.58 | 66.51 | 258.10 | 0.9163 | 338.5 | 303.3 | |
| 0.00 | 6.97 | 0.00 | 8.19 | -10.56 | 92.47 | 65.40 | 260.38 | 0.9084 | -664.0 | -457.0 | |
| 0.77 | -28.00 | 0.94 | -28.00 | -13.13 | 93.53 | 66.46 | 257.56 | 0.9160 | 348.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.34 | -13.32 | 93.41 | 66.33 | 257.35 | 0.9151 | 344.0 | 291.3 | |
| 0.00 | 0.94 | 0.00 | 1.11 | -12.58 | 92.79 | 65.72 | 258.16 | 0.9108 | -274.0 | -198.1 | |
| 0.00 | 1.02 | 0.00 | 1.22 | -12.78 | 92.90 | 65.82 | 257.94 | 0.9115 | -269.0 | -155.4 | |
| 0.00 | 1.02 | 0.00 | 1.20 | -12.00 | 92.51 | 65.44 | 258.80 | 0.9087 | -225.0 | -214.5 | |
| 0.00 | 1.02 | 0.00 | 1.17 | -10.87 | 91.88 | 64.80 | 260.04 | 0.9040 | -611.0 | -511.1 | |
| 1.19 | 52.04 | 1.42 | 61.89 | -13.40 | 92.77 | 65.69 | 257.26 | 0.9107 | -297.6 | 189.9 | |
| 1.62 | -36.00 | 1.93 | -36.00 | -13.81 | 92.91 | 65.84 | 256.81 | 0.9118 | -90.4 | 999999 | |
| 11.99 | -36.00 | 14.18 | -36.00 | -14.10 | 92.63 | 65.55 | 256.48 | 0.9099 | 783.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.67 | -12.19 | 91.45 | 64.38 | 258.57 | 0.9010 | -436.0 | -400.1 | |
| 0.00 | 1.62 | 0.00 | 1.85 | -13.50 | 91.72 | 64.65 | 257.12 | 0.9033 | -353.0 | -268.8 | |
| 0.00 | 0.43 | 0.00 | 0.46 | -10.30 | 90.14 | 63.06 | 260.66 | 0.8909 | -350.0 | -424.4 | |
| 0.00 | 0.60 | 0.00 | 0.62 | -12.79 | 89.14 | 62.07 | 257.82 | 0.8834 | -277.0 | -308.7 | |
| 0.00 | 0.60 | 0.00 | 0.61 | -12.94 | 88.24 | 61.17 | 257.62 | 0.8761 | -328.0 | -305.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
